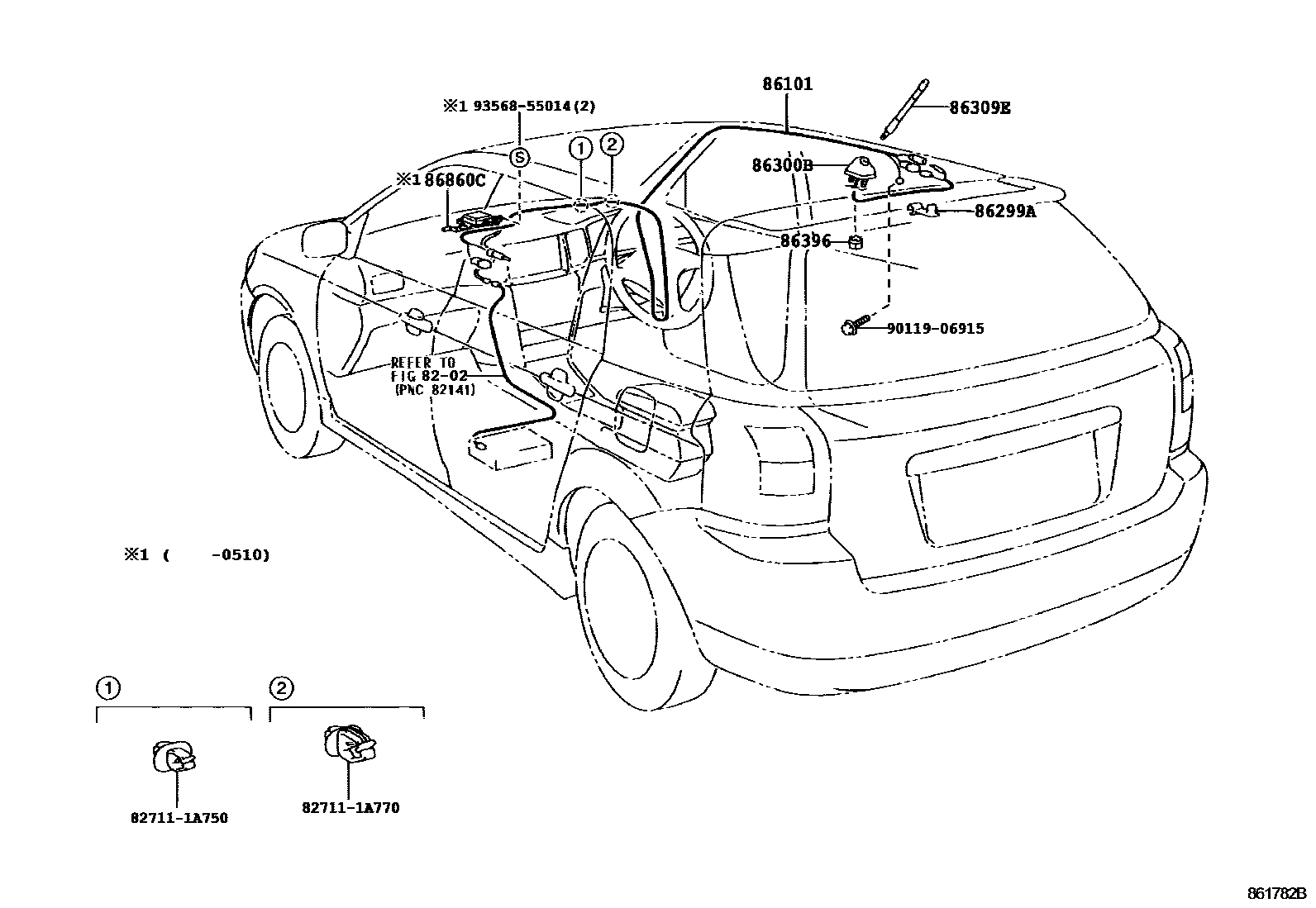

ANTENNA

8202

86101CORD SUB-ASSY, ANTENNA

main86101-12300iCDE120,ZZE12#..JPP200209-200210

sub86101-12301

main86101-12301iZZE12#..JPP200210-200405

86299ACLIP, RADIO TO ANTENNA WIRE

main86299-12010iCDE120..JPP200209-200405

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12750iNDE120,ZZE12#..JPP200209-200405

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-13010iZZE12#..JPP200209-200405

86396NUT, ANTENNA

main86396-12030iCDE120..JPP200209-200405

86860CANTENNA ASSY, NAVIGATION

main86860-12030iNDE120,ZZE12#..JPP..SOL200405-200510

main86860-13030iCDE120..JPP200209-200405

sub86860-12050

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

9356855014

main93568-55014

11 parts on this diagram · 1 diagram in section
