AIR BAG

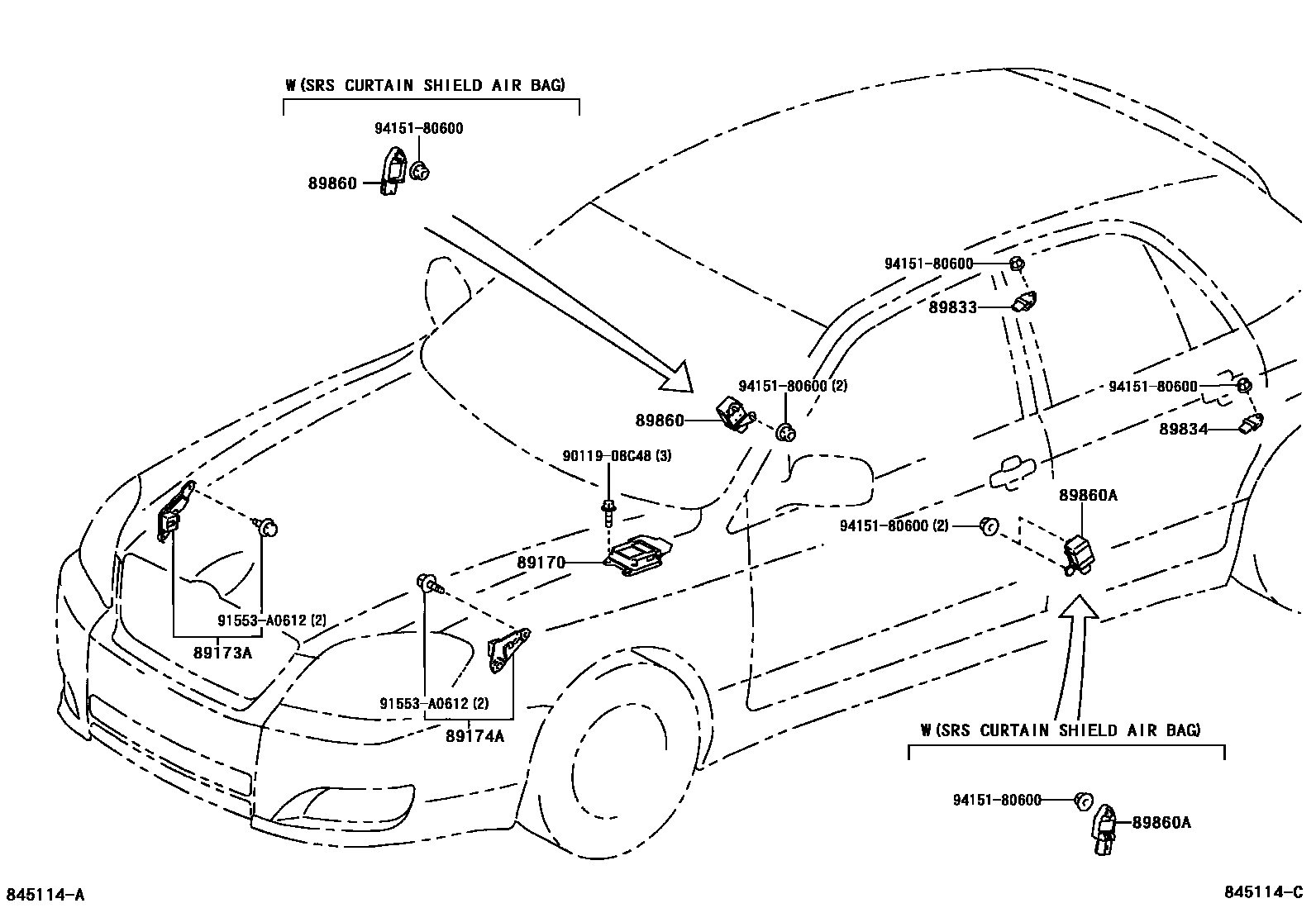

Parts diagram
89170SENSOR ASSY, AIRBAG
main89170-02290i200209-200405
W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)
sub89170-02M00
main89170-02380i200405-200604
sub89170-02381
main89170-02381i200605
main89170-02400i200405-200604
W(SRS CURTAIN SHIELD AIR BAG)
sub89170-02401
main89170-02401i200605
W(SRS CURTAIN SHIELD AIR BAG)
main89170-02490i200405-200604
sub89170-02491
main89170-02491i200605
main89170-02510i200405-200604
W(SRS CURTAIN SHIELD AIR BAG)
sub89170-02511
main89170-02511i200605
W(SRS CURTAIN SHIELD AIR BAG)
main89170-13040i200209-200405
W(SRS SIDE AIR BAG)
main89170-13080i200209-200405
89173ASENSOR, AIRBAG, FRONT RH
main89173-09150i200405
main89173-69125i¥23,300200209-200212
sub89173-69126¥13,300
main89173-69126i¥13,300200212-200405
89174ASENSOR, AIRBAG, FRONT LH
main89173-09160i200405
sub89173-09147
main89174-69125i¥23,300200209-200212
sub89174-69126¥13,300
main89174-69126i¥13,300200212-200405
89833SENSOR, AIRBAG, REAR RH
main89831-02010i¥13,200200209-200405
main89831-02050i¥13,300200405
89834SENSOR, AIRBAG, REAR LH
main89831-02010i¥13,200200209-200405
main89831-02050i¥13,300200405
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-02020i¥13,200200405
main89831-05010i¥71,300200209-200405
W(SRS CURTAIN SHIELD AIR BAG)
main89860-13020i¥24,900200209-200405
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89830-13020i¥24,700200209-200405
main89831-02020i¥13,200200405
main89831-05010i¥71,300200209-200405
W(SRS CURTAIN SHIELD AIR BAG)
9011908C48
main90119-08C48¥90
91553A0612
main91553-A0612¥60
9415180600
main94151-80600¥60

10 parts on this diagram · 2 diagrams in section
