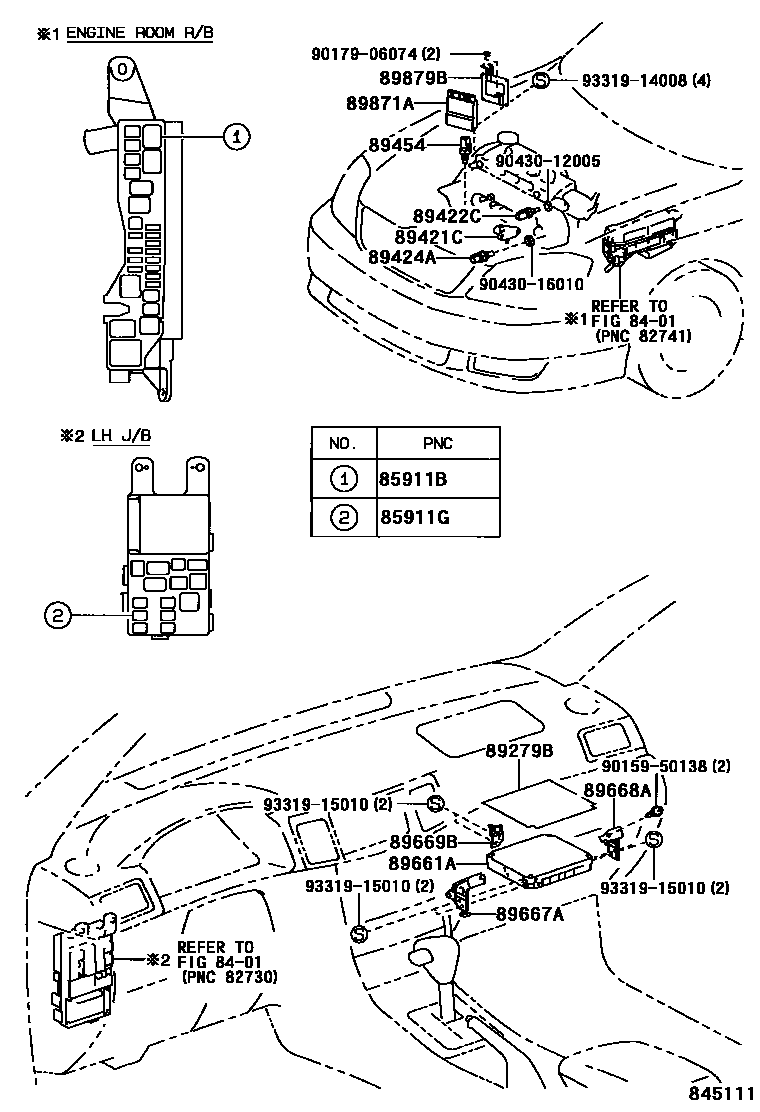

ELECTRONIC CONTROLED DIESEL (ECD)
8401
85911BRELAY, COMPUTER (FOR DIESEL TURBO)
sub90987-02027
85911GRELAY, INJECTOR DRIVER
sub90987-02027
89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89454SENSOR, FUEL TEMPERATURE
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
9015950138
main90159-50138
9017906074
main90179-06074
9043012005
main90430-12005
9043016010
main90430-16010
9331914008
main93319-14008
9331915010
main93319-15010
20 parts on this diagram · 2 diagrams in section
