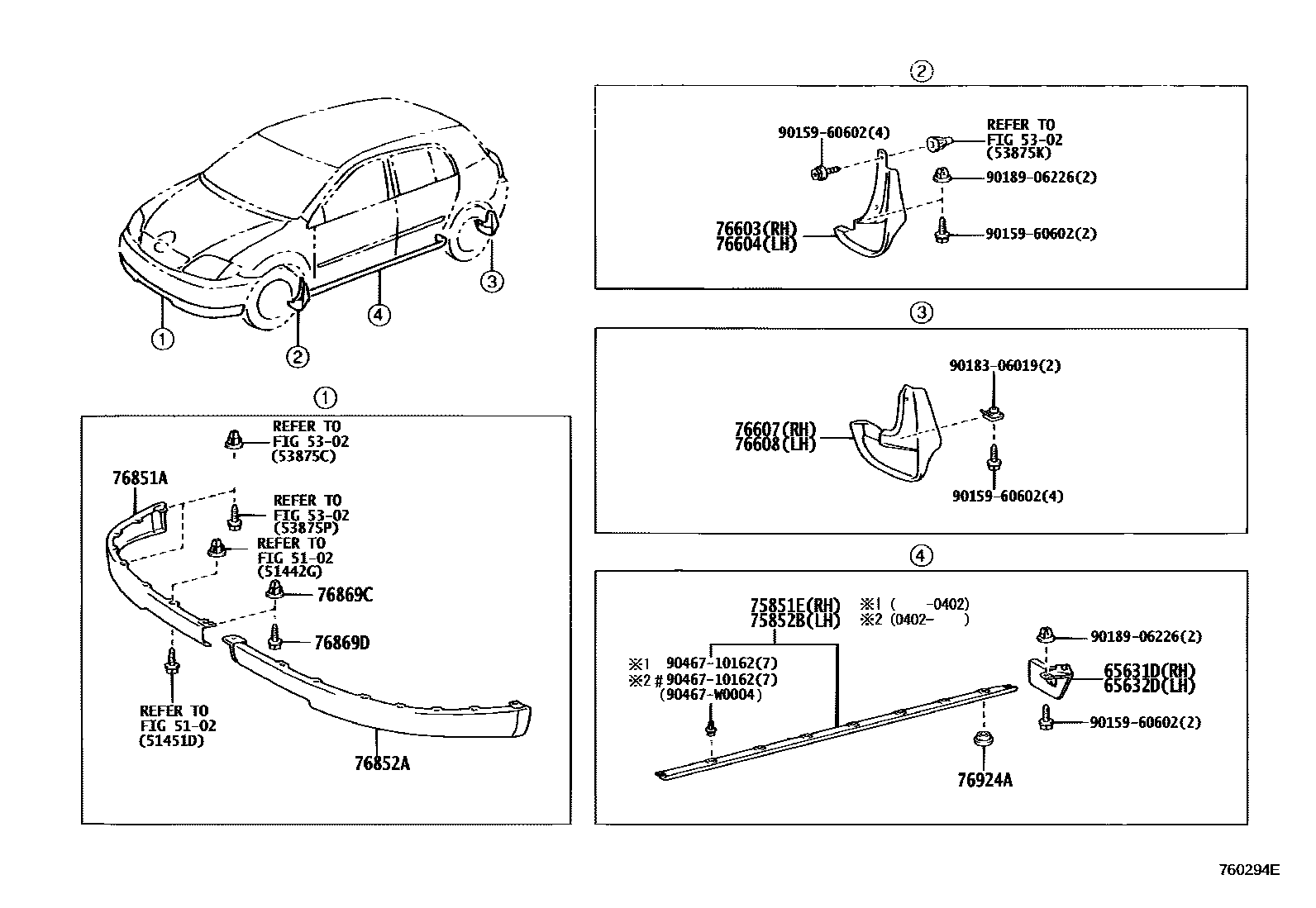

MUDGUARD & SPOILER
5102
5302
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75851EMOULDING, BODY ROCKER PANEL, RH
75852BMOULDING, BODY ROCKER PANEL, LH
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
NO PAINT REQ.
NO PAINT REQ.
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
NO PAINT REQ.
NO PAINT REQ.
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76869CGROMMET, SCREW, NO.1
76869DSCREW, NO.2
76924ARETAINER, SIDE MUDGUARD, NO.2
W(SIDE MUD GUARD)
9015960602
9018306019
9018906226
9046710162
90467W0004
main90467-W0004
20 parts on this diagram · 2 diagrams in section
