SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
67771CRETAINER, FRONT PILLAR COVER
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.,BLACK(LESS COLOR)
SUPER WHITE 2,040
GRAY M.M.,1C3
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
DK.BLUE,8Q4
LT.BLUE M.M.,8S1
BLUE ME.,8P1
75732AMOULDING, FRONT DOOR, OUTSIDE LH
NO PAINT REQ.,BLACK(LESS COLOR)
SUPER WHITE 2,040
GRAY M.M.,1C3
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
DK.BLUE,8Q4
LT.BLUE M.M.,8S1
BLUE ME.,8P1
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
NO PAINT REQ.,BLACK(LESS COLOR)
SUPER WHITE 2,040
GRAY M.M.,1C3
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
DK.BLUE,8Q4
LT.BLUE M.M.,8S1
BLUE ME.,8P1
75742MOULDING, REAR DOOR, OUTSIDE LH
NO PAINT REQ.,BLACK(LESS COLOR)
SUPER WHITE 2,040
GRAY M.M.,1C3
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
DK.BLUE,8Q4
LT.BLUE M.M.,8S1
BLUE ME.,8P1
9046710162
main90467-10162

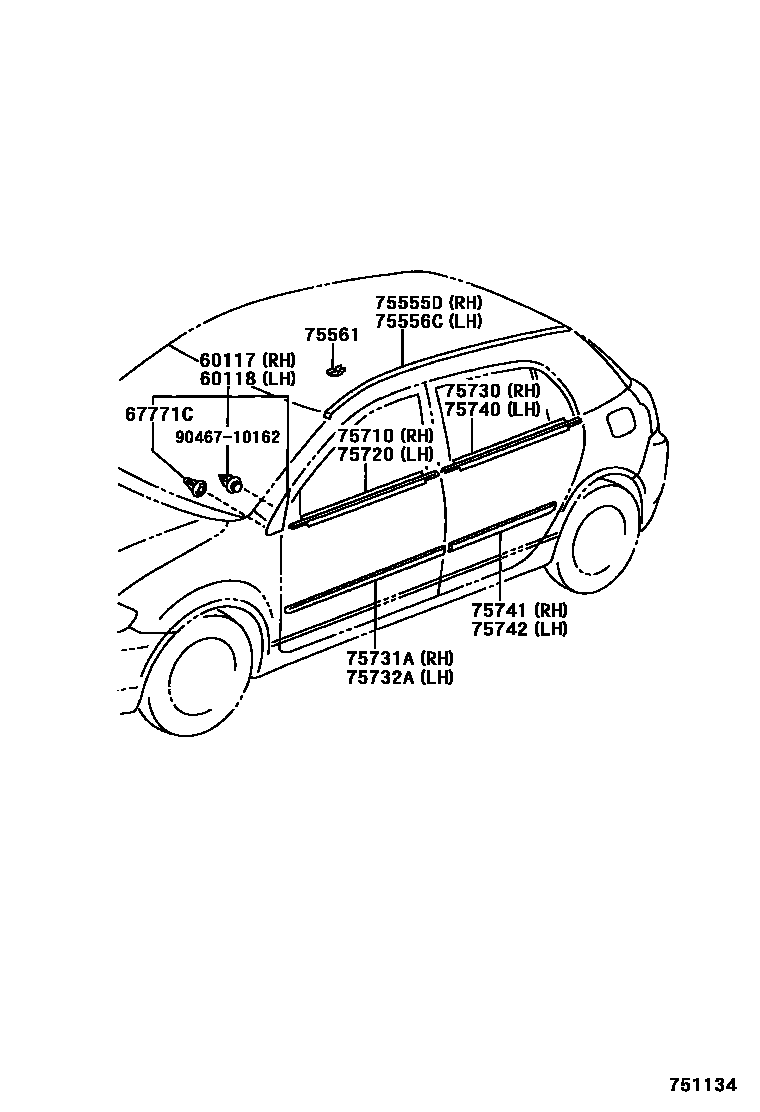

15 parts on this diagram · 1 diagram in section
