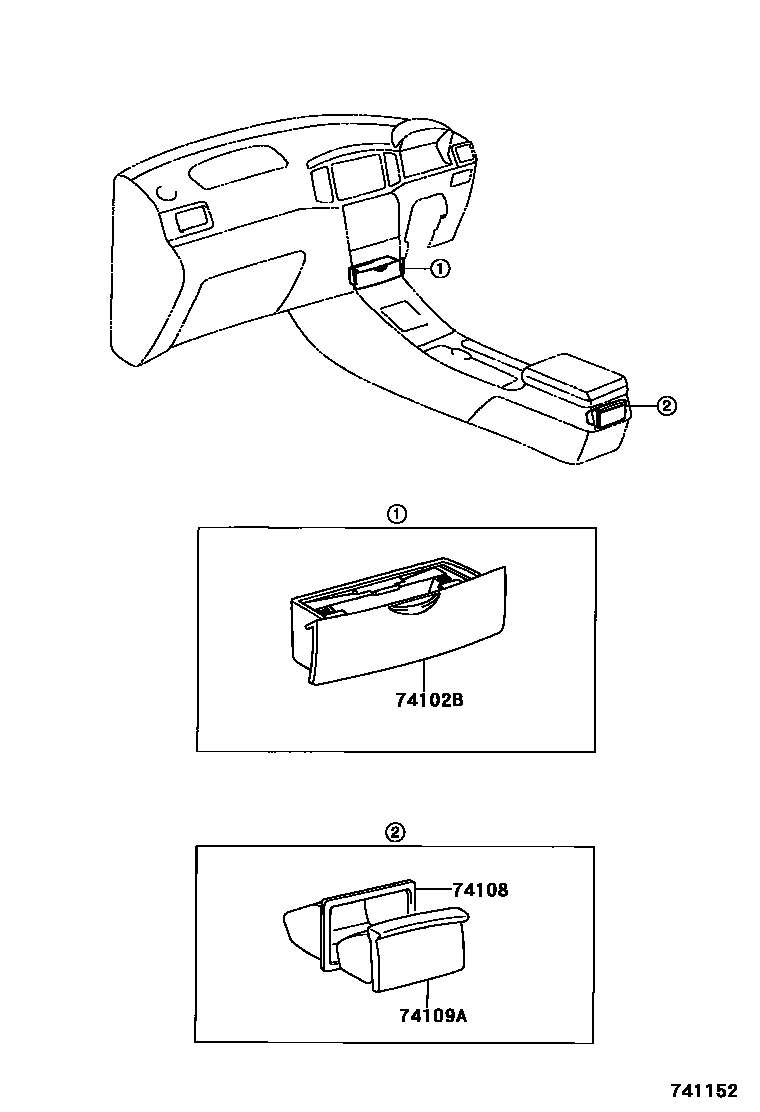

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12380-B0iCDE120,ZZE12#..JPP..TERRA200209-200405

DARK GRAY,TRIM1#,8#

sub74102-12380

main74102-12380-B0iNDE120,ZZE12#..JPP..TERRA200405

DARK GRAY,TRIM1#

sub74102-12380

main74102-12390-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

main74102-12390-B0iCDE120,ZZE12#..JPP..SOL200209-200405

GRAPHIC CARBON,TRIM1#

main74102-12390-B2iNDE120,ZZE12#..JPP..TERRA200405-200508

DARK GRAY ME.22GY34,TRIM1#

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-28010iCDE120,ZZE12#..JPP200209-200405

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-28010-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

sub74109-28010

main74109-28010-B3iCDE120,ZZE12#..JPP200209-200405

DK.GRAY,TRIM1#

sub74109-28010

main74109-28010-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

sub74109-28010

3 parts on this diagram · 1 diagram in section
