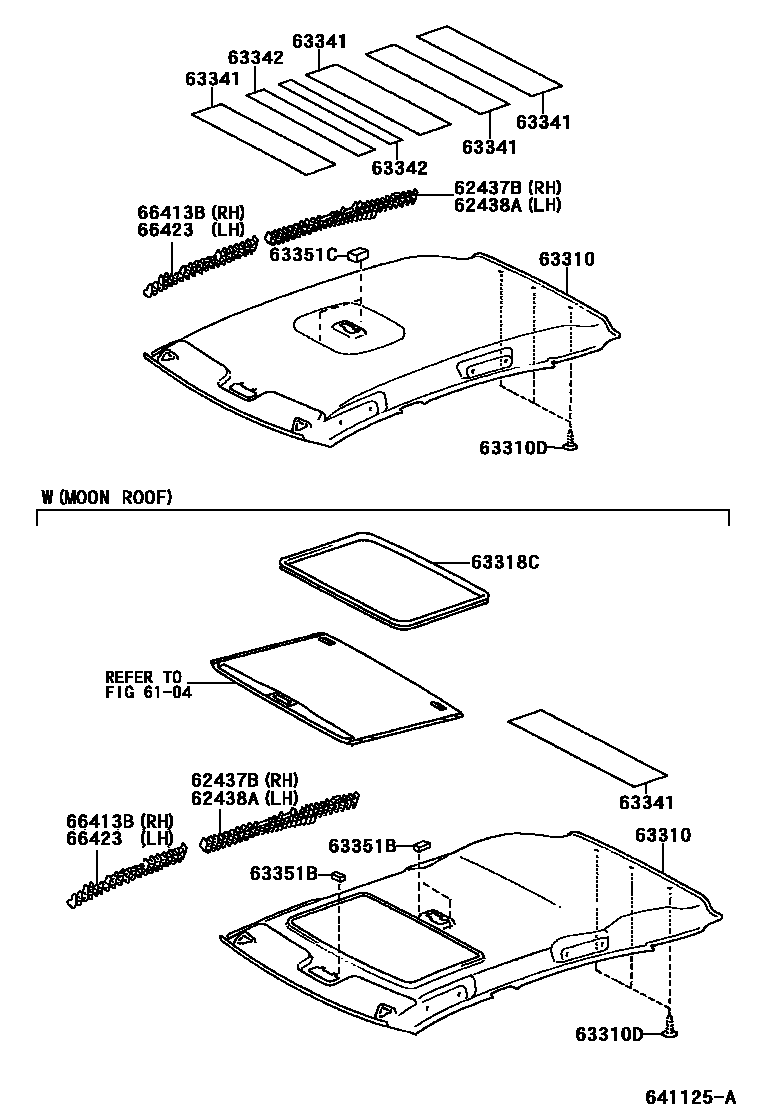

ROOF HEADLINING & SILENCER PAD
6104
62437BPAD, ROOF SIDE RAIL, REAR RH
62438APAD, ROOF SIDE RAIL, REAR LH
63310HEADLINING ASSY, ROOF
W(MOON ROOF),LT.GRAY,TRIM1#,8#
sub63310-13670
W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#
sub63310-02501
W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8#
sub63310-02501
W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#
sub63310-02501
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#,8#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),LT.GRAY,TRIM1#,8#
W(MOON ROOF),LT.GRAY,TRIM1#
63310DCLIP, ROOF HEADLINING
63318CMOULDING, SUN ROOF OPENING TRIM
L=2185,IVORY,TRIM0#
L=2185,LT.GRAY,TRIM1#
L=2185,LT.GRAY,TRIM1#,8#
63341PAD, ROOF SILENCER, NO.1
W(MOON ROOF)
63342PAD, ROOF SILENCER, NO.2
63351BPAD, ROOF HEADLINING
63351CPAD, ROOF HEADLINING
66413BSPACER, SIDE RAIL, FRONT RH
66423SPACER, SIDE RAIL, FRONT LH
12 parts on this diagram · 2 diagrams in section
