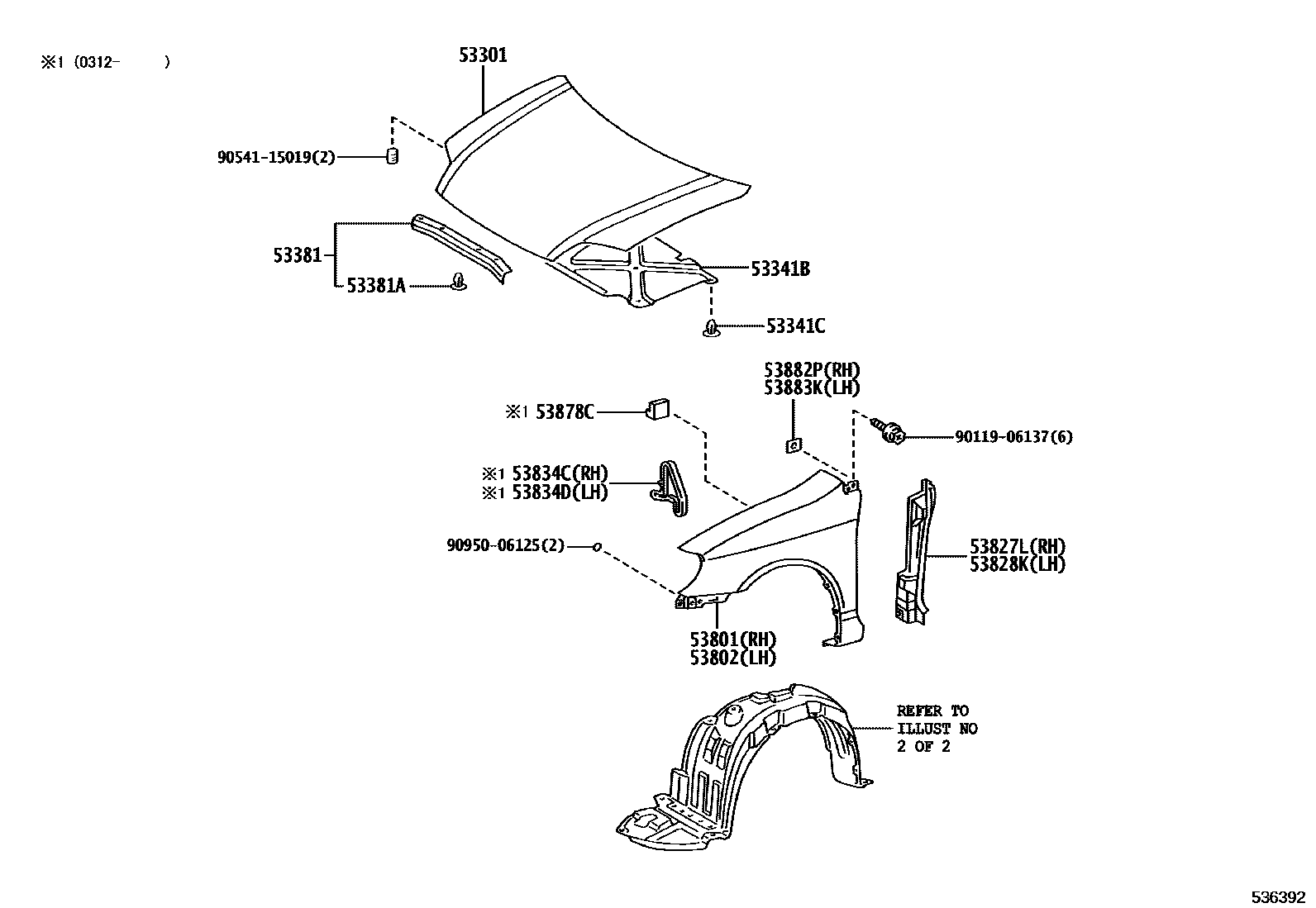

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-13060iCDE120,ZZE12#..JPP¥35,900200209-200405

53341BINSULATOR, HOOD

main53341-13040iCDE120,ZZE12#..JPP¥13,300200209-200304

sub53341-13041¥13,300

main53341-13041iCDE120,ZZE12#..JPP¥13,300200304-200405

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iCDE120,ZZE12#..JPP¥260200209-200405

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-13030iCDE120,ZZE12#..JPP¥1,080200209-200405

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCDE120,ZZE12#..JPP¥100200209-200405

53801FENDER SUB-ASSY, FRONT RH

main53811-13090iCDE120,ZZE12#..JPP¥31,800200209-200405

53802FENDER SUB-ASSY, FRONT LH

main53812-13080iCDE120,ZZE12#..JPP¥31,800200209-200405

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12050iCDE120,ZZE12#..JPP¥2,420200209-200405

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12050iCDE120,ZZE12#..JPP¥2,420200209-200405

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-12120iCDE120,ZZE12#..JPP¥1,340200312-200405

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-12120iCDE120,ZZE12#..JPP¥1,340200312-200405

53878CSPACER, FRONT FENDER

main53878-12010iCDE120,ZZE12#..JPP¥510200312-200405

53882PSEAL, FRONT FENDER, RH

main53882-16030iCDE120,ZZE12#..JPP¥60200209-200405

53883KSEAL, FRONT FENDER, LH

main53882-16030iCDE120,ZZE12#..JPP¥60200209-200405

9011906137

main90119-06137¥70

9054115019

main90541-15019¥200

9095006125

main90950-06125¥130

17 parts on this diagram · 2 diagrams in section
