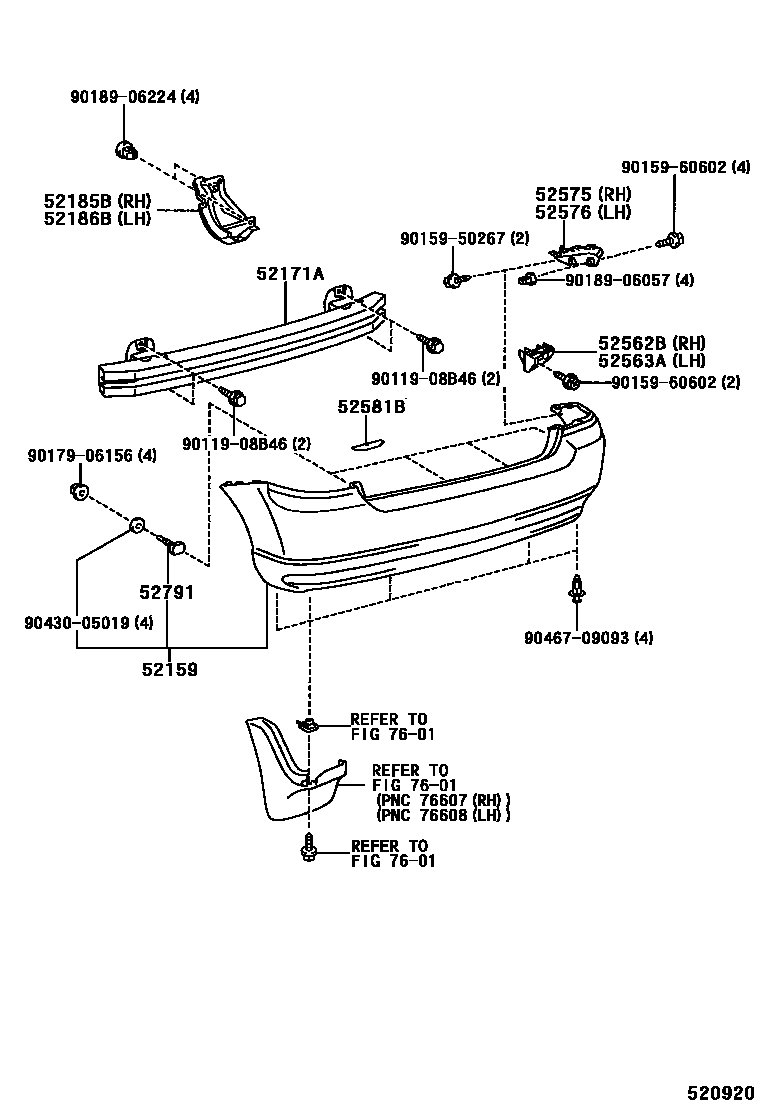

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-13907iCDE120,ZZE12#..JPP200209-200405

PAINT REQ.

main52159-13908iNDE120,ZZE12#..JPP..TERRA200405-200510

PAINT REQ.,W(BUMPER SPOILER)

main52159-13913iNDE120,ZZE12#..JPP200405-200610

PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02060iCDE120,ZZE12#..JPP200209-200405

sub52023-12210¥24,200

main52023-12210iNDE120,ZZE12#..JPP¥24,200200405-200610

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-13080iCDE120,ZZE12#..JPP¥1,260200209-200405

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-13040iCDE120,ZZE12#..JPP¥1,260200209-200405

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-13030iCDE120,ZZE12#..JPP¥1,360200209-200610

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-13020iCDE120,ZZE12#..JPP¥1,360200209-200610

52575RETAINER, REAR BUMPER SIDE, RH

main52575-13030iCDE120,ZZE12#..JPP¥2,080200209-200405

main52575-13050iNDE120,ZZE12#..JPP¥2,410200405-200610

52576RETAINER, REAR BUMPER SIDE, LH

main52576-13030iCDE120,ZZE12#..JPP¥2,080200209-200405

main52576-13050iNDE120,ZZE12#..JPP¥2,410200405-200610

52581BPROTECTOR, REAR BUMPER

main52581-13030iCDE120,ZZE12#..JPP¥290200209-200610

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iCDE120,ZZE12#..JPP¥120200209-200610

7601

9011908B46

main90119-08B46¥130

9015950267

main90159-50267¥70

9015960602

main90159-60602¥60

9017906156

main90179-06156¥140

9018906057

main90189-06057¥110

9018906224

main90189-06224¥80

9043005019

main90430-05019¥110

9046709093

main90467-09093¥190

19 parts on this diagram · 2 diagrams in section
