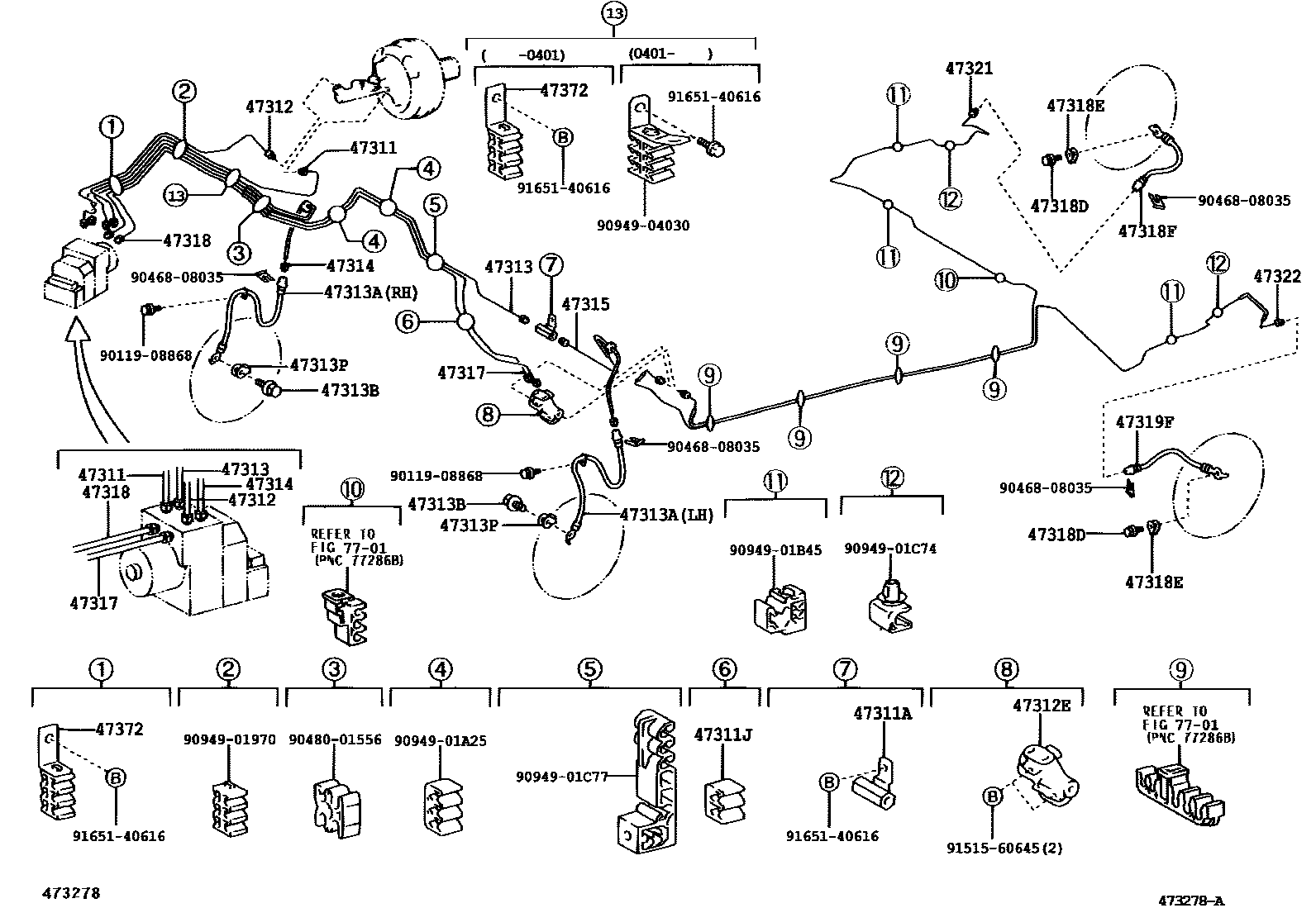

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1W(VSC) 0006 1W(VSC) 0007 1W(VSC) 0008 1W(VSC) 0009 1W/O(VSC) 0010 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-13060iZZE12#..JPP..RHD200209-200405

main47311-13070iZZE12#..JPP..RHD200209-200510

W(VSC)

main47311-13080iCDE120,ZZE12#..JPP..LHD200209-200405

main47311-13090iZZE121..JPP..LHD200209-200405

W(VSC)

main47311-13110iNDE120,ZZE12#..JPP..LHD200405

W(VSC)

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10227iZZE12#..JPP..RHD200209-200405

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-01620iCDE120,ZZE12#..JPP200209-200405

47312TUBE, FRONT BRAKE, NO.2

main47312-13050iZZE12#..JPP..RHD200209-200405

main47312-13060iZZE12#..JPP..RHD200209-200510

W(VSC)

main47312-13070iCDE120,ZZE12#..JPP..LHD200209-200405

main47312-13080iZZE121..JPP..LHD200209-200405

W(VSC)

main47312-13100iNDE120,ZZE12#..JPP..LHD200405

main47312-13110iNDE120,ZZE12#..JPP..LHD200405

W(VSC)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10640iCDE120,ZZE12#..JPP200209-200405

47313TUBE, FRONT BRAKE, NO.3

main47313-13030iZZE12#..JPP..RHD200209-200405

main47313-13040iZZE12#..JPP..RHD200209-200510

W(VSC)

main47313-13050iCDE120,ZZE12#..JPP..LHD200209-200405

main47313-13060iZZE121..JPP..LHD200209-200405

W(VSC)

main47313-13080iNDE120,ZZE12#..JPP..LHD200405

W(VSC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D22iCDE120,ZZE12#..JPP200209-200405

RH

main90947-02D23iNDE120,ZZE12#..JPP200209-200405

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNDE120,ZZE12#..JPP200209-200405

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iCDE120,ZZE12#..JPP200209-200405

47314TUBE, FRONT BRAKE, NO.4

main47314-13050iNDE120,ZZE12#..JPP200209-200405

main47314-13060iZZE121..JPP..RHD200209-200510

W(VSC)

main47314-13080iZZE121..JPP..LHD200209-200405

W(VSC)

47315TUBE, FRONT BRAKE, NO.5

main47315-13080iZZE12#..JPP..RHD200209-200405

main47315-13090iCDE120,ZZE12#..JPP..LHD200209-200405

main47315-13100iNDE120,ZZE12#..JPP..LHD200405

47317TUBE, FRONT BRAKE, NO.7

main47317-13030iZZE12#..JPP..RHD200209-200405

main47317-13040iZZE12#..JPP..RHD200209-200510

W(VSC)

main47317-13050iNDE120,ZZE12#..JPP..LHD200209-200405

main47317-13060iZZE121..JPP..LHD200209-200405

W(VSC)

47318TUBE, FRONT BRAKE, NO.8

main47318-13070iZZE12#..JPP..RHD200209-200405

main47318-13080iZZE12#..JPP..RHD200209-200510

W(VSC)

main47318-13090iCDE120,ZZE12#..JPP..LHD200209-200405

main47318-13100iZZE121..JPP..LHD200209-200405

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10045iNDE120,ZZE12#..JPP200405

main90401-10058iCDE120,ZZE12#..JPP200209-200405

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iCDE120,ZZE12#..JPP200209-200405

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E88iCDE120,ZZE12#..JPP200209-200405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E88iCDE120,ZZE12#..JPP200209-200405

47321TUBE, REAR BRAKE, NO.1

main47321-13170iNDE120,ZZE12#..JPP200209-200405

47322TUBE, REAR BRAKE, NO.2

main47322-13210iCDE120,ZZE12#..JPP200209-200405

47372CLAMP, BRAKE TUBE, NO.2

main47374-12050iCDE120,ZZE12#..JPP200209-200405

7701

9011908868

main90119-08868

9046808035

main90468-08035

9048001556

main90480-01556

9094901970

main90949-01970

9094901A25

main90949-01A25

9094901B45

main90949-01B45

9094901C74

main90949-01C74

9094901C77

main90949-01C77

9094904030

main90949-04030

9151560645

main91515-60645

9165140616

main91651-40616

32 parts on this diagram · 9 diagrams in section
