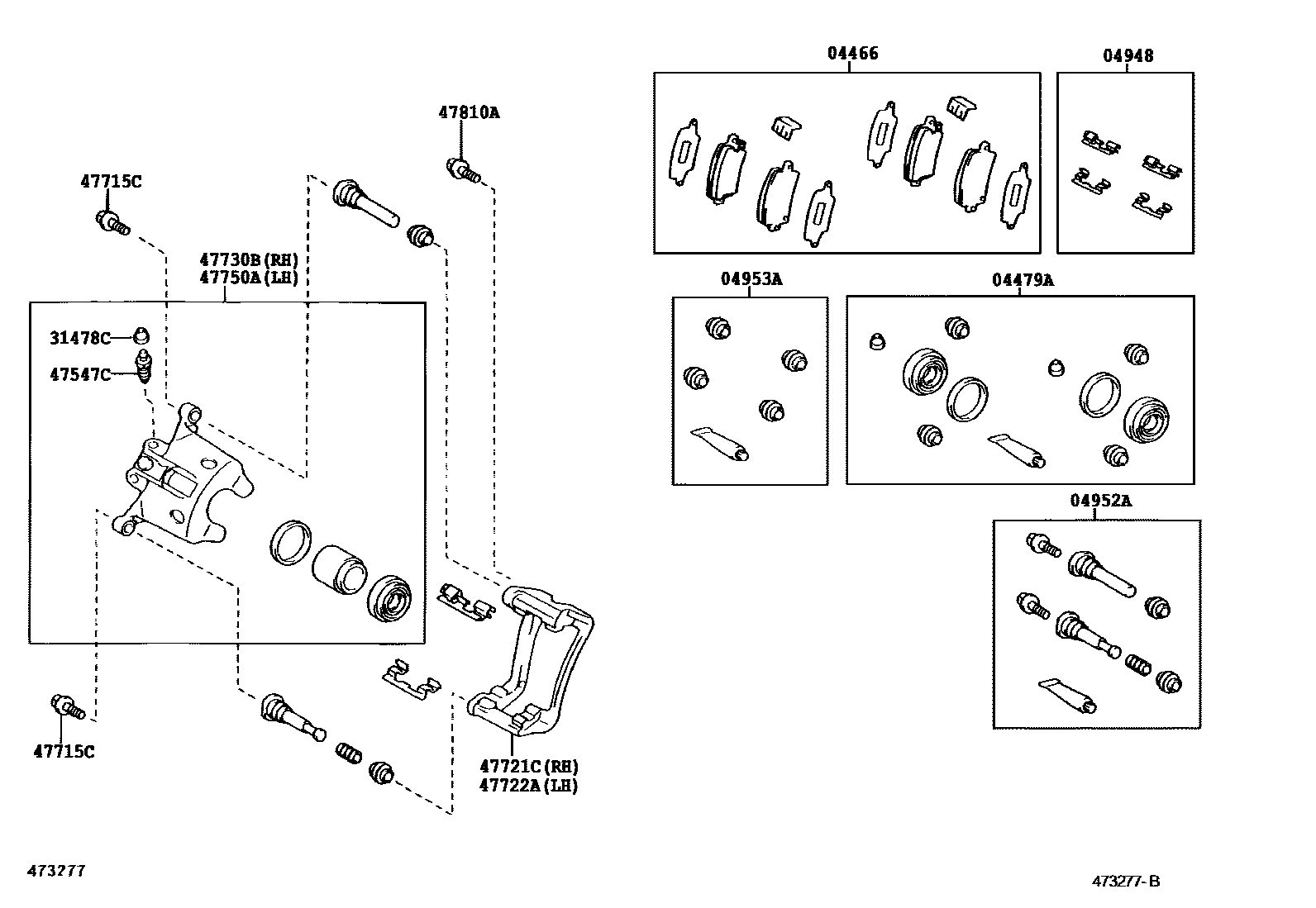

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02070iNDE120,ZZE12#..JPP200209-200610

MARK TRW FER 4088F

sub04466-02160

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02090iCDE120,ZZE12#..JPP200209-200405

04948FITTING KIT, DISC BRAKE, REAR

main04948-02030iCDE120,ZZE12#..JPP200209-200405

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02040iCDE120,ZZE12#..JPP200209-200610

sub04956-09020

main04956-09020iNDE120,ZZE12#..JPP200610

04953ABOOT KIT, REAR DISC BRAKE CYLINDER SLIDE PIN

main04953-02020iNDE120,ZZE12#..JPP200209-200405

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main47548-02010iCDE120,ZZE12#..JPP200209-200405

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-05011iNDE120,ZZE12#..JPP200410-200611

sub47547-05012

main47547-05012iNDE120,ZZE12#..JPP200612

main90080-93014iNDE120,ZZE12#..JPP200209-200410

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02090iNDE120,ZZE12#..JPP200209-200611

sub47715-02091

main47715-02091iNDE120,ZZE12#..JPP200612

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-02110iCDE120,ZZE12#..JPP200209-200609

sub47721-02111

main47721-02111iNDE120,ZZE12#..JPP200610

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-02110iCDE120,ZZE12#..JPP200209-200609

sub47722-02111

main47722-02111iNDE120,ZZE12#..JPP200610

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-02110iCDE120,ZZE12#..JPP200209-200609

sub47730-02111

main47730-02111iNDE120,ZZE12#..JPP200610

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-02110iCDE120,ZZE12#..JPP200209-200609

sub47750-02111

main47750-02111iNDE120,ZZE12#..JPP200610

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10263iCDE120,ZZE12#..JPP200209-200405

13 parts on this diagram · 1 diagram in section
