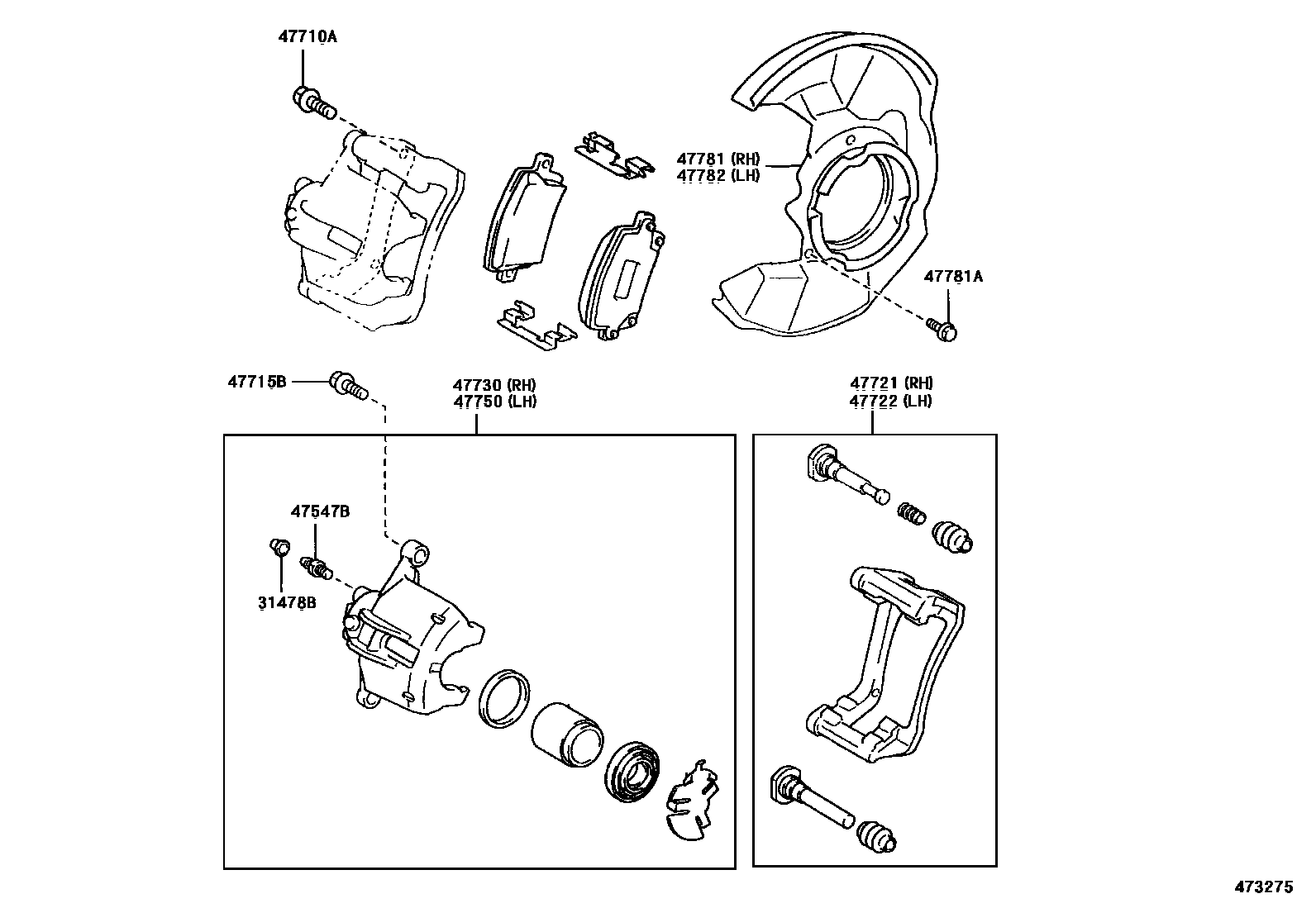

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-02010iCDE120,ZZE12#..JPP200209-200405

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-05011iCDE120,ZZE12#..JPP200209-200611

sub47547-05012

main47547-05012iNDE120,ZZE12#..JPP200612

main90080-93014iNDE120,ZZE12#..JPP200405-200410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNDE120,ZZE12#..JPP¥160200209-200405

*12-1.25PX29.5-23

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-02091iNDE120,ZZE12#..JPP¥650200612

main90080-10190iNDE120,ZZE12#..JPP200209-200611

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09060iCDE120..JPP¥8,500200209-200610

sub47721-09380¥8,500

main47721-09160iZZE12#..JPP200209-200610

sub47721-09400

main47721-09380iNDE120..JPP¥8,500200610

main47721-09400iZZE12#..JPP200610

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-09090iCDE120..JPP200209-200610

sub47721-09390

main47721-09170iZZE12#..JPP200209-200610

sub47721-09410

main47721-09390iNDE120..JPP200610

main47721-09410iZZE12#..JPP200610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02100iCDE120,ZZE12#..JPP200209-200609

sub47730-02101

main47730-02101iNDE120,ZZE12#..JPP200610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02100iCDE120,ZZE12#..JPP200209-200609

sub47750-02101

main47750-02101iNDE120,ZZE12#..JPP200610

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12240iCDE120,ZZE12#..JPP¥1,690200209-200405

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iCDE120,ZZE12#..JPP¥90200209-200405

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12240iCDE120,ZZE12#..JPP¥1,690200209-200405

11 parts on this diagram · 3 diagrams in section
