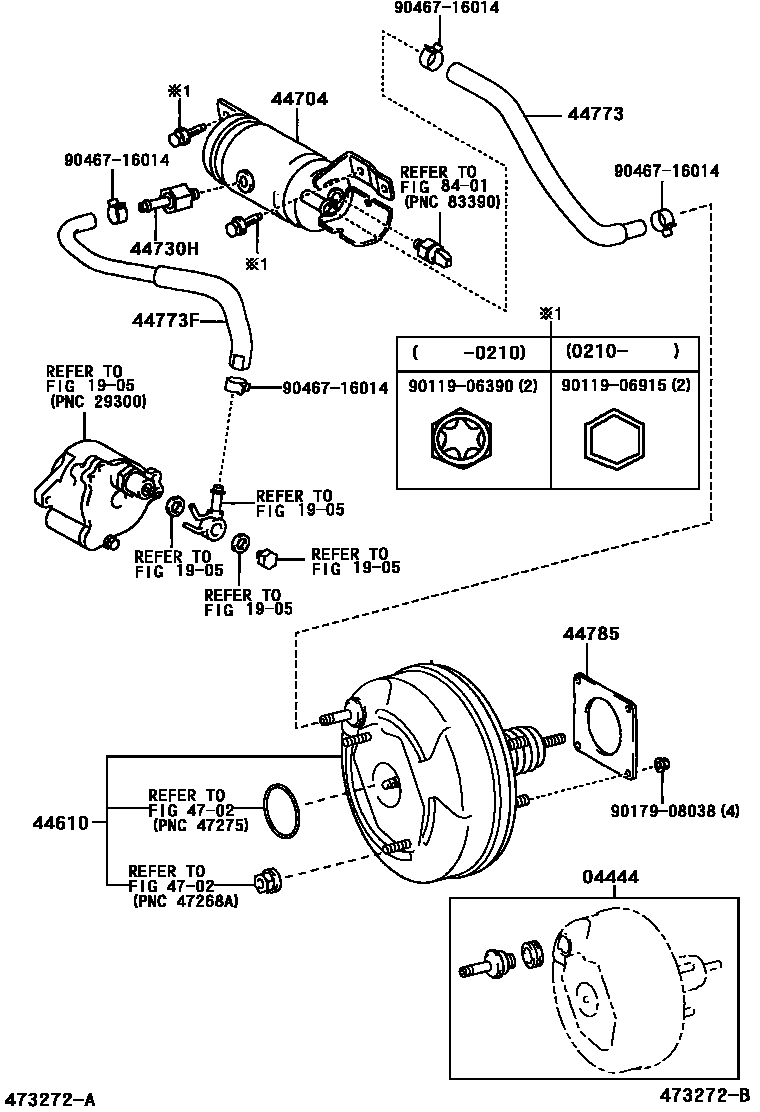

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04444VALVE KIT, BOOSTER CONTROL

main04444-02010iCDE120,ZZE12#..JPP200209-200405

1905

44610BOOSTER ASSY, BRAKE

main44610-09060iCDE120..JPP200209-200405

sub44610-09480

main44610-09070iZZE12#..JPP..RHD200209-200610

sub44610-09380

main44610-09080iZZE12#..JPP..LHD200209-200610

sub44610-09370

main44610-09100iNDE120..JPP200408-200610

sub44610-09360

main44610-09360iNDE120..JPP200610

main44610-09370iZZE12#..JPP..LHD200610

main44610-09380iZZE12#..JPP..RHD200610

44704RESERVOIR SUB-ASSY, VACUUM

main44704-12160iCDE120..JPP¥5,400200209-200405

44730HVALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)

main44730-12080iNDE120..JPP¥2,170200209-200405

44773HOSE, VACUUM, NO.2

main44773-12790iCDE120..JPP¥2,080200209-200405

44773FHOSE, UNION TO CHECK VALVE

main44773-12750iCDE120..JPP¥2,070200209-200405

44785GASKET, BRAKE BOOSTER

main44785-20020iCDE120,ZZE12#..JPP¥320200209-200405

4702

8401

9011906390

main90119-06390¥70

9011906915

main90119-06915¥60

9017908038

main90179-08038¥130

9046716014

main90467-16014¥230

14 parts on this diagram · 4 diagrams in section
