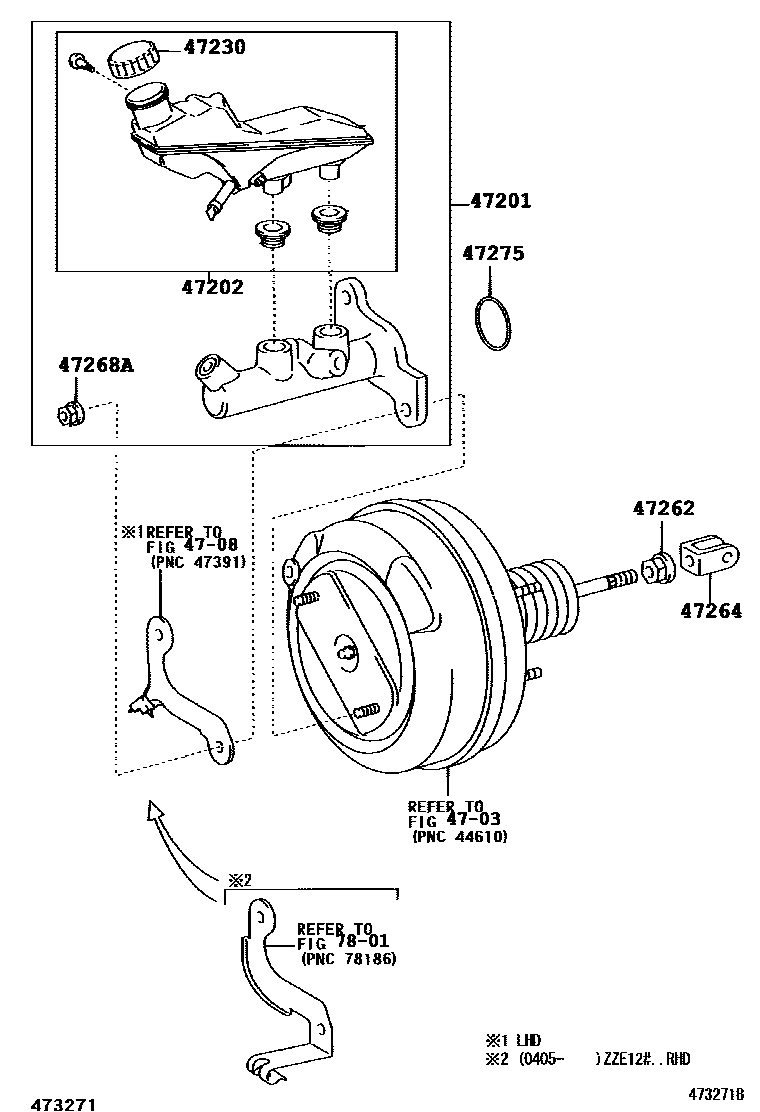

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09040iZZE12#..JPP..RHD200209-200610

sub47201-09270

main47201-09050iZZE12#..JPP..RHD200209-200510

W(VSC)

sub47201-09280

main47201-09060iNDE120,ZZE12#..JPP..LHD200209-200610

sub47201-09250

main47201-09070iZZE121..JPP..LHD200209-200610

W(VSC)

sub47201-09260

main47201-09250iNDE120,ZZE12#..JPP..LHD200610

sub47201-09470

main47201-09260iNDE120,ZZE12#..JPP..LHD200610

W(VSC)

sub47201-09480

main47201-09270iZZE12#..JPP..RHD200610

sub47201-09420

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09010iZZE12#..JPP..RHD200209-200405

main47220-09020iNDE120,ZZE12#..JPP..LHD200209-200405

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02100iNDE120,ZZE12#..JPP200209-200405

47262NUT, MASTER CYLINDER PUSH ROD

main47262-02010iCDE120,ZZE12#..JPP200209-200611

sub47262-02011

main47262-02011iNDE120,ZZE12#..JPP200612

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-02020iNDE120,ZZE12#..JPP..LHD200209-200405

main47264-02050iZZE12#..JPP..RHD200209-200405

47268ANUT, BRAKE MASTER CYLINDER

main47268-02010iCDE120,ZZE12#..JPP200209-200611

main47268-0K030iNDE120,ZZE12#..JPP200612

47275GASKET, BRAKE MASTER CYLINDER

main47275-02010iCDE120,ZZE12#..JPP200209-200405

7801

10 parts on this diagram · 2 diagrams in section
