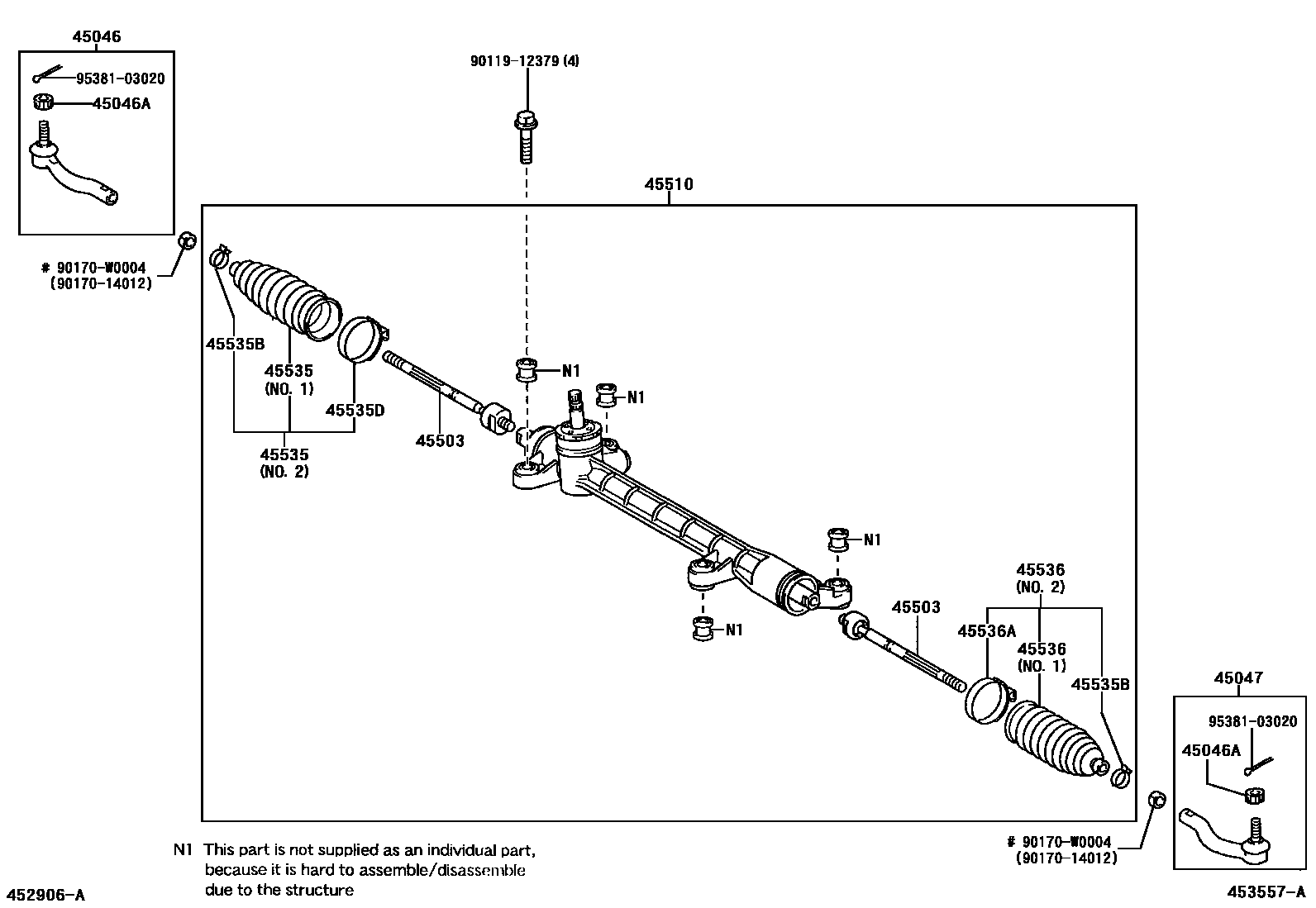

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09360iCDE120,ZZE12#..JPP200310-200405

main45046-19265iCDE120,ZZE12#..JPP200209-200310

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCDE120,ZZE12#..JPP200209-200405

45047END SUB-ASSY, TIE ROD, LH

main45047-09150iNDE120,ZZE12#..JPP200310-200405

main45047-19115iCDE120,ZZE12#..JPP200209-200310

45503END SUB-ASSY, STEERING RACK

main45503-02080iCDE120,ZZE12#..JPP200310-200405

main45503-12130iCDE120,ZZE12#..JPP200209-200310

sub45503-12131

45510GEAR ASSY, STEERING

main45510-02060iZZE12#..JPP..RHD200209-200405

main45510-02070iNDE120,ZZE12#..JPP..LHD200209-200405

45535BOOT, STEERING RACK, NO.1

main45535-02050iNDE120,ZZE12#..JPP200405

main45535-02050iCDE120,ZZE12#..JPP200209-200405

NO.1

main45535-09040iCDE120,ZZE12#..JPP200209-200405

NO.2

45535BCLIP(FOR STEERING RACK BOOT)

main90466-22003iCDE120,ZZE12#..JPP200209-200405

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-57006iCDE120,ZZE12#..JPP200209-200405

45536BOOT, STEERING RACK, NO.2

main45535-02050iCDE120,ZZE12#..JPP200209-200405

NO.1

main45535-02050iNDE120,ZZE12#..JPP200405

main45535-09040iCDE120,ZZE12#..JPP200209-200405

NO.2

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-57006iCDE120,ZZE12#..JPP200209-200405

9011912379

main90119-12379

9017014012

main90170-14012

90170W0004

main90170-W0004

9538103020

main95381-03020

14 parts on this diagram · 4 diagrams in section
