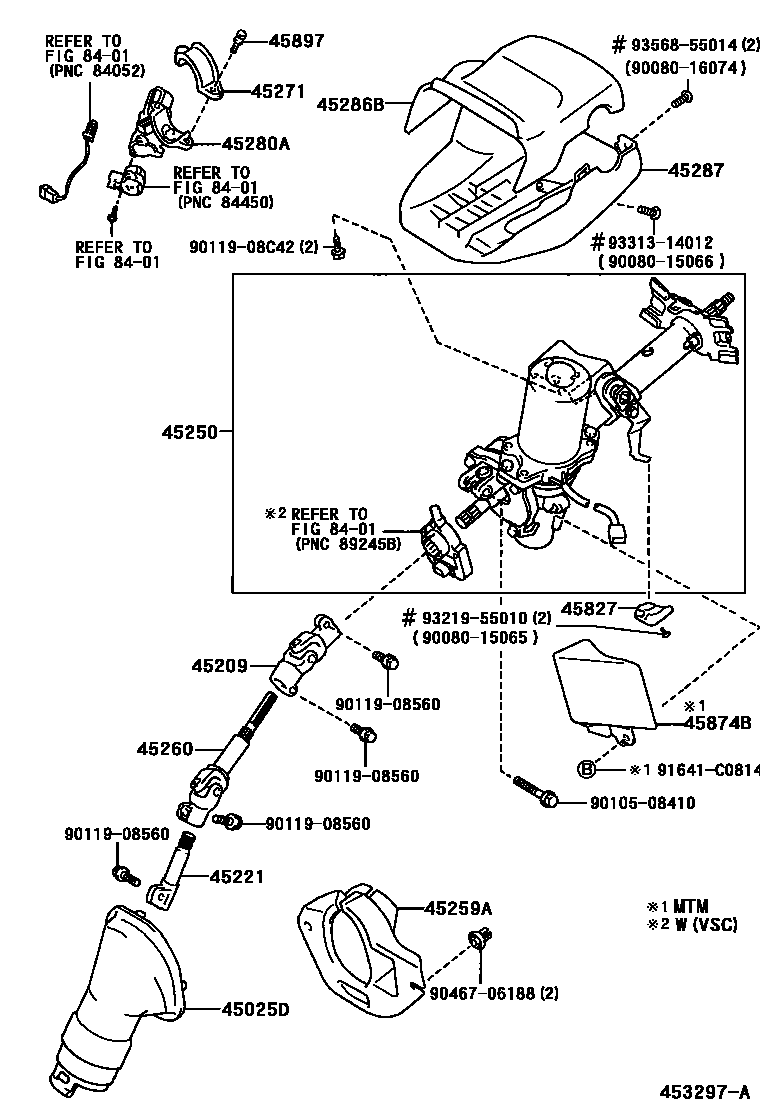

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45259ASHEET, COLUMN HOLE COVER SILENCER
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#,8#
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#
45287COVER, STEERING COLUMN, LWR
DK.GRAY,TRIM1#,8#
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#
45827KNOB, STEERING TILT LEVER
45897BOLT, STEERING LOCK SET
8401
9008015065
main90080-15065
9008015066
main90080-15066
9008016074
main90080-16074
9010508410
main90105-08410
9011908560
main90119-08560
9011908C42
main90119-08C42
9046706188
main90467-06188
91641C0814
main91641-C0814
9321955010
main93219-55010
9331314012
main93313-14012
9356855014
main93568-55014
25 parts on this diagram · 4 diagrams in section
