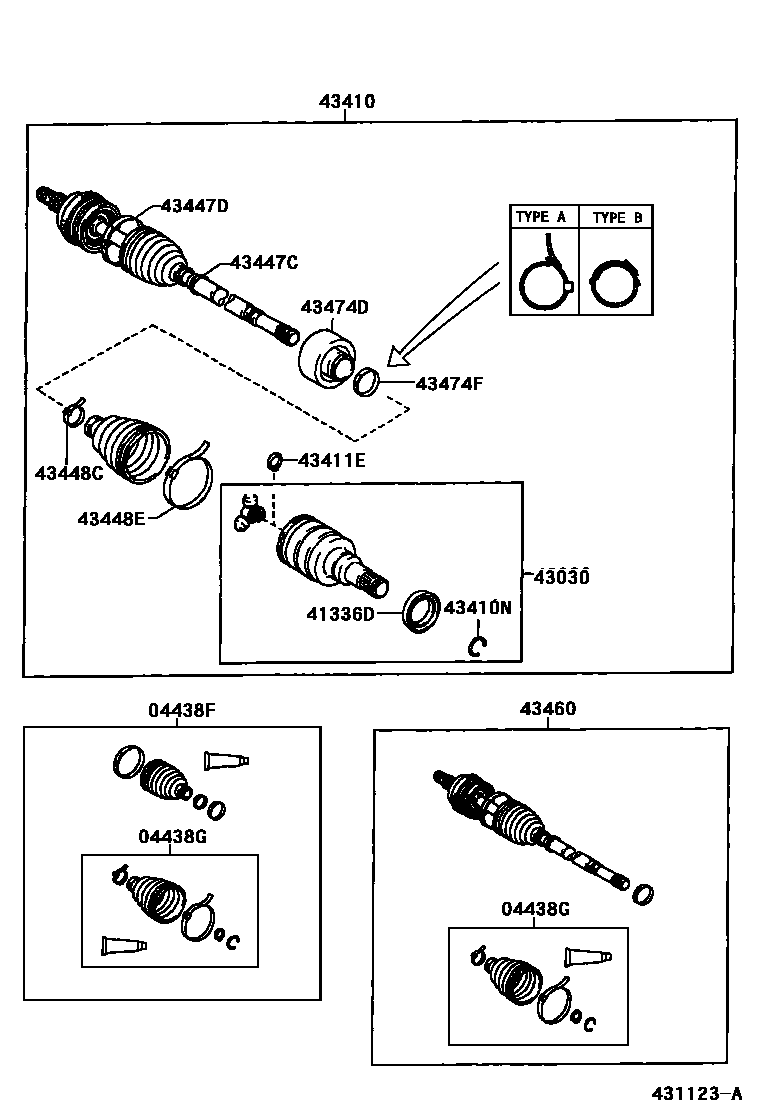

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-02091i200408-200610

main04438-12610i200209-200610

sub04428-12260

main04438-28052i200209-200405

sub04428-42070

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-02121i200408-200610

main04438-28041i200209-200405

sub04438-42180

main04438-32231i200405-200610

sub04438-32290

main04438-52230i200209-200405

sub04437-12400

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02040i200408

main41336-12010i200209-200405

main41336-12020i200209-200405

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-02050i200408

main43030-28011i200209-200405

main43403-12040i200209-200405

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02250i200408

sub43410-02251

main43410-12660i200209-200405

main43410-13050i200209-200405

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52054i200408

main90520-38015i200209-200405

main90521-26004i200209-200405

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02010i200408

main43425-28010i200209-200405

main90520-22005i200209-200405

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110i200408

main42345-12150i200209-200405

ID=29.6

sub42345-12190

main42345-12150i200405

sub42345-12190

main42345-20040i200209-200405

sub42345-42100

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100i200408

main42345-12140i200209-200405

ID=92.0

sub42345-12180

main42345-12140i200405

sub42345-12180

main42345-28020i200209-200405

sub42345-42090

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02040i200408

main42345-42010i200209-200405

TYPE B:REFER TO ILLUSTRATION

main90949-01078i200209-200405

main90949-01559i200209-200405

TYPE A:REFER TO ILLUSTRATION

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05100i200408

main42345-12160i200209-200405

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09611i200408-200610

main43460-49126i200209-200405

main43460-80001i200209-200610

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02110i200408

main43474-12120i200209-200405

sub43474-12210

main43474-44010i200209-200405

sub43474-44020

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010i200209-200405

TYPE B:REFER ILLUST.

main90949-01947i200405

TYPE A:REFER ILLUST.

main90949-01947i200209-200405

TYPE A:REFER TO ILLUSTRATION
