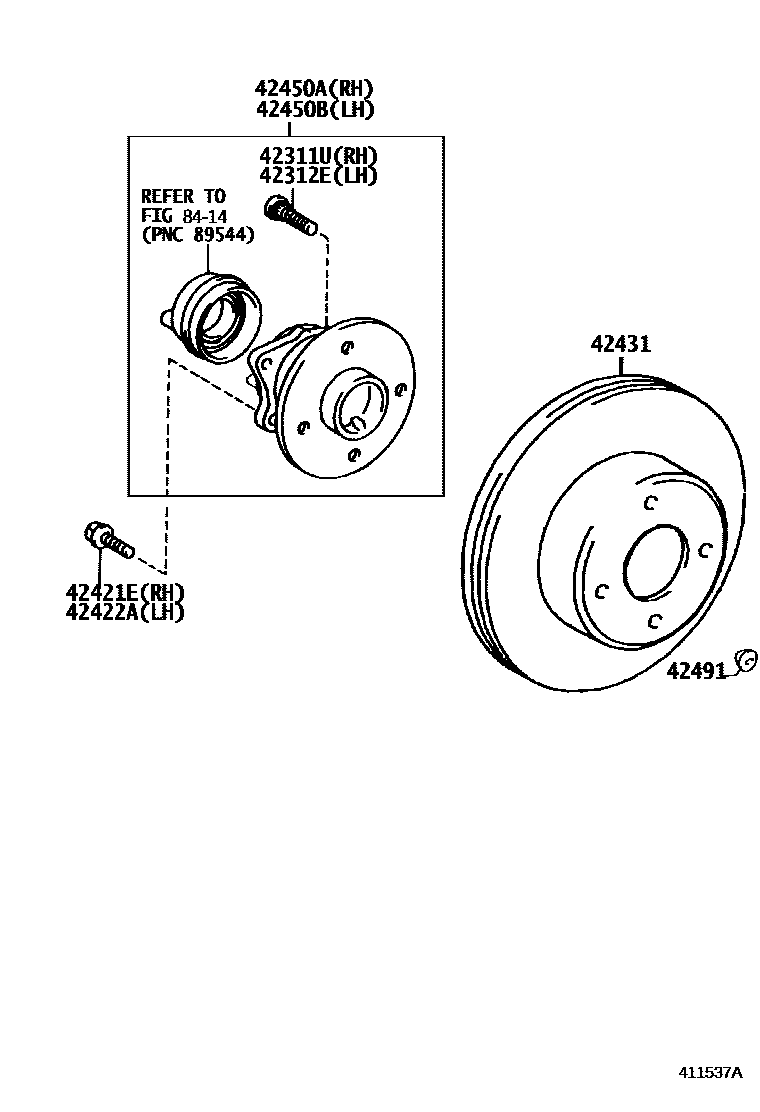

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iZZE12#..JPP¥240200209-200610

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iZZE12#..JPP¥240200209-200610

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10507iNDE120,ZZE12#..JPP¥120200209-200405

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10507iNDE120,ZZE12#..JPP¥120200209-200405

42431DISC, REAR

main42431-02070iZZE12#..JPP¥9,200200209-200610

sub42431-02071¥9,200

main42431-02080iCDE120..JPP200209-200309

sub42431-02081

main42431-02081iCDE120..JPP200309-200610

sub42431-02082

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-12070iCDE120..JPP¥39,500200302-200405

main42450-12081iCDE120,ZZE12#..JPP¥30,900200209-200302

sub42450-12070¥39,500

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-12070iCDE120..JPP¥39,500200302-200405

main42450-12081iCDE120,ZZE12#..JPP¥30,900200209-200302

sub42450-12070¥39,500

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iCDE120,ZZE12#..JPP¥140200209-200405

8414

9 parts on this diagram · 1 diagram in section
