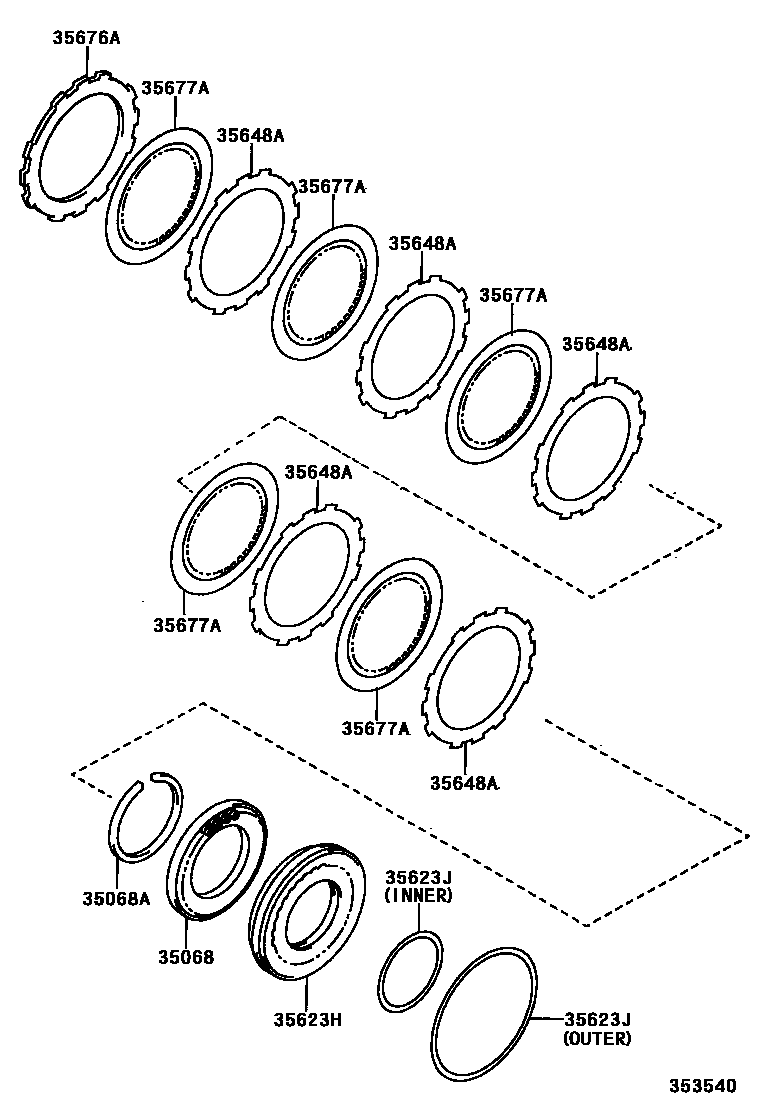

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iZZE121..JPP..4FC200405

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iZZE121..JPP..4FC200209-200405

35623HPISTON, 1ST & REVERSE BRAKE

main35623-20020iZZE121..JPP..4FC200209-200405

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004iZZE121..JPP..4FC200405

OUTER

main90301-99131iZZE121..JPP..4FC200209-200405

INNER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020×5iZZE121..JPP..4FC200209-200405

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iZZE121..JPP..4FC200209-200405

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12080×5iZZE121..JPP..4FC200209-200405

7 parts on this diagram · 1 diagram in section
