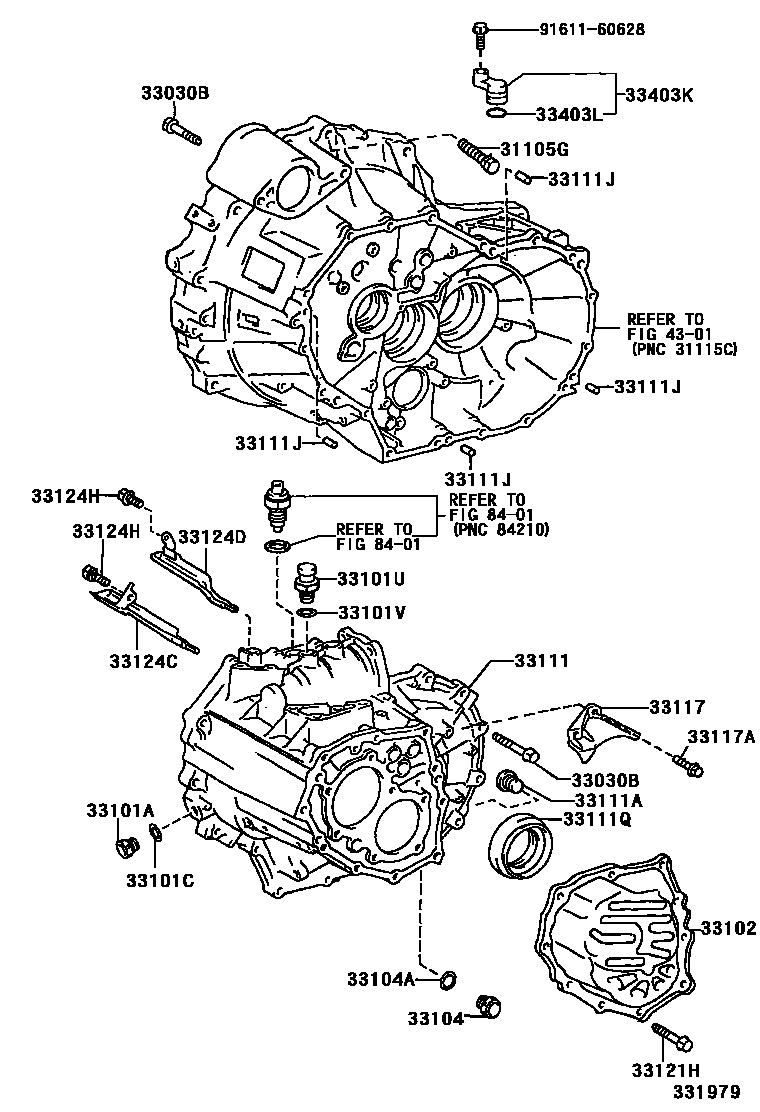

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1E351 0002 1C150 0003 1C50 0004 1C53

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCDE120..JPP¥260200209-200405

*10-1.25PX43-26

main90119-12168iCDE120..JPP¥170200209-200405

*12-1.25PX55-30

main91612-61045iNDE120..JPP¥120200512

*10-1.25PX45-30

main91612-61050iNDE120..JPP¥120200408-200511

*10-1.25PX50-30

main91619-61255iZZE12#..JPP..5F¥120200209-200405

*12-1.25PX55-30

main91642-81055iZZE12#..JPP..5F¥220200209-200405

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iZZE120..JPP¥110200209-200408

*8-1.25PX45-27.5

main90105-08126iCDE120..JPP¥190200209-200405

*8-1.25PX45-27.5

main90105-08353iNDE120,ZZE121..JPP..5F¥100200209-200405

*8-1.25PX50-30

main90105-08430iNDE120,ZZE121..JPP..5F¥100200406

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iZZE12#..JPP..5F¥180200209-200506

main90341-18033iCDE120..JPP¥190200209-200405

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCDE120,ZZE12#..JPP..5F¥110200209-200405

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03148iCDE120..JPP¥1,650200209-200405

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iCDE120..JPP¥110200209-200405

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iZZE120..JPP¥3,540200209-200405

main33102-12021iNDE120,ZZE121..JPP..5F¥9,800200209-200404

main33102-12041iCDE120..JPP¥4,940200209-200306

sub33102-12042¥4,950

main33102-12042iCDE120..JPP¥4,950200306-200405

sub33102-12043¥4,950

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNDE120,ZZE12#..JPP..5F¥180200209-200506

main90341-18033iNDE120,ZZE12#..JPP..5F¥190200506

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCDE120,ZZE12#..JPP..5F¥110200209-200405

33111CASE, MANUAL TRANSMISSION

main33101-20090iCDE120..JPP¥40,900200301-200405

main33101-28041iCDE120..JPP¥40,900200209-200301

sub33101-20090¥40,900

sub33250-12180¥17,900

main33111-16053iZZE120..JPP¥35,200200209-200405

main33111-16063iZZE121..JPP..5F¥38,200200209-200405

sub33111-16064¥35,200

sub90101-08166¥110

sub90201-08049¥90

main33111-17101iNDE120,ZZE121..JPP..5F¥38,200200405-200501

sub33111-17102¥35,200

sub90101-08166¥110

sub90201-08049¥90

sub90389-15009¥270

main33111-17102iNDE120,ZZE121..JPP..5F¥35,200200501

sub33111-12280¥35,200

33111APLUG, MANUAL TRANSMISSION CASE

main90341-12004iCDE120..JPP¥140200209-200405

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCDE120,ZZE12#..JPP..5F¥120200209-200405

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34028iZZE12#..JPP..5F¥310200209-200405

sub90311-34034¥470

main90311-35044iNDE120..JPP¥310200408-200509

sub90311-35058¥470

main90311-35058iNDE120..JPP¥470200509

sub90311-35064¥470

main90311-50024iCDE120..JPP¥520200209-200405

sub90311-50035¥520

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iCDE120..JPP¥1,950200209-200405

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main91641-H0820iCDE120..JPP¥90200209-200405

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373iZZE120..JPP¥140200209-200405

main90119-08630iCDE120..JPP¥100200209-200405

main90119-08782iNDE120,ZZE121..JPP..5F¥190200603

main91611-60835iNDE120,ZZE121..JPP..5F¥90200209-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iZZE120..JPP¥750200209-200405

main33124-20050iZZE121..JPP..5F¥440200209-200405

main33124-28050iCDE120..JPP¥1,140200209-200405

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iZZE120..JPP¥1,260200209-200405

main33124-12021iZZE121..JPP..5F¥720200209-200405

main33124-28060iCDE120..JPP¥1,150200209-200405

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830iCDE120..JPP¥100200209-200405

main91611-G0820iNDE120,ZZE121..JPP..5F¥160200209-200405

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iCDE120..JPP¥1,180200209-200405

main33403-35230iZZE12#..JPP..5F¥1,180200209-200405

33403LRING, O

main96711-24018iCDE120..JPP¥160200209-200405

main96711-24030iZZE12#..JPP..5F¥170200209-200405

4301

8401

9161160628

main91611-60628¥120

24 parts on this diagram · 4 diagrams in section
