TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

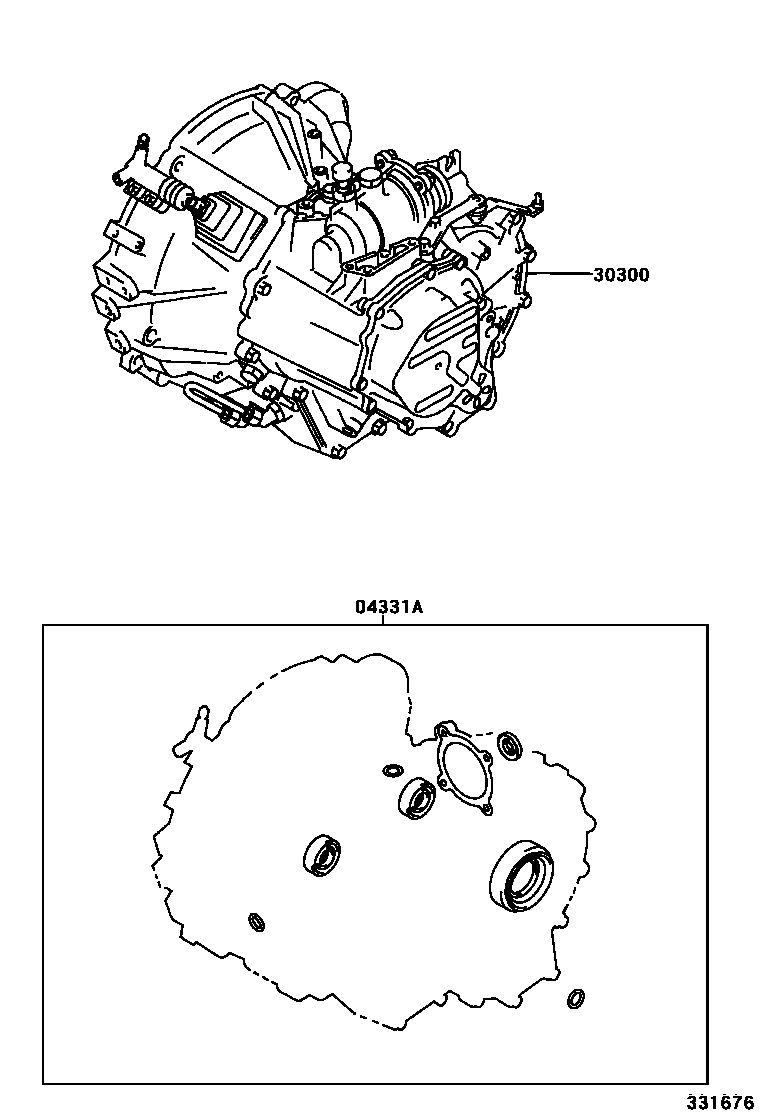

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-02060i200405-200610
main04331-12220i200405-200610
sub04331-52270
main04331-12330i200408-200610
sub04331-12270
main04331-13010i200209-200405
main04331-28020i200209-200405
sub04331-64011
main04331-52270i200407-200410
sub04331-52190
30300TRANSAXLE ASSY, MANUAL
main30300-12A00i200408-200512
C53
sub30300-12A01
sub31490-12081
sub90179-06219
main30300-12A01i200512
C53
sub30300-12A02
main30300-12A10i200405
C50
sub30300-12A11
main30300-12A20i200405-200409
C150
sub30300-12A21
main30300-12A21i200409
C150
sub30300-12A22
main30300-13070i200209-200405
C50
sub30300-13071
main30300-1E030i200209-200405
E351,COLD AREA SPEC
sub30300-1E031
main30300-1E110i200209-200405
C150
sub30300-1E111
main30300-1E140i200209-200405
E351

2 parts on this diagram · 2 diagrams in section
