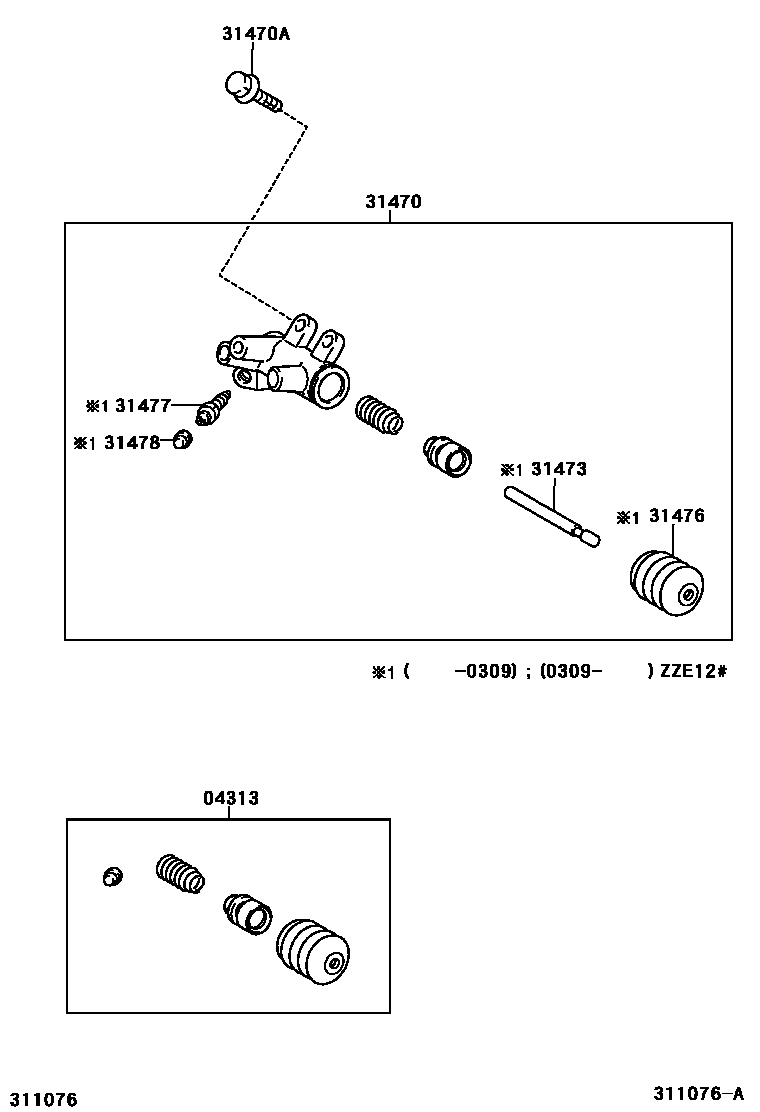

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCDE120..JPP¥780200209-200405

main04313-17040iZZE12#..JPP..5F¥860200209-200405

main04313-35060iNDE120..JPP¥780200408

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE12#..JPP..5F¥7,400200209-200405

sub31470-12140¥7,400

main31470-12150iNDE120..JPP¥6,700200408

sub31470-12180

main31470-32022iCDE120..JPP¥7,400200209-200405

sub31470-32023¥7,400

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCDE120..JPP¥80200209-200405

*8-1.25PX25-20.1

main91611-60822iNDE120..JPP¥170200209-200405

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE12#..JPP..5F¥470200209-200405

main31473-22010iCDE120..JPP¥720200209-200405

main31473-22030iNDE120..JPP¥520200408

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNDE120,ZZE12#..JPP..5F¥230200209-200405

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iCDE120,ZZE12#..JPP..5F¥200200209-200405

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCDE120,ZZE12#..JPP..5F¥160200209-200405

7 parts on this diagram · 2 diagrams in section
