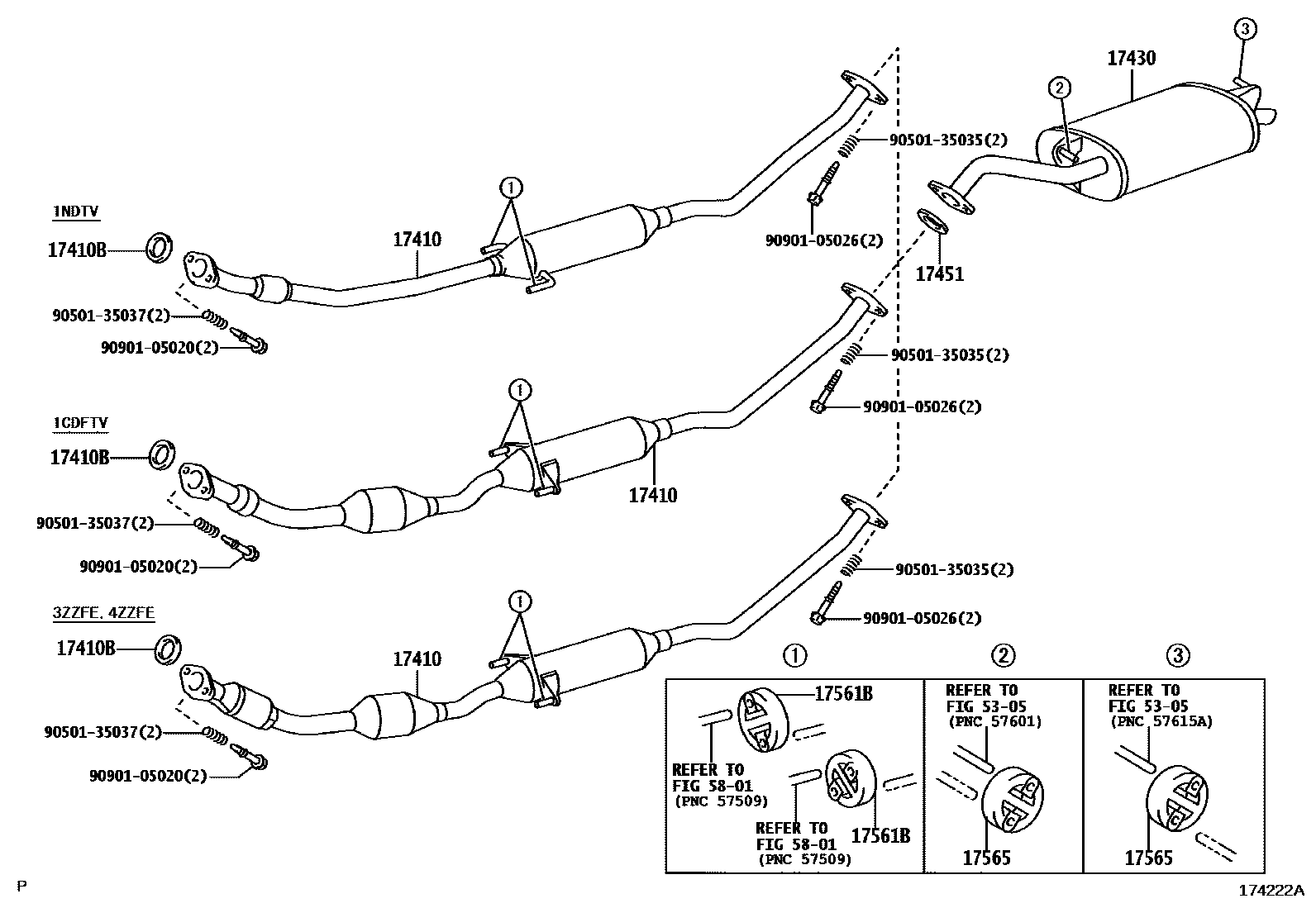

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-22440i3ZZFE,4ZZFE..ZZE12#..JPP200209-200405

sub17410-22260

main17410-22490i3ZZFE,4ZZFE..ZZE12#..JPP200405

*114=TOYOTA/GA7GB7/Y

main17410-27150i1CDFTV..CDE120..JPP200209-200405

main17410-33130i1NDTV..NDE120..JPP200408

17410BGASKET, EXHAUST PIPE

main17451-22060i1CDFTV..CDE120..JPP200209-200405

main17451-22070i1NDTV,3ZZFE,4ZZFE..NDE120,ZZE12#..JPP200209-200405

17430PIPE ASSY, EXHAUST, TAIL

main17430-22420i3ZZFE,4ZZFE..ZZE12#..JPP200209-200405

main17430-22460i3ZZFE,4ZZFE..ZZE12#..JPP200405

main17430-27140i1CDFTV..CDE120..JPP200209-200405

17451GASKET, EXHAUST PIPE

main17451-16030i1CDFTV..CDE120..JPP200209-200405

main17451-64030i3ZZFE,4ZZFE..ZZE12#..JPP200209-200405

sub17451-64031

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-21030i1CDFTV..CDE120..JPP200209-200608

sub17565-22030

main17565-22030i1NDTV,3ZZFE,4ZZFE..NDE120,ZZE12#..JPP200609

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-21040i1CDFTV..CDE120..JPP200209-200405

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 1 diagram in section
