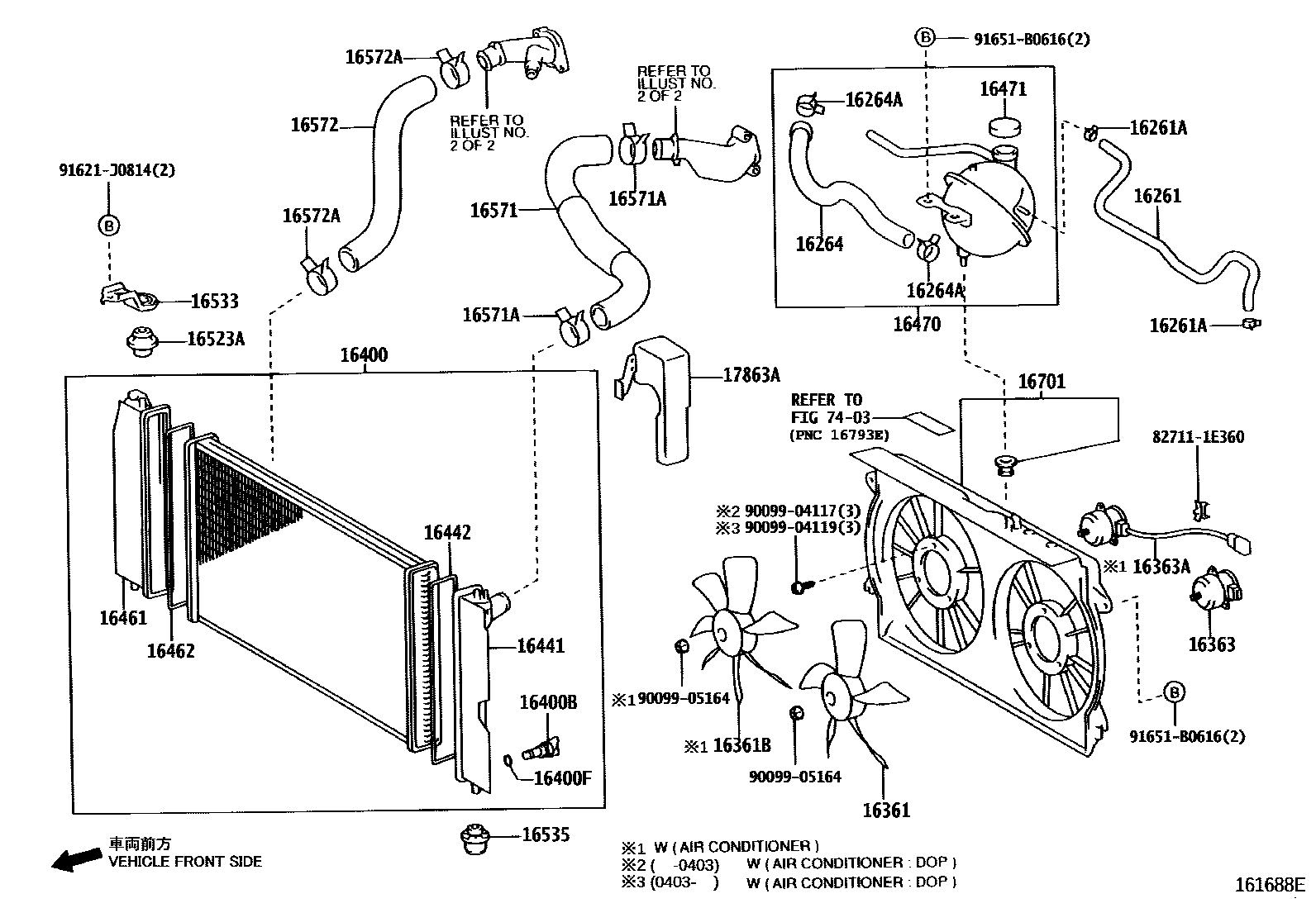

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
NO.1
NO.2
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
16361FAN
ISRAEL SPEC
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16441TANK, RADIATOR, UPPER
16442RING, O(FOR RADIATOR UPPER TANK)
16461TANK, RADIATOR, LOWER
16462RING, O(FOR RADIATOR LOWER TANK)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
NO.1
NO.1
NO.2
NO.1
NO.1 & NO.2
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
NO.1
NO.1
NO.1
NO.2
NO.2
NO.1
NO.2
16701SHROUD SUB-ASSY, FAN
17863ASEPARATOR, AIR INTAKE
7403
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
91621J0814
91651B0616
33 parts on this diagram · 8 diagrams in section
