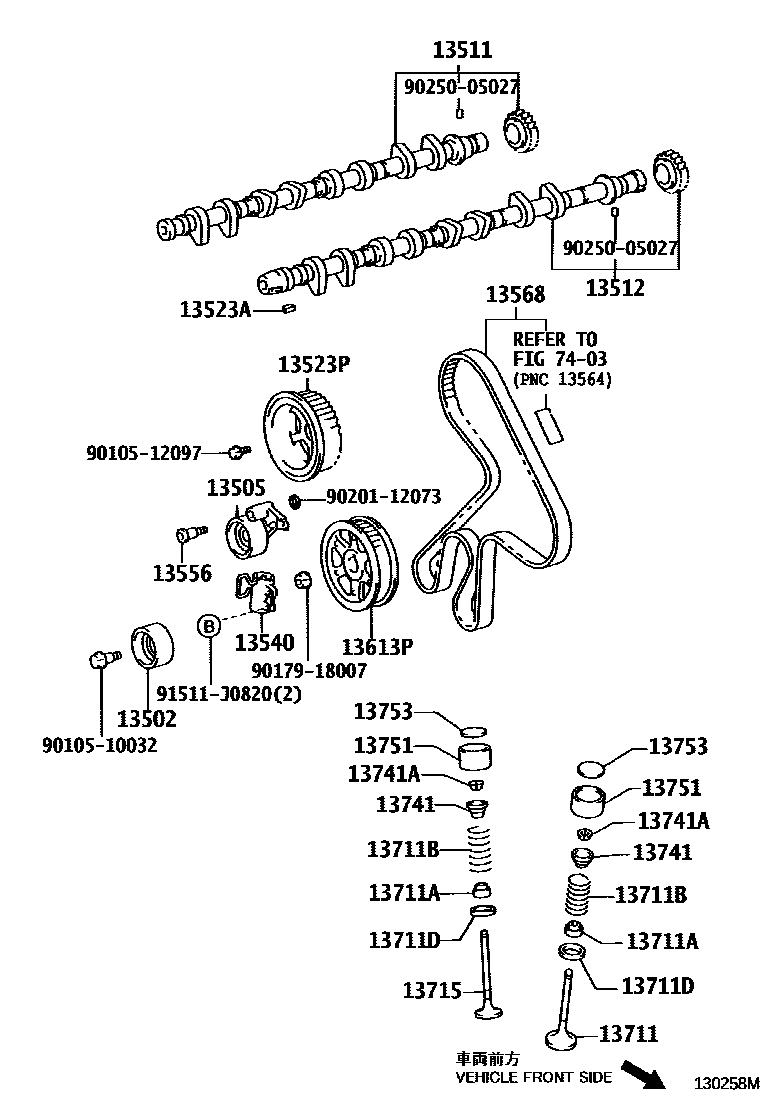

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-27010i1CDFTV..CDE120..JPP¥3,010200209-200405

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-27010i1CDFTV..CDE120..JPP¥3,400200209-200405

13511CAMSHAFT

main13501-22060i3ZZFE,4ZZFE..ZZE12#..JPP¥32,400200209-200210

sub13501-22061¥34,200

main13501-22061i3ZZFE,4ZZFE..ZZE12#..JPP¥34,200200210-200405

sub13501-22062¥34,200

main13501-27011i1CDFTV..CDE120..JPP¥35,400200209-200405

main13501-33010i1NDTV..NDE120..JPP¥29,500200408

13512CAMSHAFT, NO.2

main13502-22010i3ZZFE,4ZZFE..ZZE12#..JPP¥34,400200209-200210

sub13502-22011¥34,200

main13502-22011i3ZZFE,4ZZFE..ZZE12#..JPP¥34,200200210-200405

main13502-27011i1CDFTV..CDE120..JPP¥35,400200209-200405

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i3ZZFE,4ZZFE..ZZE12#..JPP¥4,270200209-200405

main13523-33020i1NDTV..NDE120..JPP¥5,500200408-200410

sub13523-33021¥5,500

sub90105-08434¥130

main13523-33021i1NDTV..NDE120..JPP¥5,500200410

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1CDFTV..CDE120..JPP¥230200209-200405

13523PPULLEY, CAMSHAFT TIMING

main13523-27010i1CDFTV..CDE120..JPP¥7,000200209-200405

13540TENSIONER ASSY, CHAIN, NO.1

main13540-22022i3ZZFE,4ZZFE..ZZE12#..JPP¥4,270200209-200405

main13540-27011i1CDFTV..CDE120..JPP¥10,700200209-200405

main13540-33020i1NDTV..NDE120..JPP¥3,890200408

13556SHAFT, TIMING BELT IDLER

main13556-27010i1CDFTV..CDE120..JPP¥1,810200209-200405

13568BELT, TIMING

main13568-29035i1CDFTV..CDE120..JPP¥6,100200209-200405

13613PPULLEY, INJECTION PUMP DRIVE

main13603-27010i1CDFTV..CDE120..JPP¥7,000200209-200405

13711VALVE, INTAKE

main13711-22040i3ZZFE,4ZZFE..ZZE12#..JPP¥1,610200209-200405

main13711-27010i1CDFTV..CDE120..JPP¥2,260200209-200405

main13711-33030i1NDTV..NDE120..JPP¥1,940200408

sub13711-33031¥1,620

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02101i3ZZFE,4ZZFE..ZZE12#..JPP¥270200209-200405

NO.2

main90913-02111i3ZZFE,4ZZFE..ZZE12#..JPP¥450200209-200405

NO.1

main90913-02119i1CDFTV..CDE120..JPP¥450200209-200310

main90913-02121i1CDFTV..CDE120..JPP¥370200310-200405

13711BSPRING, COMPRESSION(FOR INNER)

main90905-01055i1CDFTV..CDE120..JPP¥320200209-200405

main90905-01084i3ZZFE,4ZZFE..ZZE12#..JPP¥300200209-200405

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-19008i1NDTV..NDE120..JPP¥120200408

main90560-11032i1CDFTV..CDE120..JPP¥120200209-200405

13715VALVE, EXHAUST

main13715-22040i3ZZFE,4ZZFE..ZZE12#..JPP¥1,610200209-200405

main13715-27010i1CDFTV..CDE120..JPP¥2,260200209-200405

main13715-33040i1NDTV..NDE120..JPP¥2,750200408

sub13715-33041¥2,290

13741RETAINER, VALVE SPRING

main13741-10020i1NDTV..NDE120..JPP¥440200408

main13741-16010i1CDFTV..CDE120..JPP¥440200209-200405

main13741-22021i3ZZFE,4ZZFE..ZZE12#..JPP¥220200209-200405

13741ALOCK, VALVE SPRING RETAINER

main90913-03021i1CDFTV..CDE120..JPP¥180200209-200405

main90913-03028i3ZZFE,4ZZFE..ZZE12#..JPP¥270200209-200405

13751LIFTER, VALVE

main13751-16010i1CDFTV..CDE120..JPP¥2,210200209-200405

main13751-46030i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.06

main13751-46040i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.08

main13751-46050i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.10

main13751-46060i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.12

main13751-46070i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.14

main13751-46080i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.16

main13751-46090i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.18

main13751-46100i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.20

main13751-46110i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.22

main13751-46120i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.24

main13751-46130i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.26

main13751-46140i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.28

main13751-46150i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.30

main13751-46160i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.32

main13751-46170i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.34

main13751-46180i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.36

main13751-46190i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.38

main13751-46200i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.40

main13751-46210i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.42

main13751-46220i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.44

main13751-46230i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.46

main13751-46240i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.48

main13751-46250i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.50

main13751-46260i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.52

main13751-46270i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.54

main13751-46280i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.56

main13751-46290i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.58

main13751-46300i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.60

main13751-46310i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.62

main13751-46320i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.64

main13751-46330i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.66

main13751-46340i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.68

main13751-46350i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.70

main13751-46360i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.72

main13751-46370i3ZZFE,4ZZFE..ZZE12#..JPP¥860200209-200405

T=5.74

13753SHIM, VALVE ADJUSTING

main13753-27010i1CDFTV..CDE120..JPP¥590200209-200405

T=2.500

main13753-27030i1CDFTV..CDE120..JPP¥590200209-200405

T=2.550

main13753-27050i1CDFTV..CDE120..JPP¥590200209-200405

T=2.600

main13753-27070i1CDFTV..CDE120..JPP¥590200209-200405

T=2.650

main13753-27090i1CDFTV..CDE120..JPP¥590200209-200405

T=2.700

main13753-27110i1CDFTV..CDE120..JPP¥590200209-200405

T=2.750

main13753-27130i1CDFTV..CDE120..JPP¥590200209-200405

T=2.800

main13753-27150i1CDFTV..CDE120..JPP¥590200209-200405

T=2.850

main13753-27170i1CDFTV..CDE120..JPP¥590200209-200405

T=2.900

main13753-27190i1CDFTV..CDE120..JPP¥590200209-200405

T=2.950

main13753-27210i1CDFTV..CDE120..JPP¥590200209-200405

T=3.000

main13753-27230i1CDFTV..CDE120..JPP¥590200209-200405

T=3.050

main13753-27250i1CDFTV..CDE120..JPP¥590200209-200405

T=3.100

main13753-27270i1CDFTV..CDE120..JPP¥590200209-200405

T=3.150

main13753-27290i1CDFTV..CDE120..JPP¥590200209-200405

T=3.200

main13753-27310i1CDFTV..CDE120..JPP¥590200209-200405

T=3.250

main13753-27330i1CDFTV..CDE120..JPP¥590200209-200405

T=3.300

7403

9010510032

main90105-10032¥310

9010512097

main90105-12097¥390

9017918007

main90179-18007¥310

9020112073

main90201-12073¥200

9025005027

main90250-05027¥80

91511J0820

main91511-J0820¥130

27 parts on this diagram · 3 diagrams in section
