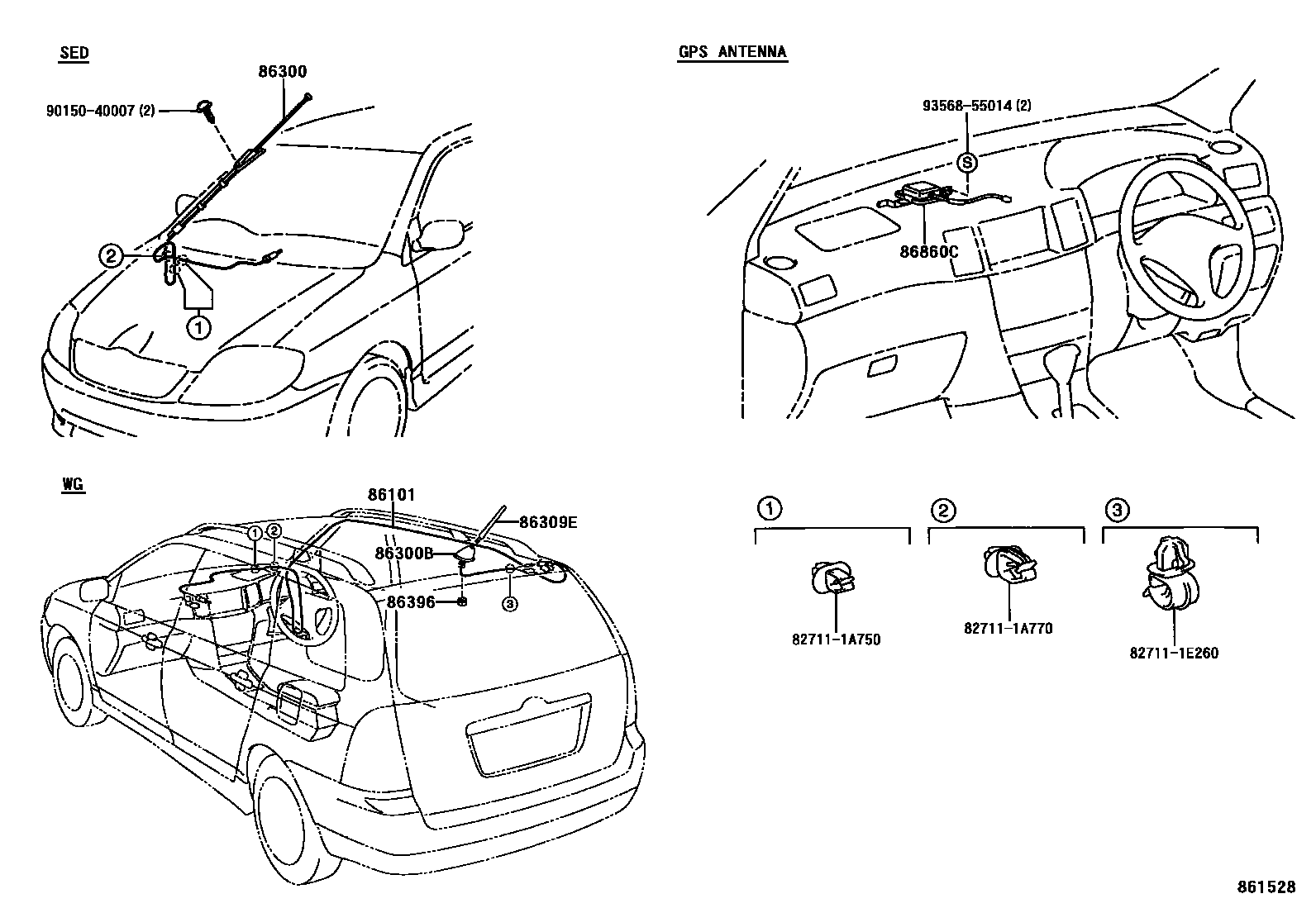

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-12330iCDE120,ZZE12#..JPP..WG¥8,200200110-200405

main86101-12390iNDE120,ZZE12#..JPP¥5,800200405

86300ANTENNA ASSY, W/HOLDER

main86300-12720iZZE12#..JPP..SED¥4,920200110-200405

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12790iCDE120,ZZE12#..JPP..WG¥19,900200110-200405

main86300-12830iNDE120,ZZE12#..JPP¥19,900200405

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-13010iCDE120,ZZE12#..JPP..WG¥3,270200110-200405

86396NUT, ANTENNA

main86396-12030iCDE120,ZZE12#..JPP..WG¥680200110-200405

86860CANTENNA ASSY, NAVIGATION

main86860-12030iZZE12#..JPP..SOL¥37,300200405-200510

main86860-13030iCDE120,ZZE12#..JPP..WG¥37,300200110-200405

sub86860-12050¥37,300

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750¥60

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770¥90

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260¥80

9015040007

main90150-40007¥120

9356855014

main93568-55014¥70

11 parts on this diagram · 2 diagrams in section
