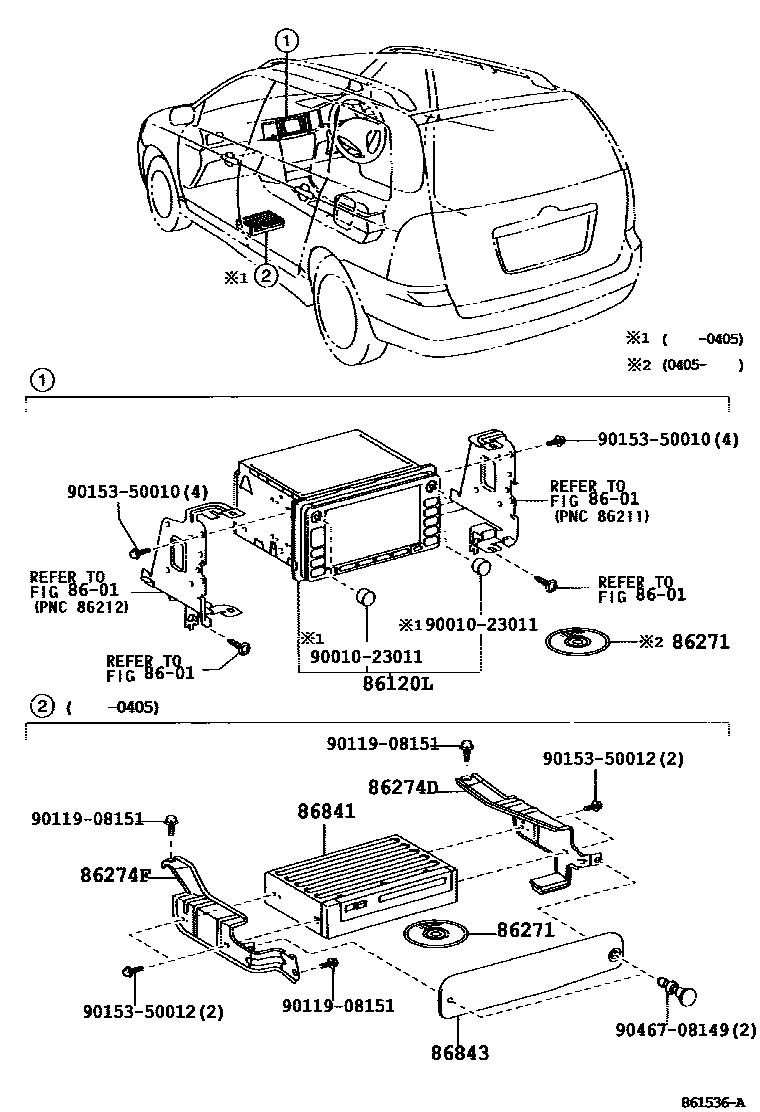

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-1A200iZZE12#..JPP..SOL200405-200510

AISHIN AW

main86120-33420iCDE120,ZZE12#..JPP..WG200110-200301

FUJITSU TEN,ID=19001

sub86120-33421

main86120-33421iCDE120,ZZE12#..JPP..WG200301-200405

FUJITSU TEN,ID=19003

86271DISC, DISC PLAYER

main86271-24120iCDE120,ZZE12#..JPP..WG200110-200210

sub86271-24121

main86271-24121iCDE120,ZZE12#..JPP..WG200210-200310

sub86271-24122

main86271-24122iCDE120,ZZE12#..JPP..WG200310-200311

sub86271-24123

main86271-24123iCDE120,ZZE12#..JPP..WG200311-200405

sub86271-24124

main86271-64011iZZE12#..JPP..SOL200405-200407

sub86271-64012

main86271-64012iZZE12#..JPP..SOL200408-200510

sub86271-53030

86274DBRACKET, DISC PLAYER

main86274-13050iCDE120,ZZE12#..JPP..WG200110-200405

86274FBRACKET, DISC PLAYER, NO.2

main86274-13060iCDE120,ZZE12#..JPP..WG200110-200405

86841COMPUTER, NAVIGATION

main86841-13020iCDE120,ZZE12#..JPP..WG200110-200405

86843COVER, NAVIGATION COMPUTER

main86843-32010iCDE120,ZZE12#..JPP..WG200110-200405

9001023011

main90010-23011

9011908151

main90119-08151

9015350010

main90153-50010

9015350012

main90153-50012

9046708149

main90467-08149

12 parts on this diagram · 1 diagram in section
