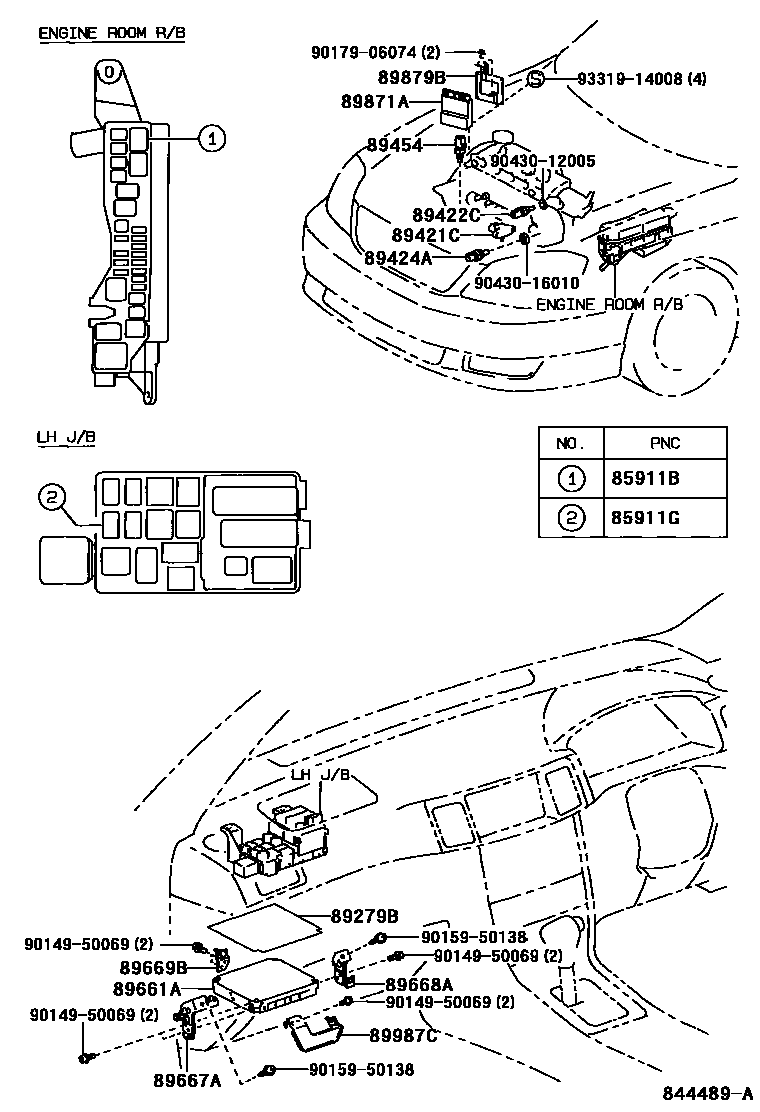

ELECTRONIC CONTROLED DIESEL (ECD)
85911BRELAY, COMPUTER (FOR DIESEL TURBO)
sub90987-02027
85911GRELAY, INJECTOR DRIVER
sub90987-02027
89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89454SENSOR, FUEL TEMPERATURE
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
89987CBRACKET, COMPUTER, NO.1
9014950069
main90149-50069
9015950138
main90159-50138
9017906074
main90179-06074
9043012005
main90430-12005
9043016010
main90430-16010
9331914008
main93319-14008
20 parts on this diagram · 3 diagrams in section
