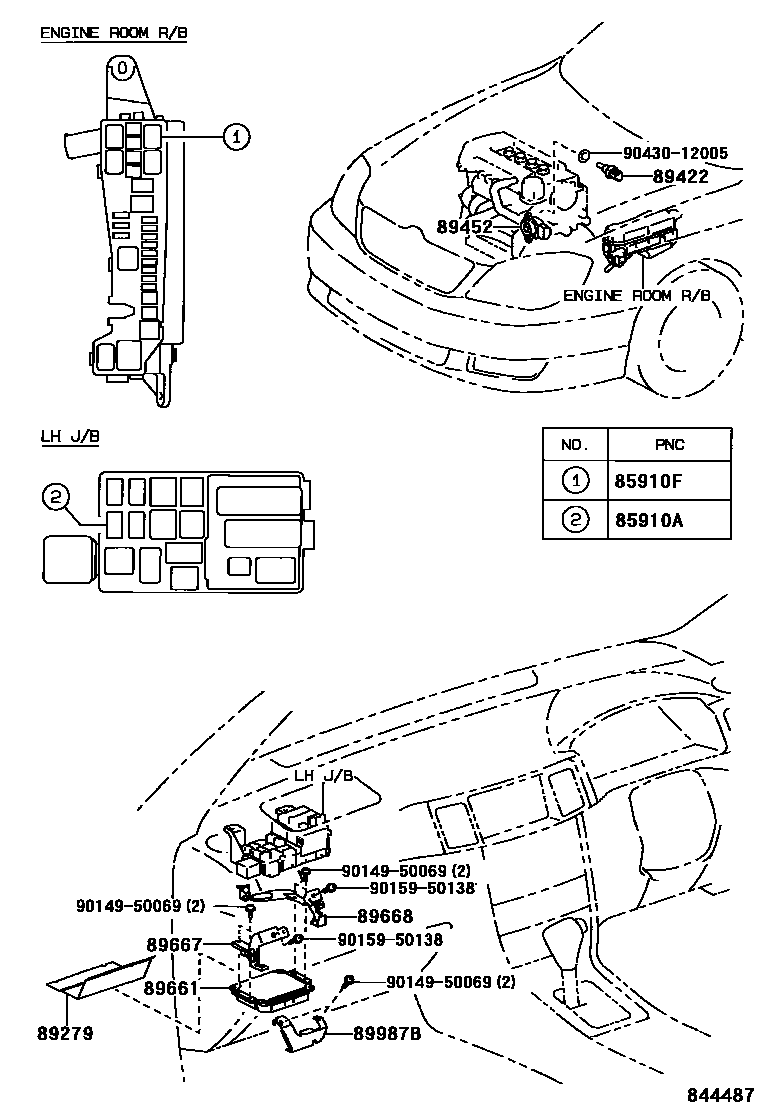

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
sub90987-02027
85910FRELAY, COMPUTER (FOR EFI)
sub90987-02027
89279COVER, ENGINE CONTROL COMPUTER
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
PART NUMBER LABEL=89661-12A10
PART NUMBER LABEL=89661-12A20
PART NUMBER LABEL=89661-13190
PART NUMBER LABEL=89661-13210
PART NUMBER LABEL=89666-12350
PART NUMBER LABEL=89666-12370
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89987BBRACKET, COMPUTER, NO.1
9014950069
main90149-50069
9015950138
main90159-50138
9043012005
main90430-12005
12 parts on this diagram · 4 diagrams in section
