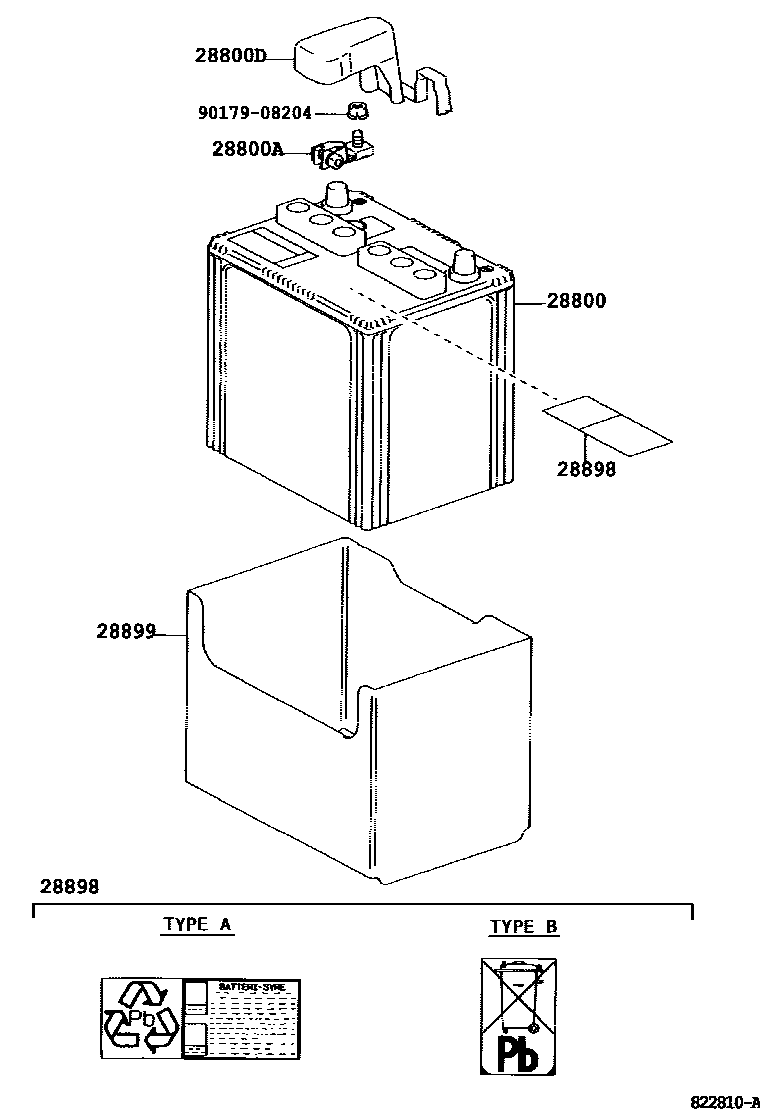

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16160i3ZZFE,4ZZFE..ZZE12#..JPP..WG200110-200405

32B24L(S),MATSUSHITA

sub28800-74261

main28800-16160i3ZZFE,4ZZFE..ZZE12#..JPP200405-200508

32B24L(S)

sub28800-74261

main28800-17121i1CDFTV..CDE120..JPP200110-200405

80D26L,FURUKAWA

sub28800-38080

main28800-42042i1NDTV..NDE120..JPP200408-200610

55D23L,YUASA

sub28800-42041

main28800-42061i1NDTV..NDE120..JPP200408-200610

55D23L,FURUKAWA

sub28800-42062

main28800-54020i1CDFTV..CDE120..JPP200110-200610

80D26L,YUASA

sub28800-67102

main28800-54370i1CDFTV..CDE120..JPP200110-200405

95D31L,MATSUSHITA

sub28800-54371

main28800-70070i3ZZFE,4ZZFE..ZZE12#..JPP200110-200610

50D20L,YUASA

main28800-70091i3ZZFE,4ZZFE..ZZE12#..JPP200405-200610

50D20L,MATSUSHITA

main28800-70101i3ZZFE,4ZZFE..ZZE12#..JPP200405-200610

50D20L,FURUKAWA

main28800-74261i3ZZFE,4ZZFE..ZZE12#..JPP200508-200610

46B24L(S)

sub28800-20060

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i3ZZFE,4ZZFE..ZZE12#..JPP..SED200110-200405

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12500i3ZZFE,4ZZFE..ZZE12#..JPP..WG200110-200405

main82821-52060i1NDTV..NDE120..JPP200110-200405

28898PLATE, BATTERY

main28898-16020i3ZZFE,4ZZFE..ZZE12#..JPP..SED200110-200405

TYPE B:REFER TO ILLUSTRATION

main28898-46010i1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE12#..JPP..LHD..WG200110-200603

TYPE A:REFER TO ILLUSTRATION

main28898-46020i1CDFTV..CDE120..JPP200110-200405

TYPE B:REFER TO ILLUSTRATION

28899INSULATOR, BATTERY

main28899-27040i1NDTV..NDE120..JPP200408

main28899-54050i1CDFTV..CDE120..JPP200110-200405

W(BATTERY=95D31L)

main28899-64110i1CDFTV..CDE120..JPP200110-200405

W(BATTERY=80D26L)

main28899-64110i1NDTV..NDE120..JPP200408

COLD SPEC

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section
