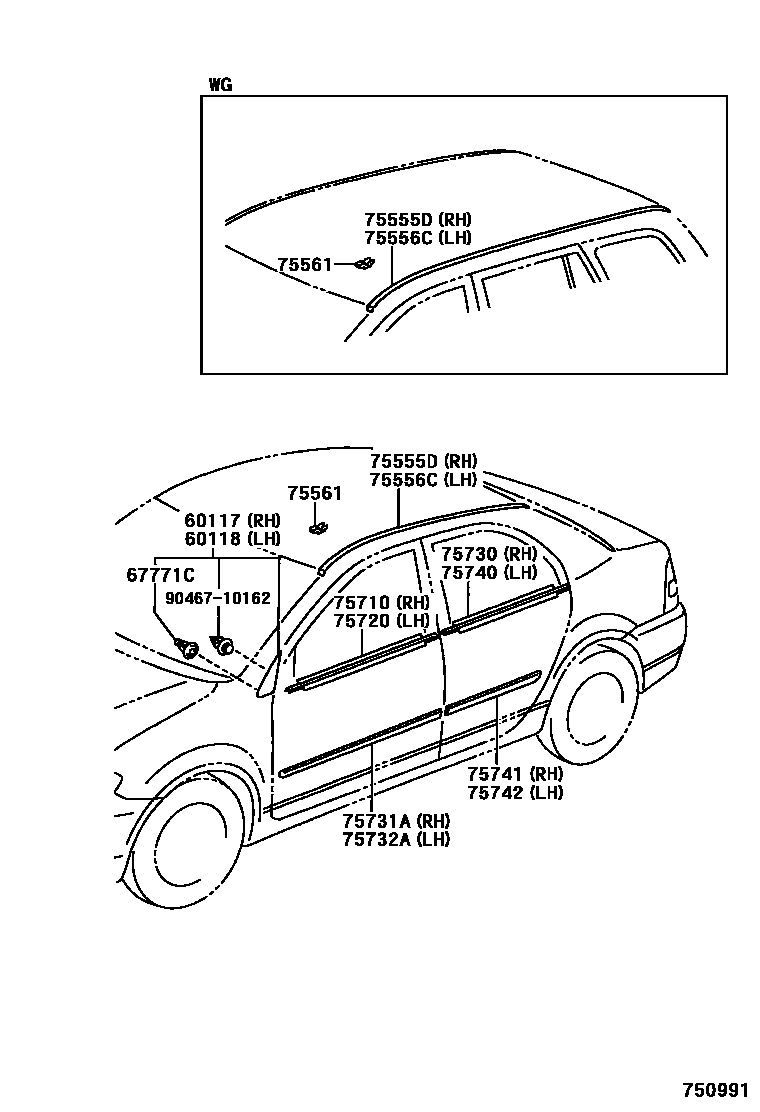

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-12010iCDE120,ZZE12#..JPP..WG200110-200405

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-12010iCDE120,ZZE12#..JPP..WG200110-200405

67771CRETAINER, FRONT PILLAR COVER

main67772-95J03×2iCDE120,ZZE12#..JPP..WG200110-200405

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-12100iZZE12#..JPP..LHD..SED200110-200309

main75555-12120iNDE120,ZZE12#..JPP200405

main75555-13010iCDE120,ZZE12#..JPP..WG200110-200308

main75555-13011iCDE120,ZZE12#..JPP..WG200309-200405

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-12100iZZE12#..JPP..LHD..SED200110-200309

main75556-12120iZZE12#..JPP..SED200309-200405

main75556-13010iCDE120,ZZE12#..JPP..WG200110-200309

main75556-13011iCDE120,ZZE12#..JPP..WG200309-200405

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020×4iCDE120,ZZE12#..JPP..WG200110-200405

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12740iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200301

main75710-12741iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200301-200309

main75710-12742iCDE120,ZZE12#..JPP..WG200309-200405

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12740iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200301

main75720-12741iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200301-200309

main75720-12742iNDE120,ZZE12#..JPP200405

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12260iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200301

main75730-12261iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200301-200309

main75730-12262iCDE120,ZZE12#..JPP..WG200309-200405

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-13170iNDE120,ZZE12#..JPP..TERRA200405

BLACK(LESS COLOR)

main75731-13180-A0iCDE120,ZZE12#..JPP..WG200110-200405

SUPER WHITE 2,040

main75731-13180-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY M.M.,1C3

main75731-13180-B1iCDE120,ZZE12#..JPP..WG200110-200405

SILVER ME.,199

main75731-13180-B2iNDE120,ZZE12#..JPP200405

SILVER ME.,1C0

main75731-13180-C0iCDE120,ZZE12#..JPP..WG200110-200405

BLACK MC.,209

main75731-13180-D0iNDE120,ZZE12#..JPP200405

SUPER RED II,3E5

main75731-13180-D1iCDE120,ZZE12#..JPP..WG200110-200405

RED M.M.,3N8

main75731-13180-D2iNDE120,ZZE12#..JPP200405

DK. RED M.M.,3Q3

main75731-13180-G0iCDE120,ZZE12#..JPP..WG200110-200405

DARK GREEN MC.,6R4

main75731-13180-G1iNDE120,ZZE12#..JPP200405

DK.GREEN M.M.,6S3

main75731-13180-J0iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE M.M.,8P4

main75731-13180-J1iCDE120,ZZE12#..JPP..WG200110-200405

GRAYISH BLUE M.M.,8Q3

main75731-13180-J2iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE,8Q4

main75731-13180-J3iNDE120,ZZE12#..JPP200405

LT.BLUE M.M.,8S1

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-13170iZZE12#..JPP..SED..TERRA200110-200405

BLACK(LESS COLOR)

main75732-13180-A0iCDE120,ZZE12#..JPP..WG200110-200405

SUPER WHITE 2,040

main75732-13180-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY M.M.,1C3

main75732-13180-B1iCDE120,ZZE12#..JPP..WG200110-200405

SILVER ME.,199

main75732-13180-B2iNDE120,ZZE12#..JPP200405

SILVER ME.,1C0

main75732-13180-C0iCDE120,ZZE12#..JPP..WG200110-200405

BLACK MC.,209

main75732-13180-D0iCDE120,ZZE12#..JPP..WG200110-200405

SUPER RED II,3E5

main75732-13180-D1iCDE120,ZZE12#..JPP..WG200110-200405

RED M.M.,3N8

main75732-13180-D2iNDE120,ZZE12#..JPP200405

DK. RED M.M.,3Q3

main75732-13180-G0iCDE120,ZZE12#..JPP..WG200110-200405

DARK GREEN MC.,6R4

main75732-13180-G1iNDE120,ZZE12#..JPP200405

DK.GREEN M.M.,6S3

main75732-13180-J0iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE M.M.,8P4

main75732-13180-J1iCDE120,ZZE12#..JPP..WG200110-200405

GRAYISH BLUE M.M.,8Q3

main75732-13180-J2iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE,8Q4

main75732-13180-J3iNDE120,ZZE12#..JPP200405

LT.BLUE M.M.,8S1

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12350iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200301

main75740-12351iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200301-200309

main75740-12352iCDE120,ZZE12#..JPP..WG200309-200405

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-13180iZZE12#..JPP..SED..TERRA200110-200405

BLACK(LESS COLOR)

main75741-13190-A0iCDE120,ZZE12#..JPP..WG200110-200405

SUPER WHITE 2,040

main75741-13190-B0iNDE120,ZZE12#..JPP200405

GRAY M.M.,1C3

main75741-13190-B1iCDE120,ZZE12#..JPP..WG200110-200405

SILVER ME.,199

main75741-13190-B2iNDE120,ZZE12#..JPP200405

SILVER ME.,1C0

main75741-13190-C0iCDE120,ZZE12#..JPP..WG200110-200405

BLACK MC.,209

main75741-13190-D0iCDE120,ZZE12#..JPP..WG200110-200405

SUPER RED II,3E5

main75741-13190-D1iCDE120,ZZE12#..JPP..WG200110-200405

RED M.M.,3N8

main75741-13190-D2iNDE120,ZZE12#..JPP200405

DK. RED M.M.,3Q3

main75741-13190-G0iCDE120,ZZE12#..JPP..WG200110-200405

DARK GREEN MC.,6R4

main75741-13190-G1iNDE120,ZZE12#..JPP200405

DK.GREEN M.M.,6S3

main75741-13190-J0iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE M.M.,8P4

main75741-13190-J1iCDE120,ZZE12#..JPP..WG200110-200405

GRAYISH BLUE M.M.,8Q3

main75741-13190-J2iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE,8Q4

main75741-13190-J3iNDE120,ZZE12#..JPP200405

LT.BLUE M.M.,8S1

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-13170iZZE12#..JPP..SED..TERRA200110-200405

BLACK(LESS COLOR)

main75742-13180-A0iCDE120,ZZE12#..JPP..WG200110-200405

SUPER WHITE 2,040

main75742-13180-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY M.M.,1C3

main75742-13180-B1iCDE120,ZZE12#..JPP..WG200110-200405

SILVER ME.,199

main75742-13180-B2iNDE120,ZZE12#..JPP200405

SILVER ME.,1C0

main75742-13180-C0iCDE120,ZZE12#..JPP..WG200110-200405

BLACK MC.,209

main75742-13180-D0iCDE120,ZZE12#..JPP..WG200110-200405

SUPER RED II,3E5

main75742-13180-D1iCDE120,ZZE12#..JPP..WG200110-200405

RED M.M.,3N8

main75742-13180-D2iNDE120,ZZE12#..JPP200405

DK. RED M.M.,3Q3

main75742-13180-G0iCDE120,ZZE12#..JPP..WG200110-200405

DARK GREEN MC.,6R4

main75742-13180-G1iNDE120,ZZE12#..JPP200405

DK.GREEN M.M.,6S3

main75742-13180-J0iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE M.M.,8P4

main75742-13180-J1iCDE120,ZZE12#..JPP..WG200110-200405

GRAYISH BLUE M.M.,8Q3

main75742-13180-J2iCDE120,ZZE12#..JPP..WG200110-200405

DK.BLUE,8Q4

main75742-13180-J3iNDE120,ZZE12#..JPP200405

LT.BLUE M.M.,8S1

9046710162

main90467-10162

15 parts on this diagram · 1 diagram in section
