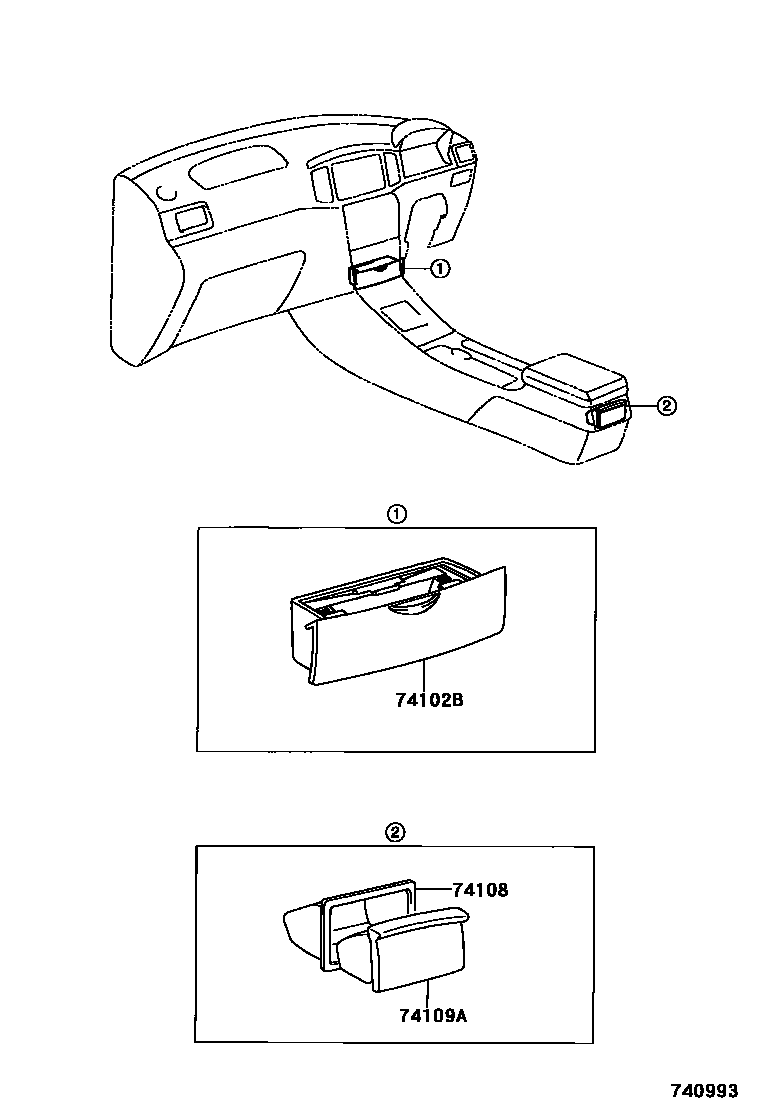

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12350-B0iCDE120,ZZE12#..JPP..TERRA200110-200209

DARK GRAY,TRIM1#

sub74102-12380

main74102-12360-B0iCDE120,ZZE12#..JPP..SOL200110-200209

GRAPHIC CARBON,TRIM1#

sub74102-12390

main74102-12380-B0iCDE120,ZZE12#..JPP..TERRA200209-200405

DARK GRAY,TRIM1#

sub74102-12380

main74102-12390-B0iCDE120,ZZE12#..JPP..SOL200209-200405

GRAPHIC CARBON,TRIM1#

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-28010iCDE120,ZZE12#..JPP200110-200209

main74135-20090iCDE120,ZZE12#..JPP200209-200405

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-20100-B2iCDE120,ZZE12#..JPP200209-200405

DK.GRAY,TRIM1#

sub74109-20100

main74109-28010-B3iNDE120,ZZE12#..JPP200110-200209

DK.GRAY,TRIM1#

sub74109-28010

3 parts on this diagram · 1 diagram in section
