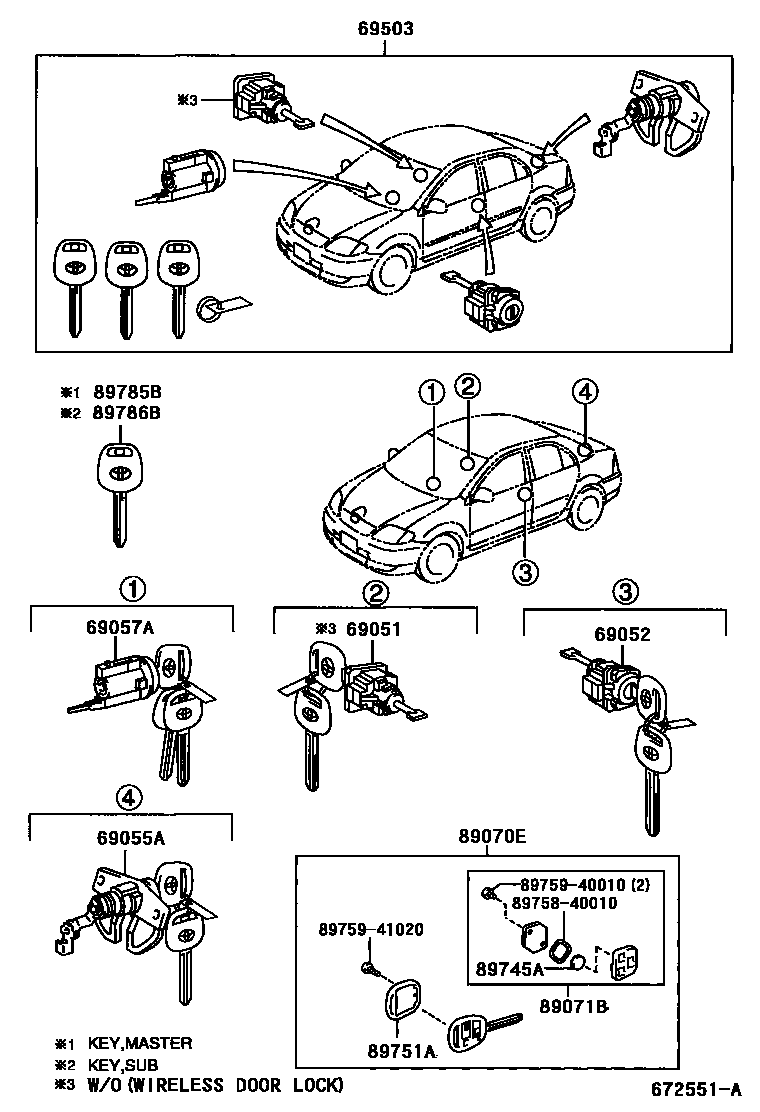

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0W010iZZE121..JPP;NDE120,ZZE120..JPP..TERRA200405

main69051-13230iZZE121..JPP..WG;CDE120,ZZE120..JPP..WG..TERRA¥4,010200110-200405

main69051-13240iCDE120,ZZE121..JPP..RHD¥4,010200110-200405

W(KEY LESS ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0W010iNDE120,ZZE12#..JPP200405

main69052-12600iCDE120,ZZE12#..JPP¥4,010200110-200405

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-02070iNDE120,ZZE12#..JPP200405

main69055-1A410iZZE12#..JPP..SED¥4,010200110-200405

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12580iZZE121..JPP..WG;ZZE121..JPP..SED..TERRA;CDE120,ZZE120..JPP..TERRA200110-200405

sub69057-52190¥13,400

main69057-12590iCDE120,ZZE12#..JPP200110-200405

W(KEY LESS ENTRY)

sub69057-52290¥7,100

69503CYLINDER SET, LOCK

main69005-13680iCDE120,ZZE121..JPP..RHD200110-200405

W(KEY LESS ENTRY & POWER DOOR LOCK)

sub69005-13681

main69005-13690iCDE120,ZZE121..JPP..RHD200110-200405

W(KEY LESS ENTRY & POWER DOOR LOCK & DOUBLE LOCK)

sub69005-13691

main69005-13700iZZE121..JPP..WG;CDE120,ZZE120..JPP..WG..TERRA200110-200405

main69005-13710iCDE120,ZZE12#..JPP..LHD..WG200110-200405

W(KEY LESS ENTRY & POWER DOOR LOCK)

sub69005-13711

main69005-1E440iZZE12#..JPP..SED..TERRA200110-200405

main69005-1E620iZZE12#..JPP..SED200110-200405

W(KEY LESS ENTRY & POWER DOOR LOCK)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0D020iNDE120,ZZE12#..JPP200405

main89070-44090iCDE120,ZZE12#..JPP200110-200405

sub89070-42211

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-0D010iNDE120,ZZE12#..JPP200405

main89071-60081iCDE120,ZZE12#..JPP¥16,500200110-200405

89745ABATTERY, TRANSMITTER

main89745-40010iCDE120,ZZE12#..JPP¥440200110-200405

89751ACOVER, TRANSMITTER HOUSING

main89751-13010iCDE120,ZZE12#..JPP¥940200110-200405

sub89751-13012¥670

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-05030iZZE121..JPP;NDE120,ZZE120..JPP..TERRA200405

main89785-26020iZZE121..JPP..WG;ZZE121..JPP..SED..TERRA;CDE120,ZZE120..JPP..TERRA¥3,720200110-200405

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-05030iNDE120,ZZE12#..JPP200405

main89786-60050iCDE120,ZZE12#..JPP¥3,720200110-200405

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010¥220

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010¥120

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020¥100

14 parts on this diagram · 4 diagrams in section
