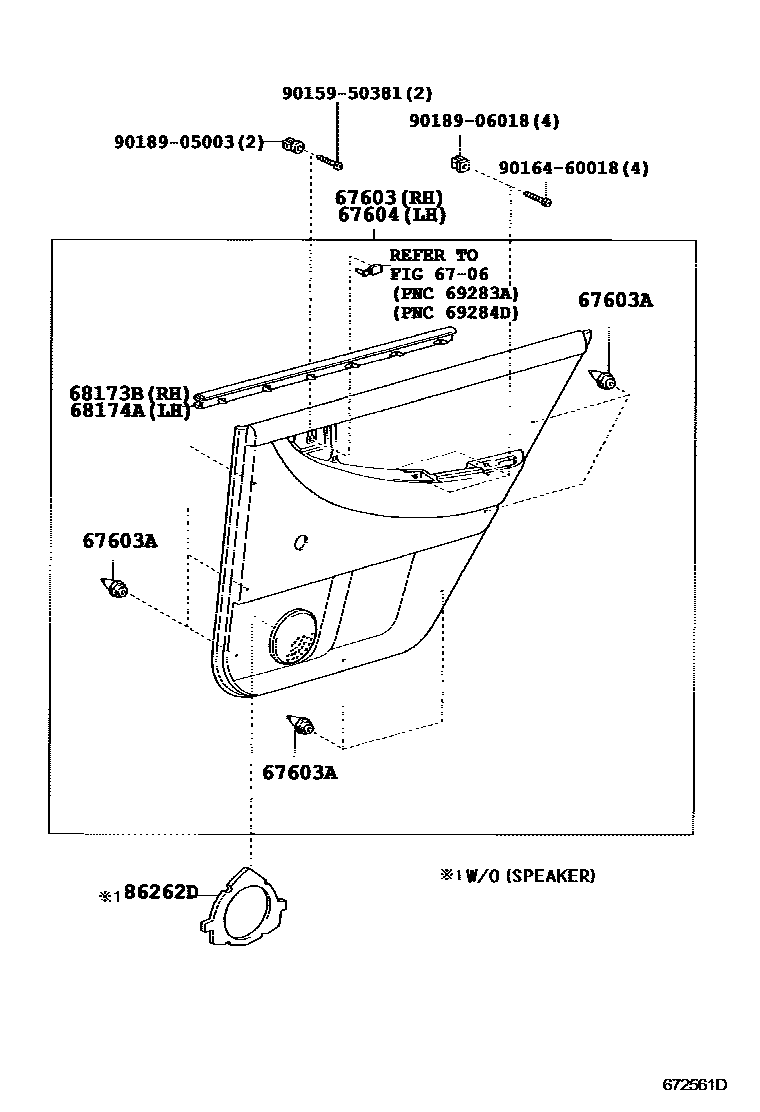

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

6706

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-13810-B0iCDE120,ZZE12#..JPP..WG..TERRA200110-200405

DARK GRAY,TRIM1#

sub67630-13810

main67630-13820-B0iCDE120,ZZE12#..JPP..WG..SOL200110-200405

DARK GRAY,TRIM1#

sub67630-13820

main67630-13850-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

DK.GRAY,TRIM1#

sub67630-13850

main67630-13A00-B0iZZE12#..JPP..SOL200405-200610

DK.GRAY,TRIM1#

sub67630-13A01

main67630-13A20-B0iNDE120,ZZE12#..JPP..TERRA200405-200610

W(POWER WINDOW),DK.GRAY,TRIM1#

main67630-1K230-B0iZZE12#..JPP..SED..SOL200110-200405

DARK GRAY,TRIM1#

main67630-1K240-B0iZZE12#..JPP..SED..TERRA200110-200405

DARK GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12050iCDE120,ZZE12#..JPP200110-200405

main90467-10161iNDE120,ZZE12#..JPP200405-200610

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-13810-B0iCDE120,ZZE12#..JPP..WG..TERRA200110-200405

DARK GRAY,TRIM1#

sub67640-13810

main67640-13820-B0iCDE120,ZZE12#..JPP..WG..SOL200110-200405

DARK GRAY,TRIM1#

sub67640-13820

main67640-13850-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

DK.GRAY,TRIM1#

sub67640-13850

main67640-13A00-B0iZZE12#..JPP..SOL200405-200610

DK.GRAY,TRIM1#

sub67640-13A01

main67640-13A20-B0iNDE120,ZZE12#..JPP..TERRA200405-200610

W(POWER WINDOW),DK.GRAY,TRIM1#

main67640-1K230-B0iZZE12#..JPP..SED..SOL200110-200405

DARK GRAY,TRIM1#

main67640-1K240-B0iZZE12#..JPP..SED..TERRA200110-200405

DARK GRAY,TRIM1#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-12270iCDE120,ZZE12#..JPP200110-200207

main68173-12290iCDE120,ZZE12#..JPP200207-200405

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-12130iCDE120,ZZE12#..JPP200110-200207

main68174-12150iCDE120,ZZE12#..JPP200207-200405

86262DCOVER, REAR DOOR SPEAKER

main86262-12010iZZE121..JPP..SED..4FC..SOL200110-200405

9015950381

main90159-50381

9016460018

main90164-60018

9018905003

main90189-05003

9018906018

main90189-06018

11 parts on this diagram · 3 diagrams in section
