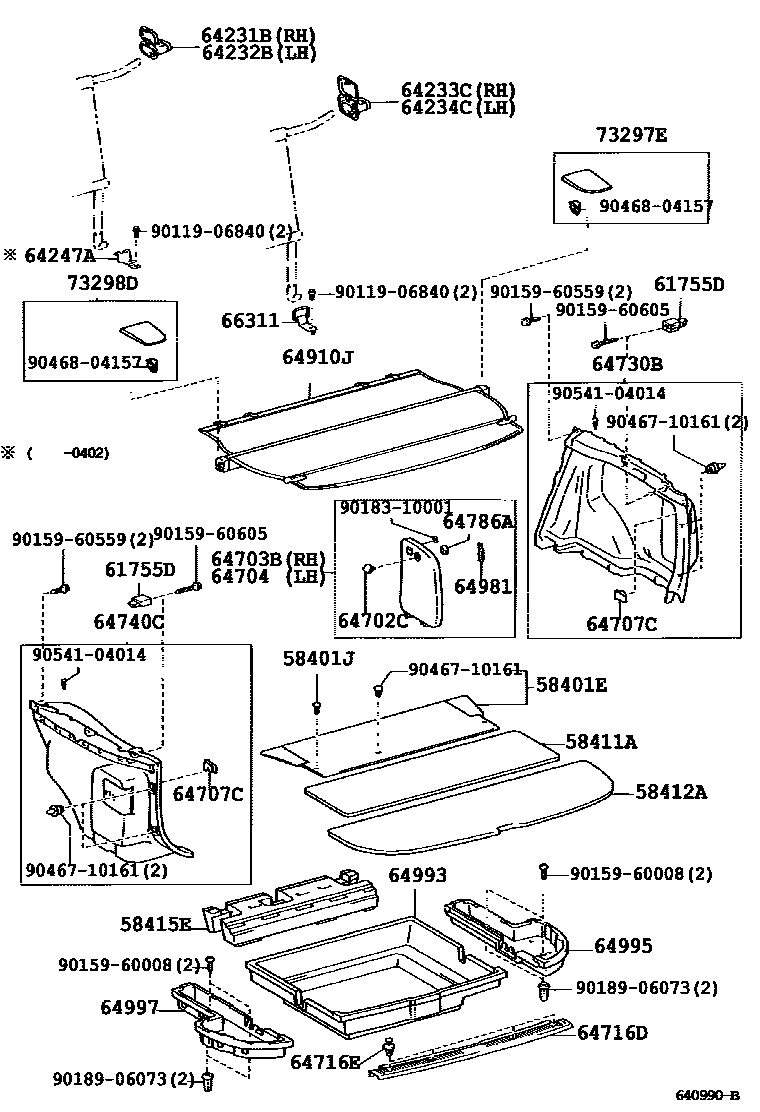

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58401-13060-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY,TRIM1#

58401JCLIP(FOR DECK BOAD)

main90467-06048-P1iCDE120,ZZE12#..JPP..WG200110-200405

DK.GRAY,TRIM1#

sub90467-06048¥120

58411ABOARD, DECK, NO.1

main58411-13130-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY,TRIM1#

58412ABOARD, DECK, NO.2

main58412-13080-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY,TRIM1#

58415EBOARD, REAR FLOOR, NO.1

main58415-13070iCDE120,ZZE12#..JPP..WG¥5,300200110-200405

61755DRETAINER, DECK SIDE TRIM, UPPER

main61755-32020iCDE120,ZZE12#..JPP..WG¥360200110-200405

64231BHOOK, ROOM PARTITION NET, FRONT RH

main64231-13030-B0iCDE120,ZZE12#..JPP..WG200110-200405

LT.GRAY,TRIM1#

sub64231-13030¥800

64232BHOOK, ROOM PARTITION NET, FRONT LH

main64232-13020-B0iCDE120,ZZE12#..JPP..WG200110-200405

LT.GRAY,TRIM1#

sub64232-13020¥800

64233CHOOK, ROOM PARTITION NET, REAR RH

main64233-13020-B0iCDE120,ZZE12#..JPP..WG200110-200405

LT.GRAY,TRIM1#

sub64233-13020¥890

64234CHOOK, ROOM PARTITION NET, REAR LH

main64234-13020-B0iCDE120,ZZE12#..JPP..WG200110-200405

LT.GRAY,TRIM1#

sub64234-13020¥890

64247ABRACKET, CENTER PILLAR GARNISH, RH

main64247-13010iCDE120,ZZE12#..JPP..WG¥540200110-200402

64702CKNOB, WASHER TANK COVER

main64982-16020-B6iCDE120,ZZE12#..JPP..WG200110-200405

DK.GRAY,TRIM1#

sub64982-16020¥260

64703BPANEL ASSY, DECK TRIM SIDE, RH

main64073-13010-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY,TRIM1#

64707CKNOB, JACK COVER

main64769-13020-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY,TRIM1#

sub64769-13020¥310

64716DCOVER, DECK TRIM, REAR

main64716-13120-B0iCDE120,ZZE12#..JPP..WG200110-200405

DK.GRAY,TRIM1#

sub64716-13120¥10,000

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07152-B4iCDE120,ZZE12#..JPP..WG200110-200405

DK.GRAY,TRIM1#

sub90467-07152¥100

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-13240-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-13170-B0iCDE120,ZZE12#..JPP..WG200110-200405

GRAY,TRIM1#

64786APLATE, JACK COVER

main64786-20010iCDE120,ZZE12#..JPP..WG¥390200110-200405

64910JCOVER ASSY, TONNEAU

main64910-13022-B0iCDE120,ZZE12#..JPP..WG200110-200405

DK.GRAY,TRIM1#

sub64910-13022¥38,100

sub64910-13023¥38,100

64981STOPPER, WASHER TANK COVER

main64981-16021iCDE120,ZZE12#..JPP..WG¥320200110-200405

64993BOX, DECK FLOOR, REAR

main64993-13020iCDE120,ZZE12#..JPP..WG¥27,100200110-200405

64995BOX, DECK FLOOR, RH

main64995-13010iCDE120,ZZE12#..JPP..WG¥13,600200110-200405

64997BOX, DECK FLOOR, LH

main64997-13010iCDE120,ZZE12#..JPP..WG¥13,600200110-200405

66311HOOK, ROPE

main66310-13010iCDE120,ZZE12#..JPP..WG¥1,000200110-200405

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-13030-B0iCDE120,ZZE12#..JPP..WG200110-200405

DK.GRAY,TRIM1#

sub73297-13030¥1,360

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-13030-B0iCDE120,ZZE12#..JPP..WG200110-200405

DK.GRAY,TRIM1#

sub73298-13030¥1,360

9011906840

main90119-06840¥60

9015960008

main90159-60008¥70

9015960559

main90159-60559¥90

9015960605

main90159-60605¥90

9018310001

main90183-10001¥90

9018906073

main90189-06073¥90

9046710161

main90467-10161¥90

9046804157

main90468-04157¥80

9054104014

main90541-04014¥100

36 parts on this diagram · 1 diagram in section
