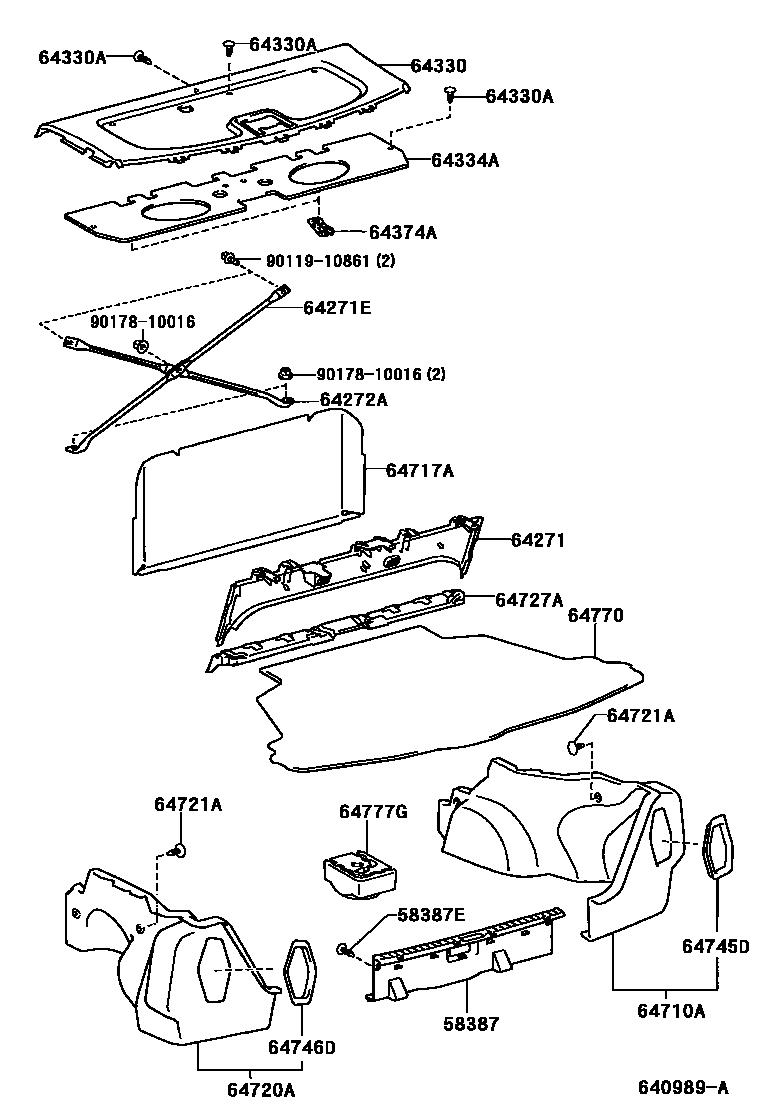

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-12060-B0iZZE12#..JPP..SED200110-200405

DK.GRAY,TRIM1#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iZZE12#..JPP..SED200110-200405

BLACK,TRIM1#

sub90467-05096¥130

main90467-05096-22iNDE120,ZZE12#..JPP200405

BLACK

sub90467-05096¥130

64271BOARD, ROOM PARTITION, NO.1

main64271-12180-C0iZZE12#..JPP..SED200110-200405

BLACK,TRIM1#

sub64271-12180¥6,100

64271EPANEL, ROOM PARTITION

main64241-12020iZZE12#..JPP..LHD..SED..TERRA¥5,900200110-200201

sub64241-12030¥5,900

main64241-12030iZZE12#..JPP..SED..TERRA¥5,900200201-200405

64272APANEL, ROOM PARTITION, LH

main64242-12021iZZE12#..JPP..SED..TERRA¥6,000200110-200405

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1E150-B0iZZE12#..JPP..SED200110-200405

DARK GRAY,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-B6iZZE12#..JPP..SED..TERRA200305-200405

DK.GRAY,TRIM10

sub90467-06020¥190

main90467-06020-B6iZZE12#..JPP..SED..TERRA200305-200405

W(FOLDING REAR SEAT),DK.GRAY,TRIM10

sub90467-06020¥190

main90467-06020-B6iNDE120,ZZE12#..JPP200405

DK.GRAY,TRIM1#

sub90467-06020¥190

main90467-06061-B2iZZE12#..JPP..SED..TERRA200110-200305

DK.GRAY,TRIM1#

sub90467-06061¥120

sub90467-06020¥190

main90467-06061-B2iZZE12#..JPP..SED..TERRA200110-200305

W(FOLDING REAR SEAT),DK.GRAY,TRIM1#

sub90467-06061¥120

sub90467-06020¥190

64334APAD, PACKAGE TRAY TRIM

main64334-12360iZZE12#..JPP..SED¥1,410200110-200405

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-12020iZZE12#..JPP..SED..TERRA¥500200110-200405

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-12010-C0iZZE12#..JPP..SED200110-200405

BLACK,TRIM1#

main64710-12030-C0iNDE120,ZZE12#..JPP200405

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12100-C0iZZE12#..JPP..SED..TERRA200110-200309

BLACK,TRIM1#

sub64717-12101¥4,660

main64717-12101-C0iNDE120,ZZE12#..JPP..TERRA200309-200405

BLACK,TRIM1#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-12010-C0iZZE12#..JPP..SED200110-200405

BLACK,TRIM1#

main64720-12030-C0iNDE120,ZZE12#..JPP200405

BLACK,TRIM1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iZZE12#..JPP..SED200110-200405

BLACK,TRIM1#

sub90467-05096¥130

main90467-05096-22iNDE120,ZZE12#..JPP200405

BLACK

sub90467-05096¥130

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12020iZZE12#..JPP..SED¥8,800200110-200405

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12120-C0iZZE12#..JPP..SED200110-200405

BLACK,TRIM1#

main64745-12150-C0iNDE120,ZZE12#..JPP200405

BLACK,TRIM1#

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64745-12120-C0iZZE12#..JPP..SED200110-200405

BLACK,TRIM1#

main64745-12150-C0iNDE120,ZZE12#..JPP200405

BLACK,TRIM1#

64770COVER ASSY, SPARE WHEEL

main64771-12220-C0iZZE12#..JPP..SED200110-200309

BLACK,TRIM1#

sub64771-12221¥5,400

main64771-12221-C0iZZE12#..JPP..SED200309-200405

BLACK,TRIM1#

main64771-12230-C0iNDE120,ZZE12#..JPP200405

BLACK,TRIM1#

64777GCUSHION, SPARE WHEEL

main64777-12030iZZE120..JPP..TERRA¥880200405

main64777-12030-B0iZZE120..JPP..SED..TERRA200110-200405

SHADOW GRAY,TRIM1#

sub64777-12030¥880

9011910861

main90119-10861¥180

9017810016

main90178-10016¥100

20 parts on this diagram · 2 diagrams in section
