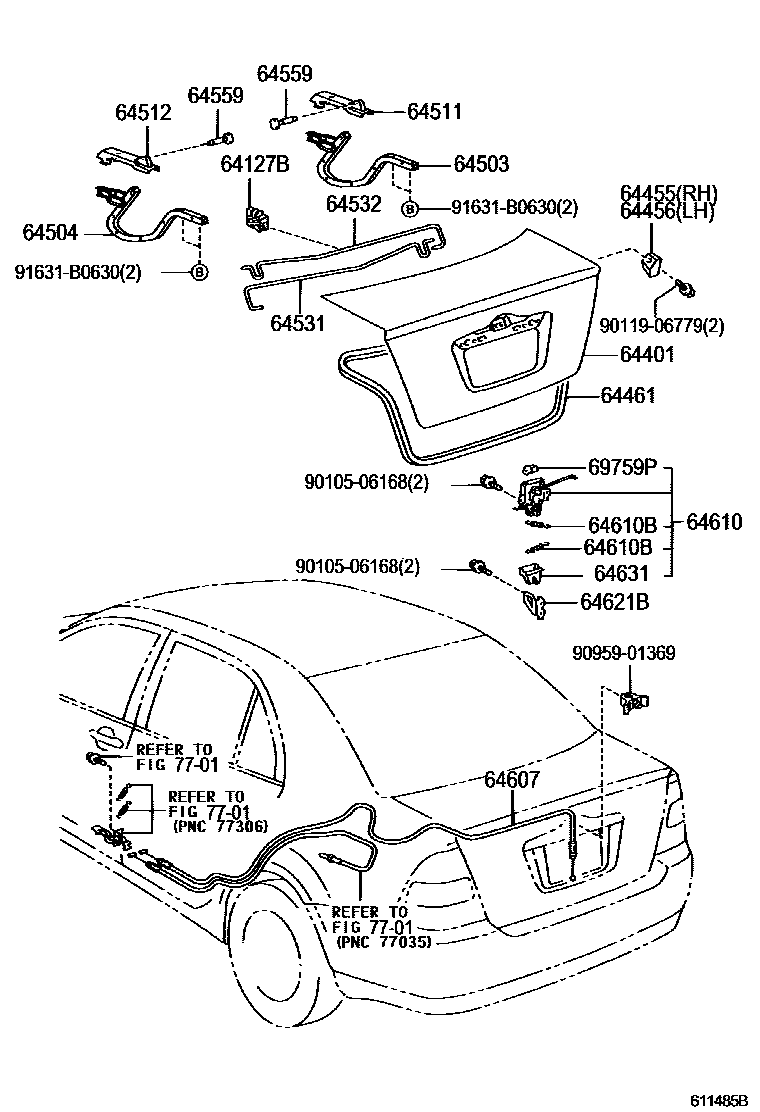

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610BSPRING, TENSION(FOR LOCK)
WD=0.55,CW=17.25
WD=0.55,CW=16.75
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64631PROTECTOR, LUGGAGE DOOR LOCK
69759PSNAP, DOOR LOCK CONTROL LINK
7701
9010506168
main90105-06168
9011906779
main90119-06779
9095901369
main90959-01369
91631B0630
main91631-B0630
23 parts on this diagram · 3 diagrams in section
