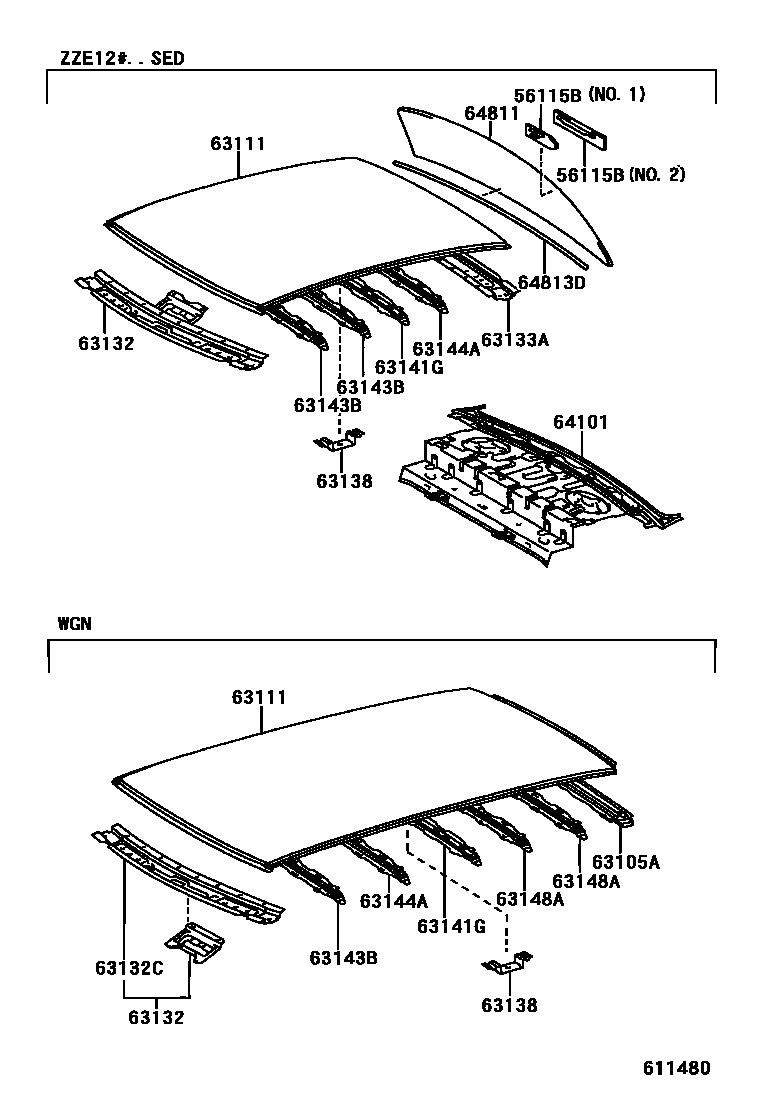

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
NO.1:REFER TO ILLUSTRATION
NO.1
NO.2
NO.2:REFER TO ILLUSTRATION
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
W(ROOF RAIL)
63132PANEL, WINDSHIELD HEADER, INNER
63132CPANEL, WINDSHIELD HEADER, INNER
63133AFRAME, BACK WINDOW, UPPER
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
W(FOLDING REAR SEAT)
64811GLASS, BACK WINDOW
*EHT,T=3.1,GREEN
*EHT,T=3.1,GREEN
*EHT,T=3.1,GREEN,COLD AREA SPEC
64813DDAM, BACK WINDOW GLASS ADHESIVE
sub56117-47010
14 parts on this diagram · 2 diagrams in section
