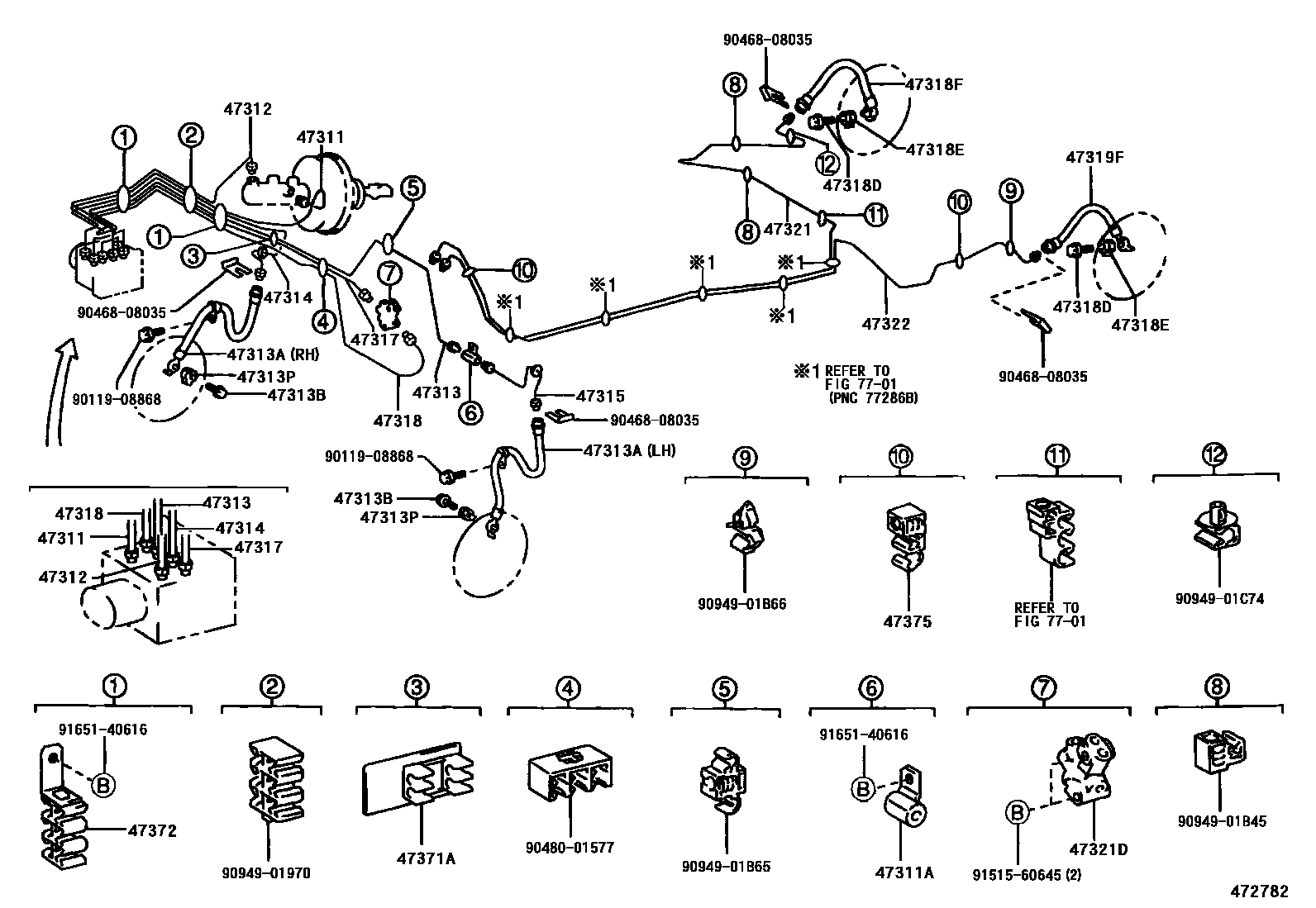

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(VSC) 0007 1W(VSC) 0008 1W(VSC) 0009 1 0010 1W/O(VSC) 0011 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-12680iCDE120,ZZE121..JPP..RHD¥1,320200110-200405

main47311-12810iCDE120,ZZE12#..JPP..LHD¥2,000200110-200405

main47311-13060iZZE12#..JPP..RHD¥1,320200405

main47311-13070iZZE12#..JPP..RHD¥2,550200405-200510

W(VSC)

main47311-13080iNDE120,ZZE12#..JPP..LHD¥1,820200405

main47311-13110iNDE120,ZZE12#..JPP..LHD¥3,620200405

W(VSC)

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10167iCDE120,ZZE121..JPP..RHD¥430200110-200405

main90412-10227iZZE12#..JPP..RHD¥780200405

47312TUBE, FRONT BRAKE, NO.2

main47312-12410iCDE120,ZZE121..JPP..RHD¥1,090200110-200405

main47312-12430iCDE120,ZZE12#..JPP..LHD¥2,170200110-200405

main47312-13050iZZE12#..JPP..RHD¥940200405

main47312-13060iZZE12#..JPP..RHD¥1,820200405-200510

W(VSC)

main47312-13100iNDE120,ZZE12#..JPP..LHD¥2,000200405

main47312-13110iNDE120,ZZE12#..JPP..LHD¥3,950200405

W(VSC)

47313TUBE, FRONT BRAKE, NO.3

main47313-12480iCDE120,ZZE121..JPP..RHD¥1,820200110-200405

main47313-12620iCDE120,ZZE12#..JPP..LHD¥2,000200110-200405

main47313-13030iZZE12#..JPP..RHD¥1,650200405

main47313-13040iZZE12#..JPP..RHD¥1,820200405-200510

W(VSC)

main47313-13050iNDE120,ZZE12#..JPP..LHD¥1,820200405

main47313-13080iNDE120,ZZE12#..JPP..LHD¥1,820200405

W(VSC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C47iCDE120,ZZE12#..JPP¥2,610200110-200405

RH

main90947-02C48iCDE120,ZZE12#..JPP¥2,610200110-200405

LH

main90947-02D22iNDE120,ZZE12#..JPP¥2,610200405

RH

main90947-02D23iNDE120,ZZE12#..JPP¥2,610200405

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iCDE120,ZZE12#..JPP¥220200110-200405

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iCDE120,ZZE12#..JPP¥280200110-200405

47314TUBE, FRONT BRAKE, NO.4

main47314-12420iCDE120,ZZE121..JPP..RHD¥1,470200110-200405

main47314-12440iCDE120,ZZE12#..JPP..LHD¥1,460200110-200405

main47314-13050iNDE120,ZZE12#..JPP¥1,320200405

main47314-13060iZZE12#..JPP..RHD¥1,470200405-200510

W(VSC)

main47314-13080iNDE120,ZZE12#..JPP..LHD¥1,470200405

W(VSC)

47315TUBE, FRONT BRAKE, NO.5

main47315-12490iCDE120,ZZE121..JPP..RHD¥750200110-200405

main47315-12510iCDE120,ZZE12#..JPP..LHD¥750200110-200405

main47315-13080iZZE12#..JPP..RHD¥750200405

main47315-13100iNDE120,ZZE12#..JPP..LHD¥750200405

47317TUBE, FRONT BRAKE, NO.7

main47317-12190iCDE120,ZZE121..JPP..RHD¥1,470200110-200405

main47317-12220iCDE120,ZZE12#..JPP..LHD¥1,460200110-200405

main47317-13030iZZE12#..JPP..RHD¥1,820200405

main47317-13040iZZE12#..JPP..RHD¥1,820200405-200510

W(VSC)

main47317-13050iNDE120,ZZE12#..JPP..LHD¥1,820200405

main47317-13060iNDE120,ZZE12#..JPP..LHD¥2,000200405

W(VSC)

47318TUBE, FRONT BRAKE, NO.8

main47318-12330iCDE120,ZZE121..JPP..RHD¥1,650200110-200405

main47318-12400iCDE120,ZZE12#..JPP..LHD¥1,820200110-200405

main47318-13070iZZE12#..JPP..RHD¥1,820200405

main47318-13080iZZE12#..JPP..RHD¥1,820200405-200510

W(VSC)

main47318-13090iNDE120,ZZE12#..JPP..LHD¥2,000200405

main47318-13100iNDE120,ZZE12#..JPP..LHD¥2,000200405

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10045iCDE120,ZZE12#..JPP¥330200110-200405

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iCDE120,ZZE12#..JPP¥280200110-200405

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C50iCDE120,ZZE12#..JPP¥1,490200110-200405

main90947-02E88iNDE120,ZZE12#..JPP200405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C50iCDE120,ZZE12#..JPP¥1,490200110-200405

main90947-02E88iNDE120,ZZE12#..JPP200405

47321TUBE, REAR BRAKE, NO.1

main47321-12280iCDE120,ZZE12#..JPP¥4,260200110-200405

main47321-13170iNDE120,ZZE12#..JPP¥3,780200405

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iCDE120,ZZE12#..JPP¥2,690200110-200405

47322TUBE, REAR BRAKE, NO.2

main47322-12400iCDE120,ZZE12#..JPP¥3,940200110-200405

main47322-13210iNDE120,ZZE12#..JPP¥3,240200405

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12230iCDE120,ZZE12#..JPP¥320200110-200405

47372CLAMP, BRAKE TUBE, NO.2

main47374-12050iCDE120,ZZE12#..JPP¥580200110-200405

47375CLAMP, BRAKE TUBE, NO.5

main77299-32030iCDE120,ZZE12#..JPP¥370200110-200405

7701

9011908868

main90119-08868¥70

9046808035

main90468-08035¥110

9048001577

main90480-01577¥350

9094901970

main90949-01970¥500

9094901B45

main90949-01B45¥220

9094901B65

main90949-01B65¥190

9094901B66

main90949-01B66¥110

9094901C74

main90949-01C74¥360

9151560645

main91515-60645¥110

9165140616

main91651-40616¥60

32 parts on this diagram · 11 diagrams in section
