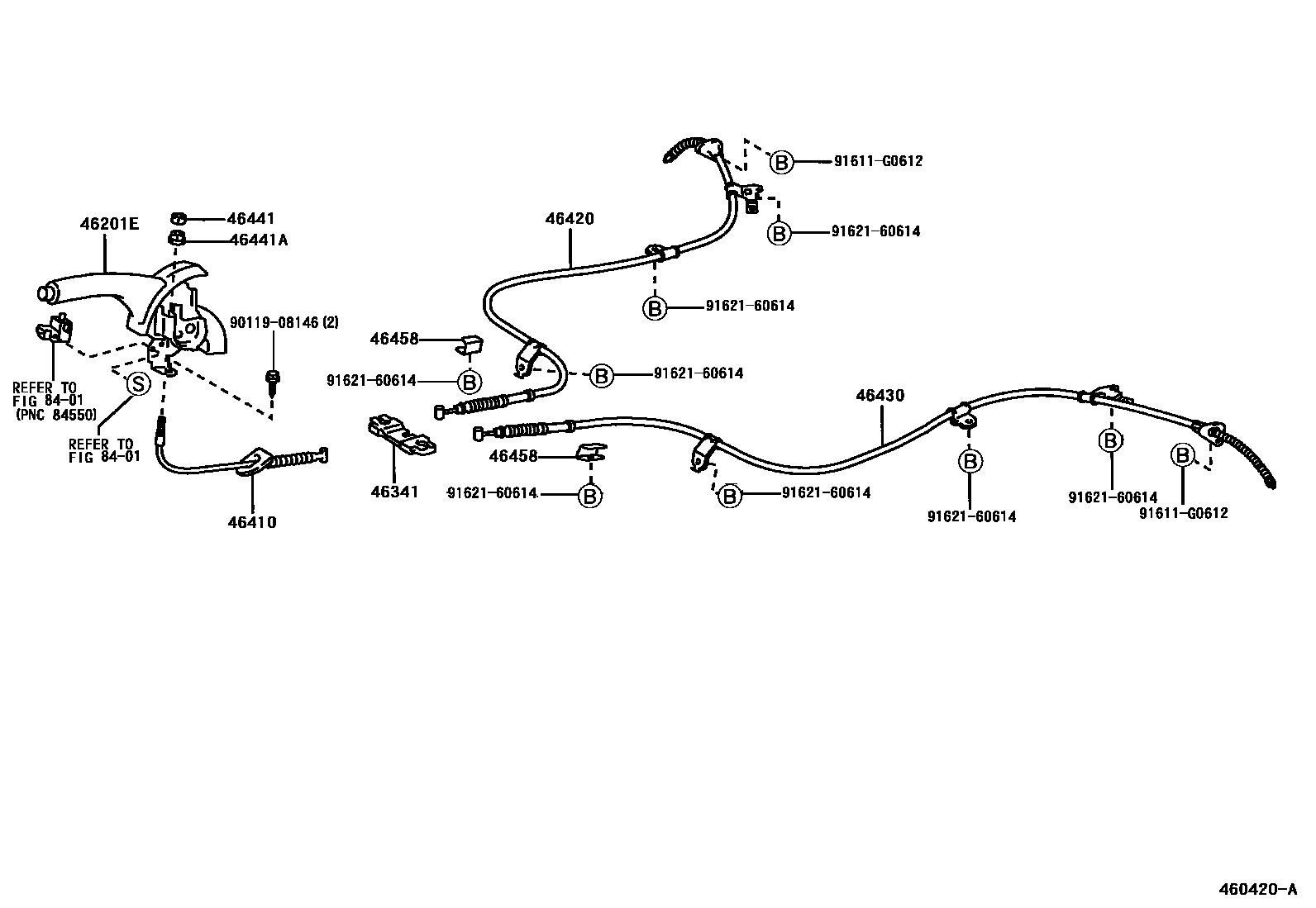

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12320-B0iZZE12#..JPP..RHD200110-200405

DK.GRAY,TRIM1#

main46201-12330-B0iCDE120,ZZE12#..JPP..LHD200110-200405

DK.GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-20070iCDE120,ZZE12#..JPP200110-200405

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12270iNDE120,ZZE12#..JPP200110-200405

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12490iCDE120,ZZE12#..JPP200110-200405

main46420-12541iNDE120,ZZE12#..JPP200405

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12400iCDE120,ZZE12#..JPP200110-200405

main46430-12441iNDE120,ZZE12#..JPP200405

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iCDE120,ZZE12#..JPP200110-200405

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iCDE120,ZZE12#..JPP200110-200405

46458RETAINER, CABLE

main46458-28010iCDE120,ZZE12#..JPP200110-200405

8401

9011908146

main90119-08146

91611G0612

main91611-G0612

9162160614

main91621-60614

12 parts on this diagram · 4 diagrams in section
