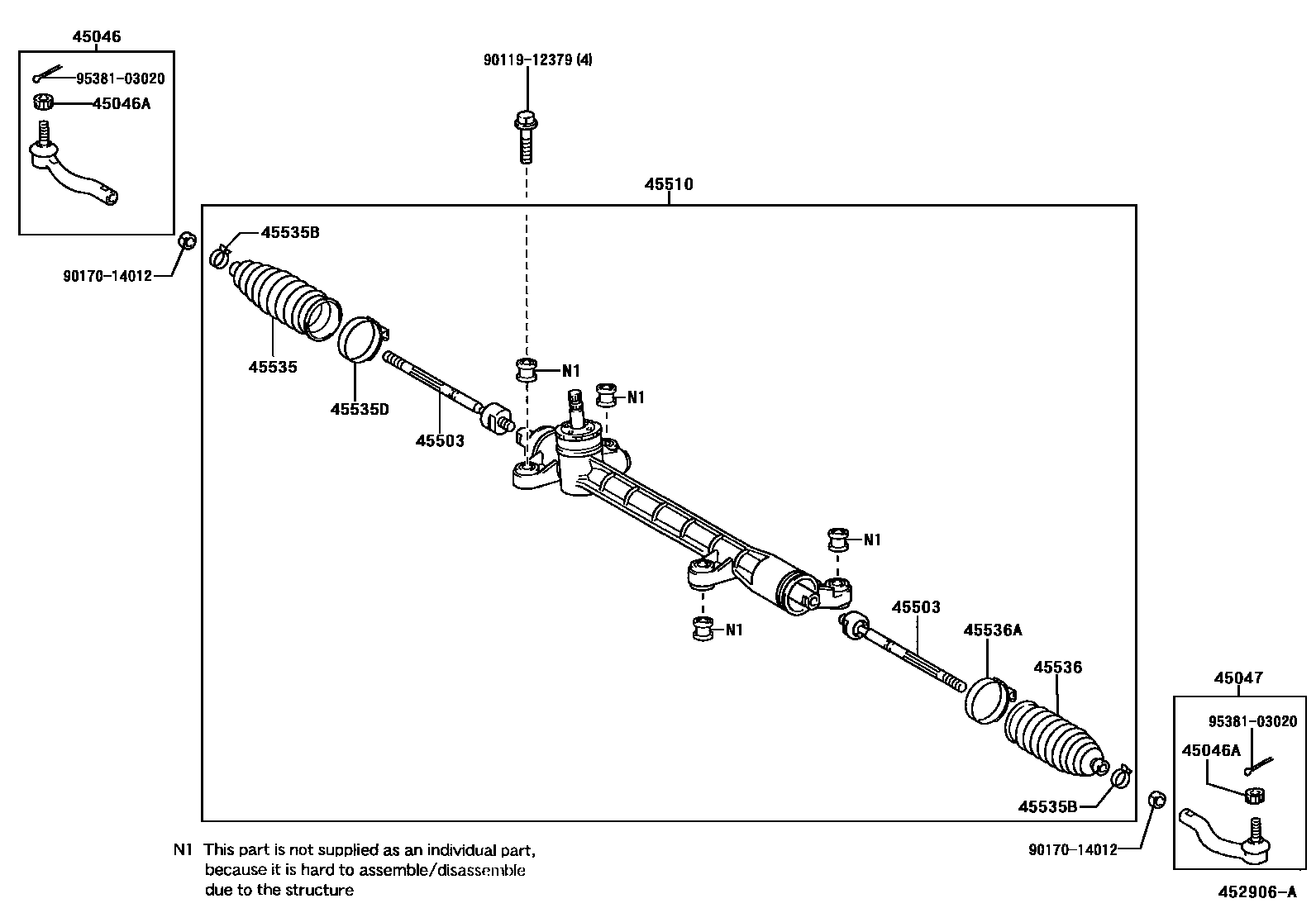

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09360iNDE120,ZZE12#..JPP200405

main45046-19265iCDE120,ZZE12#..JPP200110-200405

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCDE120,ZZE12#..JPP200110-200405

45047END SUB-ASSY, TIE ROD, LH

main45047-09150iNDE120,ZZE12#..JPP200405

main45047-19115iCDE120,ZZE12#..JPP200110-200405

45503END SUB-ASSY, STEERING RACK

main45503-02080iNDE120,ZZE12#..JPP200405

main45503-12130iCDE120,ZZE12#..JPP200110-200405

sub45503-12131

45510GEAR ASSY, STEERING

main45510-02060iZZE12#..JPP..RHD200405

main45510-02070iNDE120,ZZE12#..JPP..LHD200405

main45510-12300iCDE120,ZZE121..JPP..RHD200110-200405

main45510-12310iCDE120,ZZE12#..JPP..LHD200110-200405

45535BOOT, STEERING RACK, NO.1

main45535-02050iNDE120,ZZE12#..JPP200405

main45535-52060iCDE120,ZZE12#..JPP200110-200405

45535BCLIP(FOR STEERING RACK BOOT)

main90466-22003iNDE120,ZZE12#..JPP200405

main90467-19017iCDE120,ZZE12#..JPP200110-200204

sub90467-19021

main90467-19021iCDE120,ZZE12#..JPP200204-200405

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-57006iNDE120,ZZE12#..JPP200405

main90460-58008iCDE120,ZZE12#..JPP200110-200405

45536BOOT, STEERING RACK, NO.2

main45535-02050iNDE120,ZZE12#..JPP200405

main45535-52060iCDE120,ZZE12#..JPP200110-200405

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-57006iNDE120,ZZE12#..JPP200405

main90460-58008iCDE120,ZZE12#..JPP200110-200405

9011912379

main90119-12379

9017014012

main90170-14012

9538103020

main95381-03020

13 parts on this diagram · 4 diagrams in section
