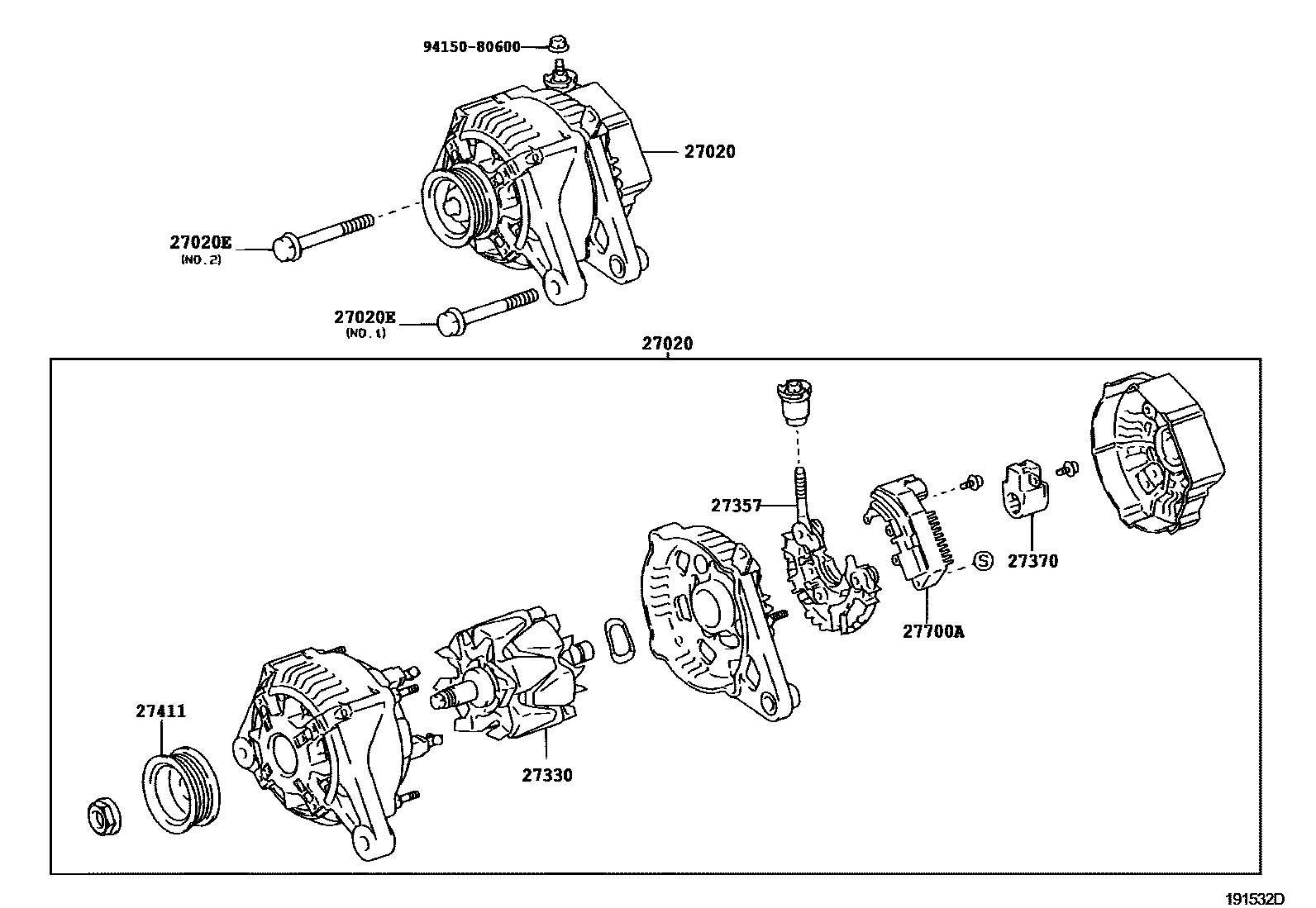

ALTERNATOR

0001 112V 70A,80A 0002 112V 90A,130A 0003 112V 100A

27020ALTERNATOR ASSY

main27060-22030i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

12V 80A

main27060-22140i3ZZFE,4ZZFE..ZZE12#..JPP..5F200110-200405

12V 70A

main27060-27060i1CDFTV..CDE120..JPP..LHD200110-200405

12V 90A

main27060-27070i1CDFTV..CDE120..JPP200110-200405

12V 130A

main27060-33071i1NDTV..NDE120..JPP200408

12V 100A

sub27060-33072

27020EBOLT(FOR ALTERNATOR)

main90105-10075i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

NO.1

main90105-10520i1NDTV..NDE120..JPP200408

main90901-05004i1CDFTV..CDE120..JPP200110-200405

main91511-80830i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

NO.2

27330ROTOR ASSY, ALTERNATOR

main27330-16390i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

12V 80A

main27330-20130i1CDFTV..CDE120..JPP200110-200405

12V 130A

sub27330-33090

main27330-30070i1NDTV..NDE120..JPP200408

12V 100A

main27330-67100i3ZZFE,4ZZFE..ZZE12#..JPP..5F200110-200405

12V 70A

main27330-74550i1CDFTV..CDE120..JPP..LHD200110-200405

12V 90A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-21060i3ZZFE,4ZZFE..ZZE12#..JPP..5F200110-200405

12V 70A

main27357-22050i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

12V 80A

main27357-22070i1CDFTV..CDE120..JPP..LHD200110-200405

12V 90A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1CDFTV..CDE120..JPP200110-200405

12V 130A

main27370-31220i1NDTV..NDE120..JPP200408

12V 100A

main27370-35060i3ZZFE,4ZZFE..ZZE12#..JPP..5F200110-200405

12V 70A

main27370-75060i3ZZFE,4ZZFE..ZZE12#..JPP200405

12V 80A

main27370-75060i3ZZFE..ZZE121..JPP;1CDFTV,4ZZFE..CDE120,ZZE120..JPP..LHD200110-200405

12V 80A,90A

27411PULLEY, ALTERNATOR

main27411-22080i3ZZFE,4ZZFE..ZZE12#..JPP..5F200110-200405

12V 70A

main27411-50050i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

12V 80A

27700AREGULATOR ASSY, GENERATOR

main27700-46060i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

main27700-64090i1CDFTV..CDE120..JPP..LHD200110-200405

9415080600

main94150-80600

8 parts on this diagram · 3 diagrams in section
