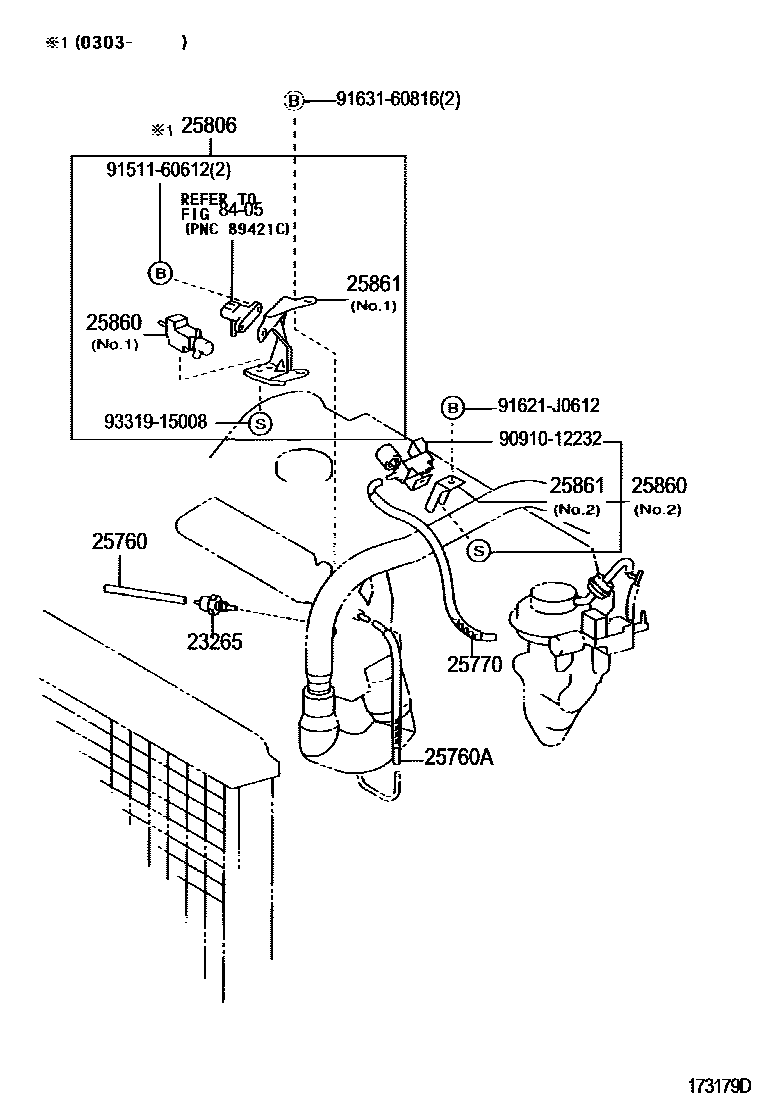

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23265FILTER, GAS, NO.1

main90917-11037i1CDFTV..CDE120..JPP¥1,210200110-200405

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-27050i1CDFTV..CDE120..JPP¥1,070200110-200405

main25760-33040i1NDTV..NDE120..JPP¥1,360200408

25760AHOSE ASSY, VACUUM TRANSMITTING

main25760-27040i1CDFTV..CDE120..JPP¥2,490200110-200405

25770HOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-27030i1CDFTV..CDE120..JPP¥2,490200110-200405

25806VALVE SET, PRESSURE CONTROL

main25806-27020i1CDFTV..CDE120..JPP¥40,500200303-200405

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-27020i1CDFTV..CDE120..JPP¥5,700200110-200405

NO.2

main25860-28130i3ZZFE,4ZZFE..ZZE12#..JPP¥5,700200405

main25860-64140i1CDFTV..CDE120..JPP¥5,700200110-200405

NO.1

25861BRACKET, VACUUM SWITCHING VALVE

main25861-27020i1CDFTV..CDE120..JPP¥4,950200110-200405

NO.1

main25861-27030i1CDFTV..CDE120..JPP¥1,790200110-200405

NO.2

8405

9091012232

main90910-12232¥3,810

9151160612

main91511-60612¥110

91621J0612

main91621-J0612¥70

9163160816

main91631-60816¥160

9331915008

main93319-15008¥170

13 parts on this diagram · 4 diagrams in section
