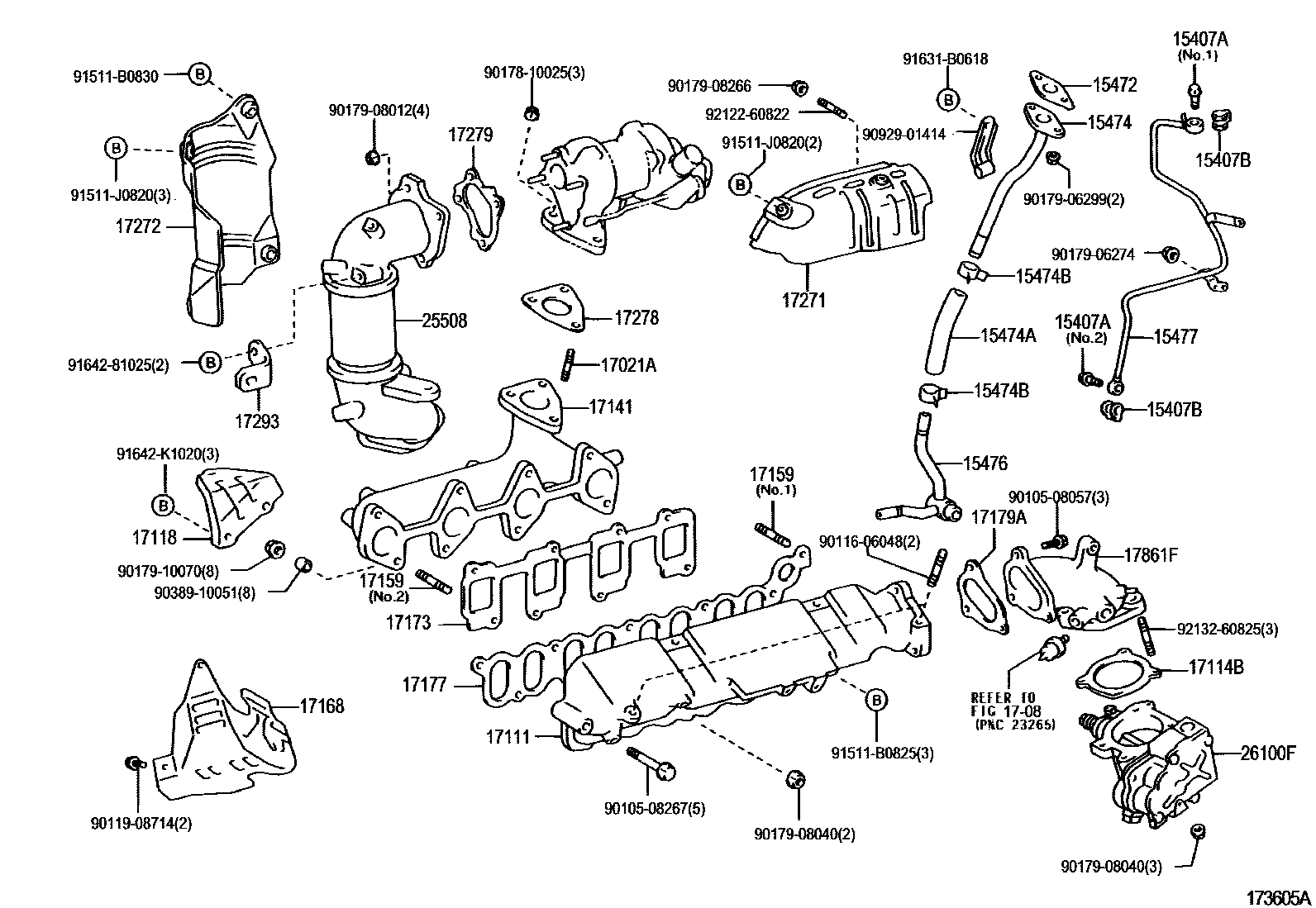

MANIFOLD
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
NO.1
NO.2
15407BGASKET(FOR TURBO OIL INLET PIPE)
15472GASKET, TURBO OIL OUTLET, NO.1
15474AHOSE, TURBO OIL OUTLET
15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
15476PIPE, TURBO OIL OUTLET, NO.2
15477PIPE, TURBO OIL INLET
17021HOUSING SUB-ASSY, BEARING
17021ABOLT, STUD(FOR BEARING HOUSING)
1708
17111MANIFOLD, INTAKE
17114BGASKET, INTAKE FLANGE
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
*114=TOYOTA/ZZ005/Y
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
NO.2
NO.2
NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17179AGASKET, INTAKE MANIFOLD, NO.2
17271INSULATOR, TURBO, NO.1
17272INSULATOR, TURBO, NO.2
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
17861FCONNECTOR, INTAKE AIR
25508CONVERTER SUB-ASSY, MANIFOLD
*115=TOYOTA/01-/N
26100FSHUTTER ASSY, INTAKE
9010508057
9010508267
9011606048
9011908714
9017810025
9017906274
9017906299
9017908012
9017908040
9017908266
9017910070
9038910051
9092901414
91511B0825
91511B0830
91511J0820
91631B0618
9164281025
91642K1020
9212260822
9213260825
49 parts on this diagram · 6 diagrams in section
