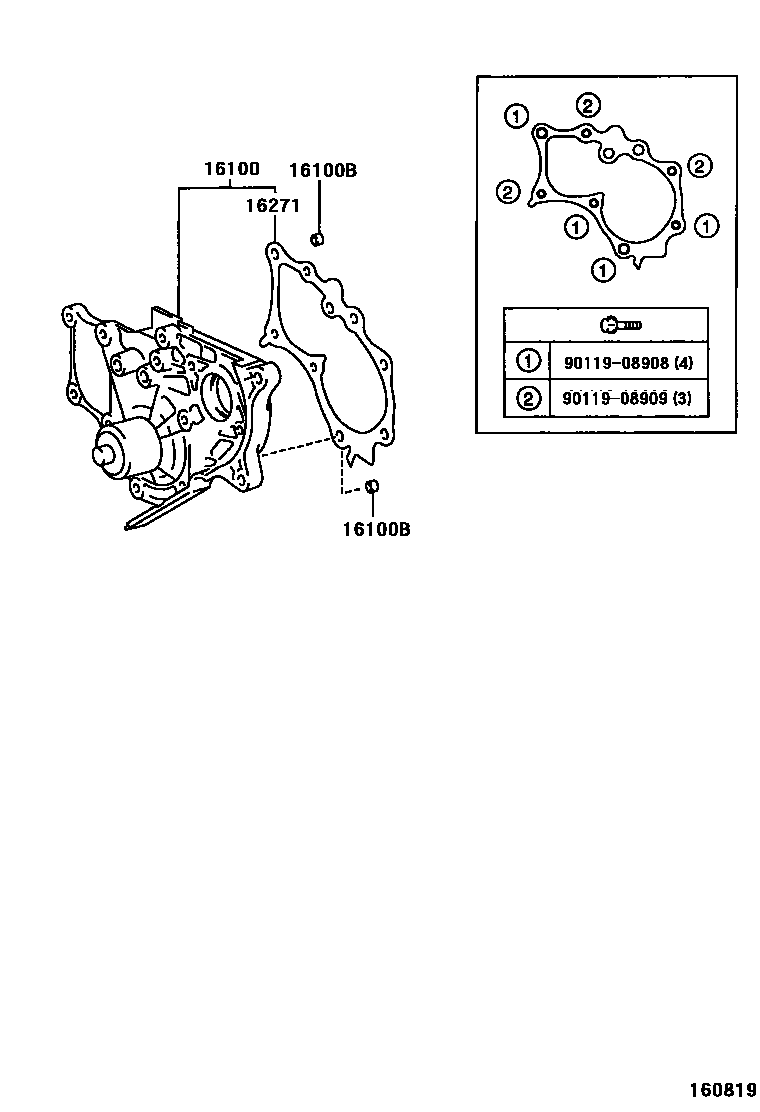

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-29095i3ZZFE,4ZZFE..ZZE12#..JPP¥8,900200110-200405

sub16100-29175¥13,000

sub91511-60622¥120

main16100-29135i1CDFTV..CDE120..JPP¥13,600200110-200405

main16100-29415i3ZZFE,4ZZFE..ZZE12#..JPP¥11,300200405

main16100-39395i1NDTV..NDE120..JPP¥11,400200408

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021i1CDFTV..CDE120..JPP¥120200110-200405

16271GASKET, WATER PUMP

main16271-27010i1CDFTV..CDE120..JPP¥620200110-200405

main16271-33020i1NDTV..NDE120..JPP¥680200408

9011908908

main90119-08908¥160

9011908909

main90119-08909¥160

5 parts on this diagram · 3 diagrams in section
