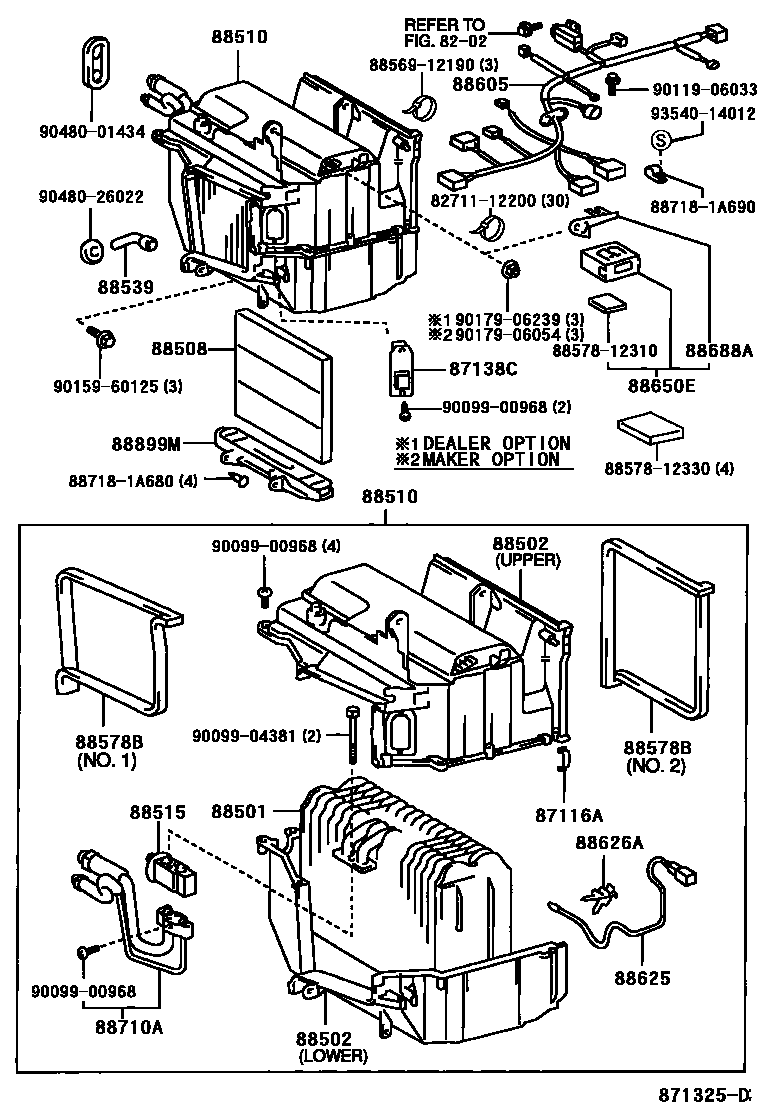

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O RING

8202

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

87138CRESISTOR, BLOWER

main87138-12140iAE11#,CE110,EE11#199704-200109

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12391iAE111,CE110,EE111..RHD199704-200107

main88501-12401iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..LHD199704-200109

88502CASE SUB-ASSY, COOLING UNIT

main88502-12190iCDE110,WZE110,ZZE11#..RHD199704-200107

UPPER

main88502-12210iAE11#,CE110,EE11#..LHD199704-200109

UPPER

main88502-12260iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..LHD199704-200109

LOWER

main88502-12270iCDE110,WZE110,ZZE11#..RHD199704-200107

LOWER

88508FILTER SUB-ASSY, CLEAN AIR

main88508-12010iEE110;AE115..SOL¥3,000199704-200107

main88508-12020iCDE110,WZE110,ZZE11#¥3,000199910-200109

88510UNIT ASSY, COOLER

main88510-1A620iAE111,CE110,EE111..RHD199704-199910

main88510-1A640iEE110;AE115..SOL199704-200107

main88510-1A690iCDE110,WZE110,ZZE11#..RHD199910-200107

main88510-1A700iCDE110,WZE110,ZZE11#..LHD199910-200109

88515VALVE, COOLER EXPANSION

main88515-20100iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥10,300199704-200109

sub88515-22240¥10,200

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12160iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

88578BPACKING, COOLING UNIT, NO.1

main88578-12470iAE111,CE110,EE111..RHD199704-199910

NO.1

main88578-12490iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..LHD199704-200109

NO.1

main88578-12510iCDE110,WZE110,ZZE11#..RHD199910-200107

NO.1

main88578-20470iAE115..SOL;ZZE11#..RHD;CDE110,EE110,WZE110199704-200109

NO.2

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1E810iEE110199704-200107

main88605-1K240iEE111..RHD199704-199910

main88605-1K250iEE111..LHD199704-199910

main88605-1K260iAE111..RHD199704-199910

main88605-1K270iAE11#..LHD199704-199910

main88605-1K280iCE110..RHD199704-199910

main88605-1K290iCE110..LHD199704-199910

main88605-1K380iZZE11#..RHD199910-200107

main88605-1K390iZZE11#..LHD199910-200109

main88605-1K400iWZE110..RHD200001-200107

main88605-1K410iWZE110..LHD200001-200107

main88605-1K420iAE115199910-200107

main88605-1K430iCDE110..RHD200008-200107

main88605-1K440iCDE110..LHD200008-200109

88625THERMISTOR, COOLER, NO.1

main88625-12240iAE115,EE110199910-200107

MAKER OPTION

main88625-12280iAE11#,CE110,EE11#199704-200109

main88625-12280iAE115199910-200107

DEALER OPTION

88626AHOLDER, THERMISTOR

main88626-28010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-1A500iEE110199704-200107

main88650-1E040iAE115199704-200107

main88650-1E050iEE111199704-199910

main88650-1E230iCE110199704-199910

main88650-1E320iCDE110,ZZE11#199910-200109

main88650-1E340iWZE110200001-200107

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-1A090iAE115,CDE110199704-200109

88710ATUBE ASSY, AIR CONDITIONER

main88710-12330iAE111,CE110,EE111..RHD¥10,800199704-199910

main88710-12340iEE110;AE115..SOL¥10,700199704-200107

main88710-12490iCDE110,WZE110,ZZE11#..RHD¥10,900199910-200107

main88710-12500iCDE110,WZE110,ZZE11#..LHD¥10,300199910-200109

88899MPLATE, COVER(FOR AIR FILTER)

main88899-12340iCDE110,WZE110,ZZE11#..RHD199704-200107

main88899-12350iAE11#,CE110,EE11#..LHD199704-200109

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

8856912190CLAMP (FOR COOLER RELAY)

main88569-12190

8857812310PAKING, COOLER AIR DUCT

main88578-12310

8857812330PAKING, COOLER AIR DUCT

main88578-12330

887181A680PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A680

887181A690PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A690

9009900968

main90099-00968

9009904381

main90099-04381

9011906033

main90119-06033¥130

9015960125

main90159-60125¥120

9017906054

main90179-06054¥100

9017906239

main90179-06239¥140

9048001434

main90480-01434

9048026022

main90480-26022¥0

9354014012

main93540-14012¥120

32 parts on this diagram · 3 diagrams in section
