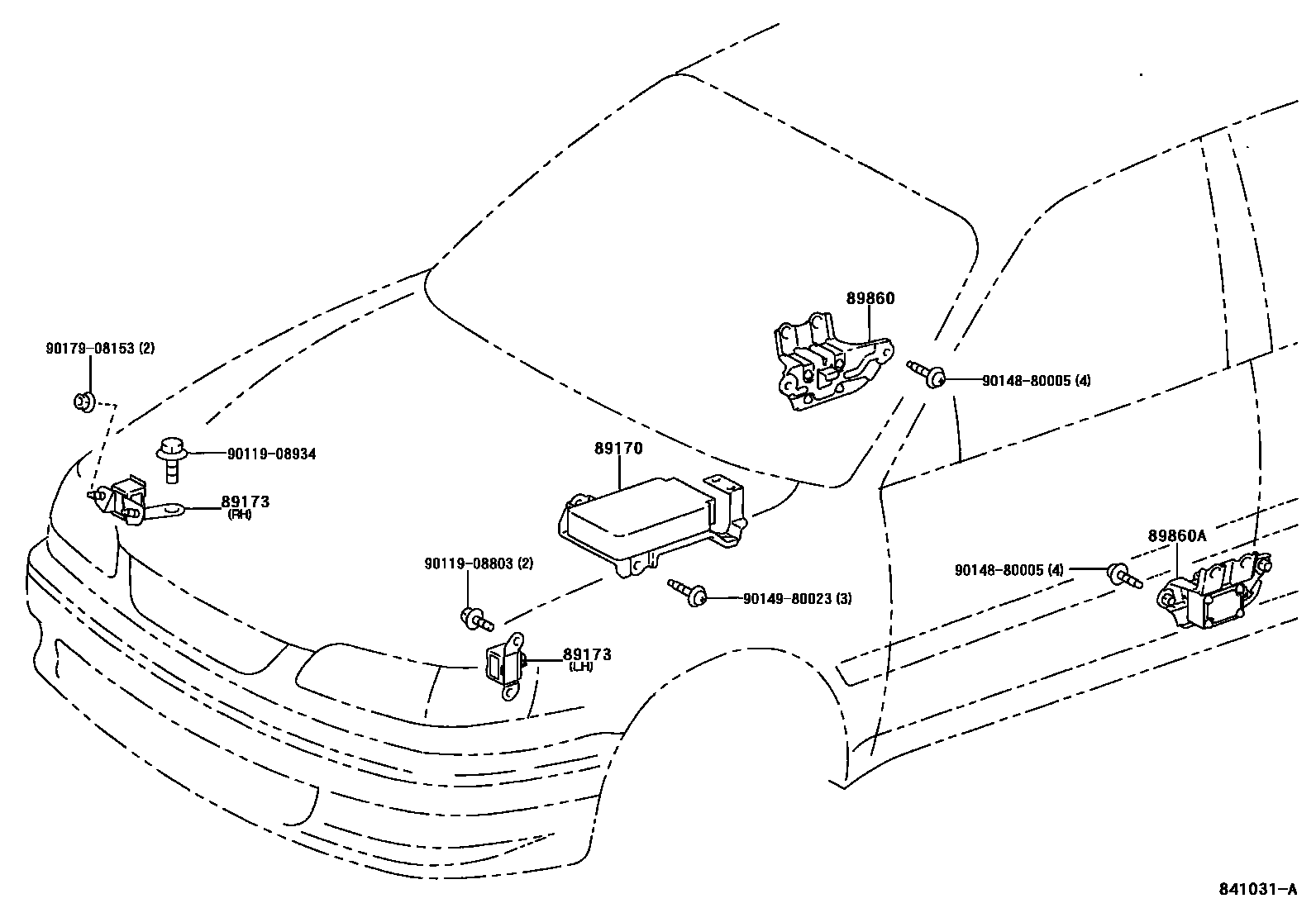

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-12070iEE110199704-199811

sub89170-12270

main89170-12080iAE11#,CE110,EE111199704-199811

*80,DRIVER SIDE & PASSENGER SIDE

sub89170-12250¥64,700

main89170-12090iAE11#,CE110,EE111199704-199910

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-12250iAE11#,CE110,EE111¥64,700199811-199910

*80,DRIVER SIDE & PASSENGER SIDE

sub89170-13020¥113,000

main89170-12270iAE11#,CE110,EE11#..LHD199811-199910

sub89170-12280

main89170-12280iAE115,CDE110,EE110,WZE110,ZZE11#..LHD199910-200109

main89170-12300iAE115,CDE110,WZE110,ZZE11#199910-200109

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-13020iWZE110,ZZE11#..RHD¥113,000199910-200107

main89170-13020iAE115,CDE110;WZE110,ZZE11#..LHD¥113,000199910-200109

*80,DRIVER SIDE & PASSENGER SIDE

89173SENSOR, AIRBAG, FRONT

main89173-19115iAE11#,CE110,EE11#¥13,300199704-200109

RH

main89173-19125iAE11#,CE110,EE11#¥13,300199704-200109

LH

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-12020iAE11#,CE110,EE111¥120,000199704-199910

main89860-12050iAE115,CDE110,WZE110,ZZE11#199910-200109

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-12020iAE11#,CE110,EE111¥24,900199704-199910

main89830-12050iAE115,CDE110,WZE110,ZZE11#199910-200109

9011908803

main90119-08803¥160

9011908934

main90119-08934¥100

9014880005

main90148-80005¥130

9014980023

main90149-80023¥120

9017908153

main90179-08153¥90

9 parts on this diagram · 1 diagram in section
