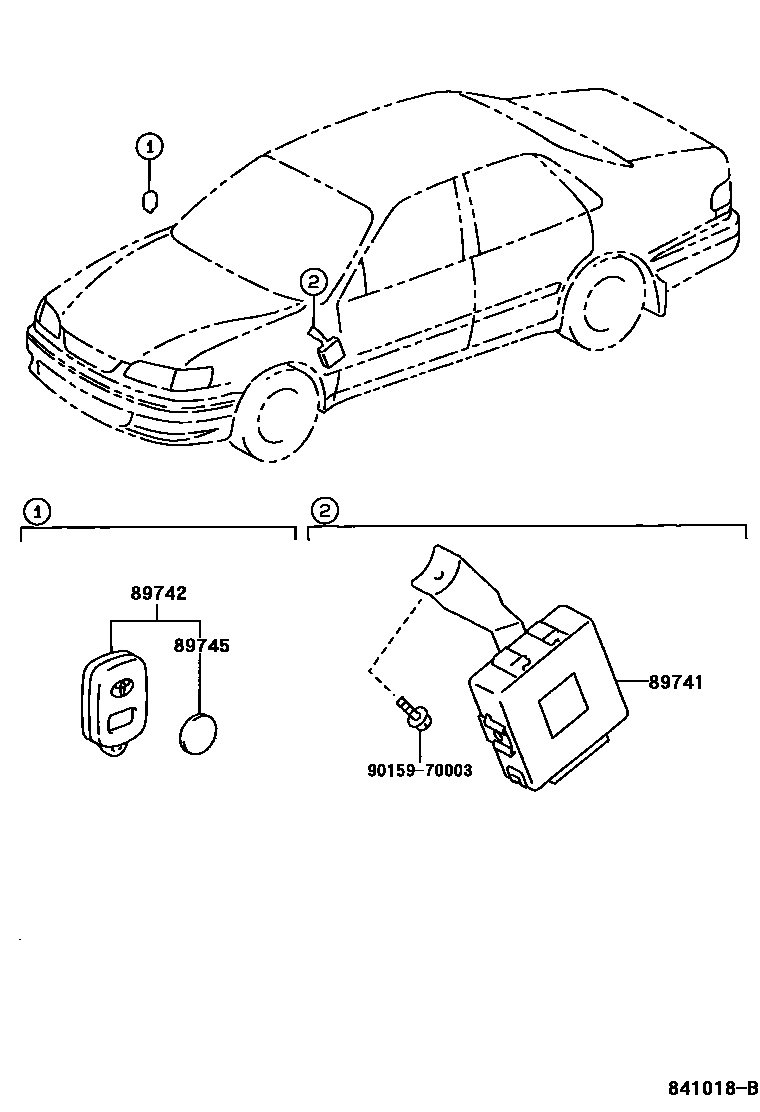

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0004 1

89741RECEIVER, DOOR CONTROL

main89741-12070iAE111,CE110,EE111..RHD199704-199910

sub89741-12071

main89741-12080iEE110199704-199910

sub89741-12081

main89741-12200iCDE110,WZE110,ZZE11#..RHD199910-200012

sub89741-12201

main89741-12201iCDE110,WZE110,ZZE11#..RHD200012-200107

main89741-12210iAE115,CDE110,EE110,WZE110,ZZE11#..LHD..(SOL,TERRA)199910-200012

sub89741-12211

main89741-12211iAE115,CDE110,EE110,WZE110,ZZE11#..LHD..(SOL,TERRA)200012-200109

89742TRANSMITTER, DOOR CONTROL

main89742-12110iAE111,CE110,EE111..RHD¥16,200199704-199910

sub89742-12111¥16,200

main89742-12120iAE11#,CE110,EE11#..LHD..(LUNA,TERRA)¥16,200199704-199910

sub89742-12111¥16,200

main89742-12130iAE11#,CE110,EE111..LHD..(LUNA,TERRA)¥16,200199704-199910

*FRG OR AUSTRIA SPEC

sub89742-12111¥16,200

main89742-12140iAE11#,CE110,EE111..LHD..(LUNA,TERRA)¥16,200199704-199910

DENMARK SPEC

sub89742-12111¥16,200

main89742-12150iAE11#,CE110,EE111..LHD..(LUNA,TERRA)¥16,200199704-199910

ICELAND,ISRAEL,FINLAND,NORWAY,SWEDEN OR SWITZERLAND SPEC

sub89742-12111¥16,200

main89742-12170iAE11#,CE110,EE111..LHD..(LUNA,TERRA)¥16,200199704-199910

EASTERN EUROPE SPEC

sub89742-12111¥16,200

89745BATTERY, TRANSMITTER

main89745-40010iCDE110,WZE110,ZZE11#..LHD..SED..(SOL,TERRA)¥440199910-200109

GERMANY SPEC

main89745-40010iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA¥440199910-200109

main89745-50010iEE110¥440199704-199910

sub89745-71010¥440

9015970003

main90159-70003¥60

4 parts on this diagram · 4 diagrams in section
