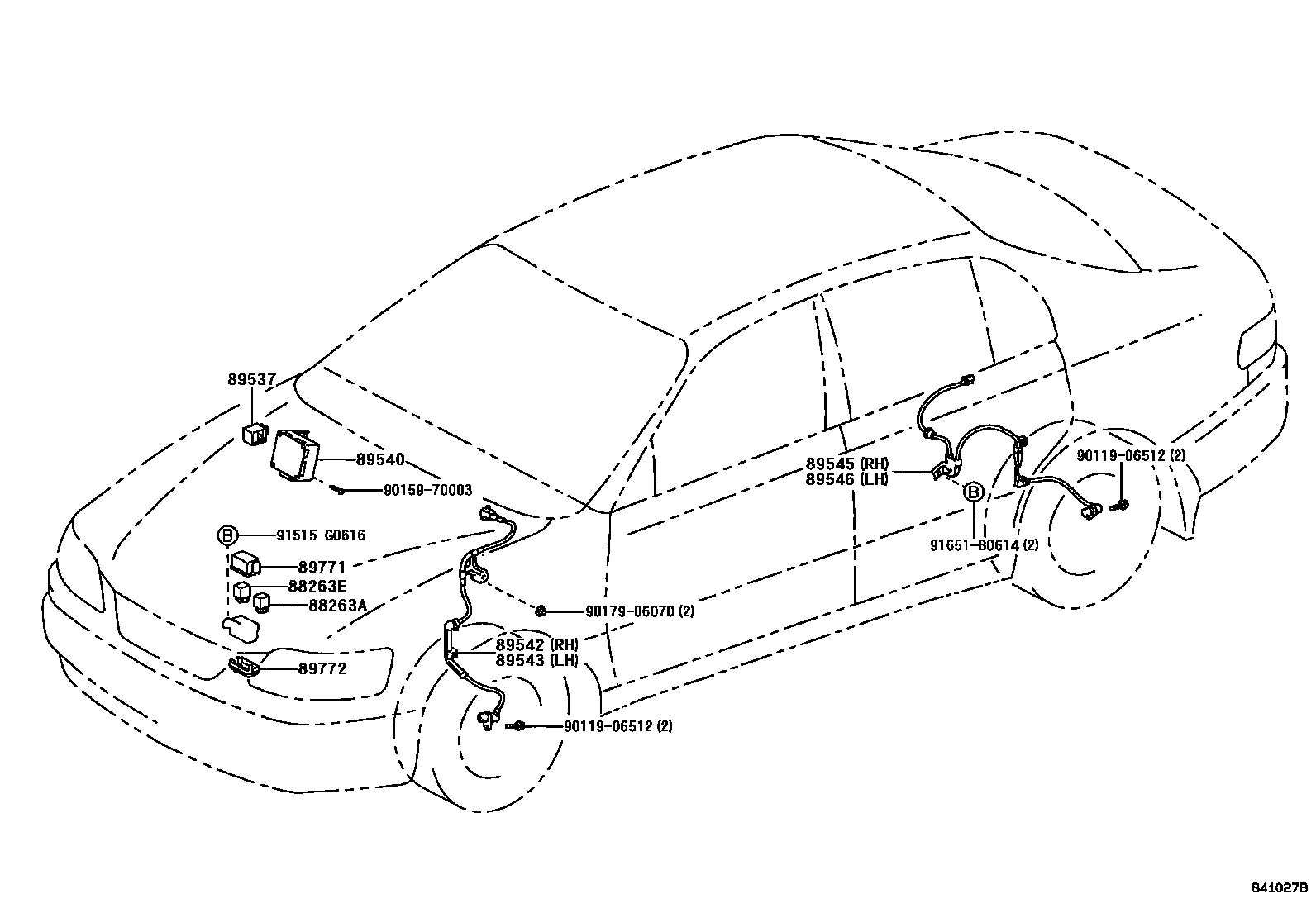

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-14110iAE11#,CE110,EE111¥3,720199704-199910

88263ERELAY, SKID CONTROL NO.2

main88263-24030iAE11#,CE110,EE111¥3,890199704-199910

89537RELAY, ACTIVE LAMP

main89537-12010iAE115,CDE110,WZE110,ZZE11#..LHD199910-200109

main89537-12020iCDE110,WZE110,ZZE11#..RHD200008-200107

89540COMPUTER ASSY, SKID CONTROL

main89540-12410iAE111,CE110,EE111..LHD¥59,900199704-199805

main89540-12420iAE111,CE110,EE111..RHD¥59,900199704-199805

main89540-12430iAE115¥59,900199704-199805

main89540-12490iAE111,CE110,EE111..LHD¥60,000199805-199910

main89540-12500iAE111,CE110,EE111..RHD¥60,000199805-199910

main89540-12510iAE115¥60,000199805-199910

89542SENSOR, SPEED, FRONT RH

main89542-12040iAE115,CDE110,WZE110,ZZE11#¥21,700199704-200109

89543SENSOR, SPEED, FRONT LH

main89543-12040iAE115,CDE110,WZE110,ZZE11#¥21,700199704-200109

89545SENSOR, SPEED, REAR RH

main89545-12030iAE115¥21,700199704-200107

main89545-12040iCDE110,WZE110,ZZE11#¥21,600199704-200109

89546SENSOR, SPEED, REAR LH

main89546-12030iAE115¥21,700199704-200107

main89546-12040iAE111,CE110,EE111¥21,600199704-200109

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iAE11#,CE110,EE111¥740199704-199910

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iAE11#,CE110,EE111¥740199704-199910

9011906512

main90119-06512¥160

9015970003

main90159-70003¥60

9017906070

main90179-06070¥180

91515G0616

main91515-G0616¥110

91651B0614

main91651-B0614¥100

15 parts on this diagram · 2 diagrams in section
