WIRING & CLAMP

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1ENGINE ROOM 0009 1COWL,INSTRUMENT 0010 1COWL,INSTRUMENT 0011 1ROOF,DOOR,FLOOR 0012 1ROOF,DOOR,FLOOR 0013 1ROOF,DOOR,FLOOR 0014 1ROOF,DOOR,FLOOR 0015 1CLAMP & BRACKET 0016 1CLAMP & BRACKET 0017 1CLAMP & BRACKET 0018 1CABLE BOND 0019 1CABLE BOND 0020 1FUSIBLE LINK REPAIR

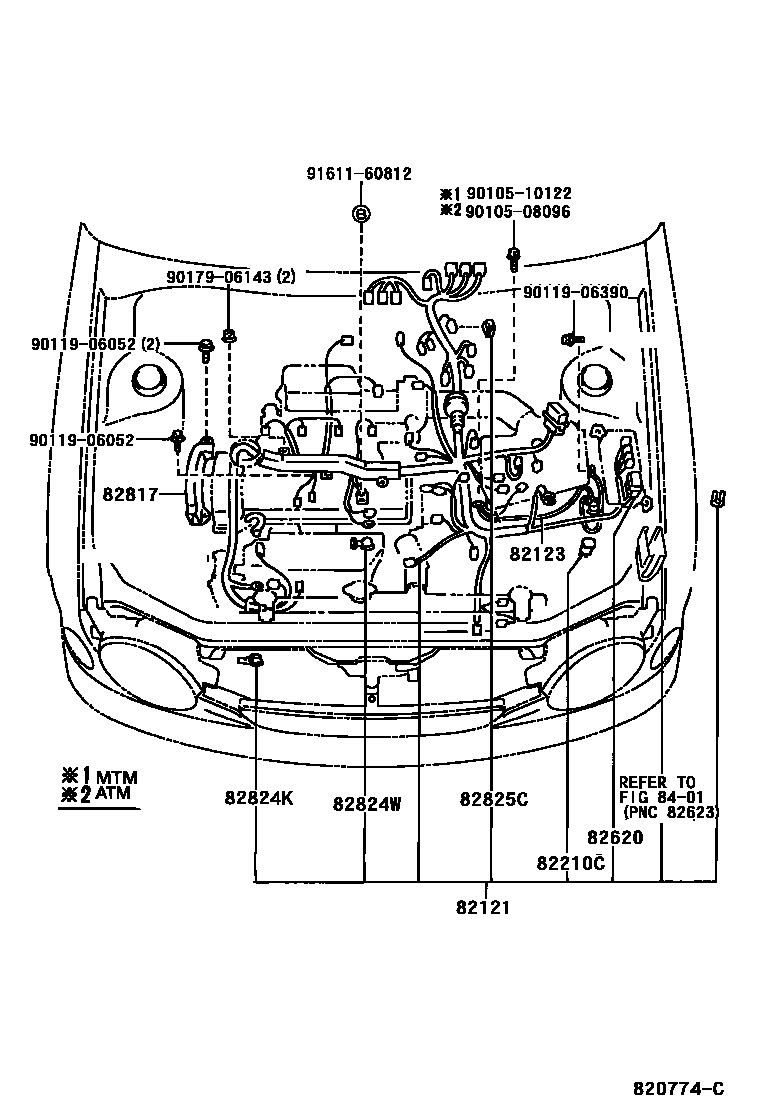

82121WIRE, ENGINE

main82121-1N410iEE111..RHD..5F199704-199804

sub82121-1T130

main82121-1N420iEE111..RHD..3FC199704-199804

sub82121-1T140

main82121-1N430iEE111..LHD..5F199704-199804

sub82121-1T150

main82121-1N440iEE111..LHD..3FC199704-199804

sub82121-1T160

main82121-1N590iAE111..RHD199704-199910

main82121-1N650iAE111..LHD..5F199704-199910

main82121-1N660iAE111..4FC199704-199910

main82121-1N750iAE115199704-199910

main82121-1N810iCE110..RHD199704-199910

main82121-1N820iCE110..LHD199704-199808

main82121-1N821iCE110..LHD199808-199910

main82121-1N870iEE110199704-200001

sub82121-1N871

main82121-1N871iEE110200001-200107

main82121-1T130iEE111..RHD..5F199804-199812

sub82121-1T131

main82121-1T131iEE111..RHD..5F199812-199910

main82121-1T140iEE111..RHD..3FC199804-199812

sub82121-1T141

main82121-1T141iEE111..RHD..3FC199812-199910

main82121-1T150iEE111..LHD..5F199804-199812

sub82121-1T151

main82121-1T151iEE111..LHD..5F199812-199910

main82121-1T160iEE111..LHD..3FC199804-199812

sub82121-1T161

main82121-1T161iEE111..LHD..3FC199812-199910

main82121-1T340iZZE111..RHD199910-200107

main82121-1T350iZZE111..LHD199910-200109

main82121-1T360iZZE112..RHD199910-200107

main82121-1T380iZZE112..LHD..5F199910-200109

main82121-1T390iZZE112..4FC199910-200109

main82121-1T400iWZE110..RHD200001-200104

main82121-1T401iWZE110..RHD200104-200107

main82121-1T410iWZE110..LHD200001-200104

main82121-1T411iWZE110..LHD200104-200107

main82121-1T420iAE115199910-200107

main82121-1T620iCDE110..RHD200008-200107

main82121-1T630iCDE110..LHD200008-200109

main82121-1T640iCDE110..LHD200008-200109

W(STOVE HEATER)

82123WIRE, ENGINE, NO.3

main82123-12310iAE115..SOL;EE110,ZZE11#199704-200109

main82123-12320iEE111..3FC199704-199910

main82123-12330iCE110199704-200109

82210CFUSIBLE LINK

main90982-08228iAE115,CDE110,WZE110,ZZE11#199704-200109

50A,TERM.:MALE,RED

main90982-08246iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

100A,TERM.:MALE,BLUE

main90982-08280iEE110;CDE110,WZE110,ZZE11#..RHD199704-200107

30A,TERM.:FEMALE,PNK

main90982-08281iAE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA199704-200109

40A,TERM.:FEMALE,GRN

main90982-08282iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

50A,TERM.:FEMALE,RED

82620BLOCK ASSY, FUSIBLE LINK

main82620-02020iAE115,CDE110,WZE110,ZZE11#199910-200109

(L)

main82620-13020iEE110199704-200107

main82620-13020iAE115,CDE110,WZE110,ZZE11#199910-200109

(J)

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A070iAE115199704-200107

82824KCONNECTOR, WIRING HARNESS

main82824-12210iCDE110,WZE110,ZZE11#..RHD199704-200107

BLACK

main82824-12210iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..LHD199704-200109

main82824-30130iAE111,CE110,EE111..RHD199704-200107

82824WCONNECTOR, WIRING HARNESS

main82824-30130iAE111..LHD;AE111..RHD..TERRA;CE110,EE11#..LUNA,TERRA199704-200109

NO.2

main82824-30130iAE111,CE110,EE111..RHD199704-200107

NO.1

82825CCONNECTOR, WIRING HARNESS

main82824-30130iAE11#,CE110,EE11#..LHD..(LUNA,TERRA)199704-200109

NO.1

main82824-30130iAE11#,CE110,EE11#..LHD..(LUNA,TERRA)199704-200109

NO.2

8401

9010508096

main90105-08096

9010510122

main90105-10122

9011906052

main90119-06052

9011906390

main90119-06390

9017906143

main90179-06143

9161160812

main91611-60812

15 parts on this diagram · 20 diagrams in section
